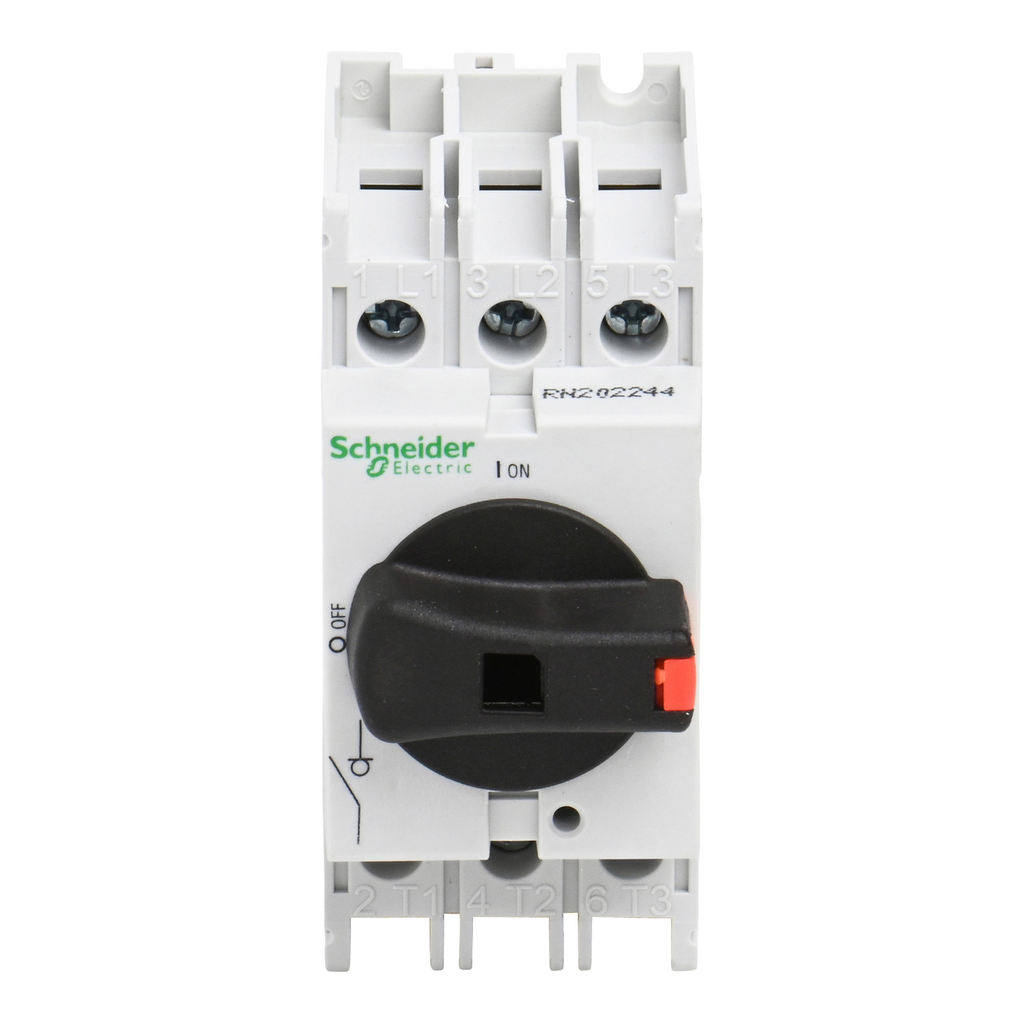

Disconnect switch, TeSys VLS, body switch, 60A, 30HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, DIN rail mount

3 POLE 63A UL508 D.S. DIN RAI

SQDVLS3P063R1 VLS3P063R1 3606481205414
94.57 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect switch, TeSys VLS, body switch, 60A, 30HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, DIN rail mount-1
  • Depth: 78 mm
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 63A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 7.5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC, a 15 HP rating at 240 VAC, a 30 HP rating at 480 VAC and a 30 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 22 kW rating at 400 V, a 22 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Specifications
  • Physical Attributes
    • Color : Gray
    • Handle Color : black
    • Handle Front Plate Color : grey
  • Complementary Attributes
    • Rated Operational Power In W : 22 kW 400 V AC-23A), 22 kW 500 V AC-23A), 22 kW 690 V AC-23A)
    • Icw Rated Short Time Withstand Current : 800 A 690 V 1 s
    • Ie Rated Operational Current : 45 A AC-22A Ue: 500 V, 45 A AC-22A Ue: 690 V, 25 A AC-23A Ue: 690 V60 A Ue: 600 V UL 508, 63 A AC-21A Ue: 400 V, 63 A AC-21A Ue: 500 V, 63 A AC-21A Ue: 690 V, 45 A AC-22A Ue: 400 V, 45 A AC-23A Ue: 400 V, 25 A AC-23A Ue: 500 V
    • Ue Rated Operational Voltage : 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
    • Uimp Rated Impulse Withstand Voltage : 8 kV
    • Rated Conditional Short Circuit Current : 50 kA 400 V 63 A gG
    • Icm Rated Short Circuit Making Capacity : 1128 A 690 V
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : switch, handle
    • Electrical Durability : 15000 cycles AC-21
    • Fire Resistance : 960 °C IEC 60695-2-11
    • Fixing Mode : by clips back
    • Making Capacity : 120 A 690 V AC-22A, 400 A 690 V AC-23A, 94.5 A 690 V AC-21A
    • Mechanical Robustness : vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
    • Mounting Support : back DIN rail
    • Rotary Handle Padlocking : 1 padlock 4-4 mm
    • Tightening Torque : power circuit 1.8-2 N.m screw clamp terminals
    • Connections Terminals : power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - without cable end
    • Icw Rated Short Time Withstand Current : 800 A 690 V 1 s
    • Ie Rated Operational Current : 45 A AC-22A Ue: 500 V, 45 A AC-22A Ue: 690 V, 25 A AC-23A Ue: 690 V60 A Ue: 600 V UL 508, 63 A AC-21A Ue: 400 V, 63 A AC-21A Ue: 500 V, 63 A AC-21A Ue: 690 V, 45 A AC-22A Ue: 400 V, 45 A AC-23A Ue: 400 V, 25 A AC-23A Ue: 500 V
    • Ith Conventional Free Air Thermal Current : 63 A (at 55 °C)
    • Certificate Agency : cULus, GL
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Device Type : LV equipment - LV switch - disconnector
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2541
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : VLS
    • Contacts Type And Composition : 3 NO
    • Control Type : rotary handle
    • Device Short Name : VLS3P
    • Energy Efficiency Optimized : False
    • Intermittent Duty Class : class 120 - 60 %
    • Marking : 0 - 1
    • Mechanical Durability : 100000 cycles
    • Network Frequency : 50/60 Hz
    • Network Type : AC
    • Performance Level : high performance
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Name : TeSys VARIO LS
    • Product Or Component Type : switch body
    • Range : TeSys
    • Returnability : Yes
    • Rotary Handle Mounting Style : direct
    • Suitability For Isolation : yes
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Handle Color : black
    • Handle Front Plate Color : grey
    • Icm Rated Short Circuit Making Capacity : 1128 A 690 V
    • Ithe Conventional Enclosed Thermal Current : 45 A
    • Warranty In Months : 18
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 75 mm
    • Width Nominal : 36 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -25-55 °C, -25-55 °C
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : switch body
  • ETIM
    • ETIM 8 : EC000216
    • ETIM 9 : EC000216
  • Specifications
    • Country of Origin : Italy, United States
    • Depth : 78 mm
