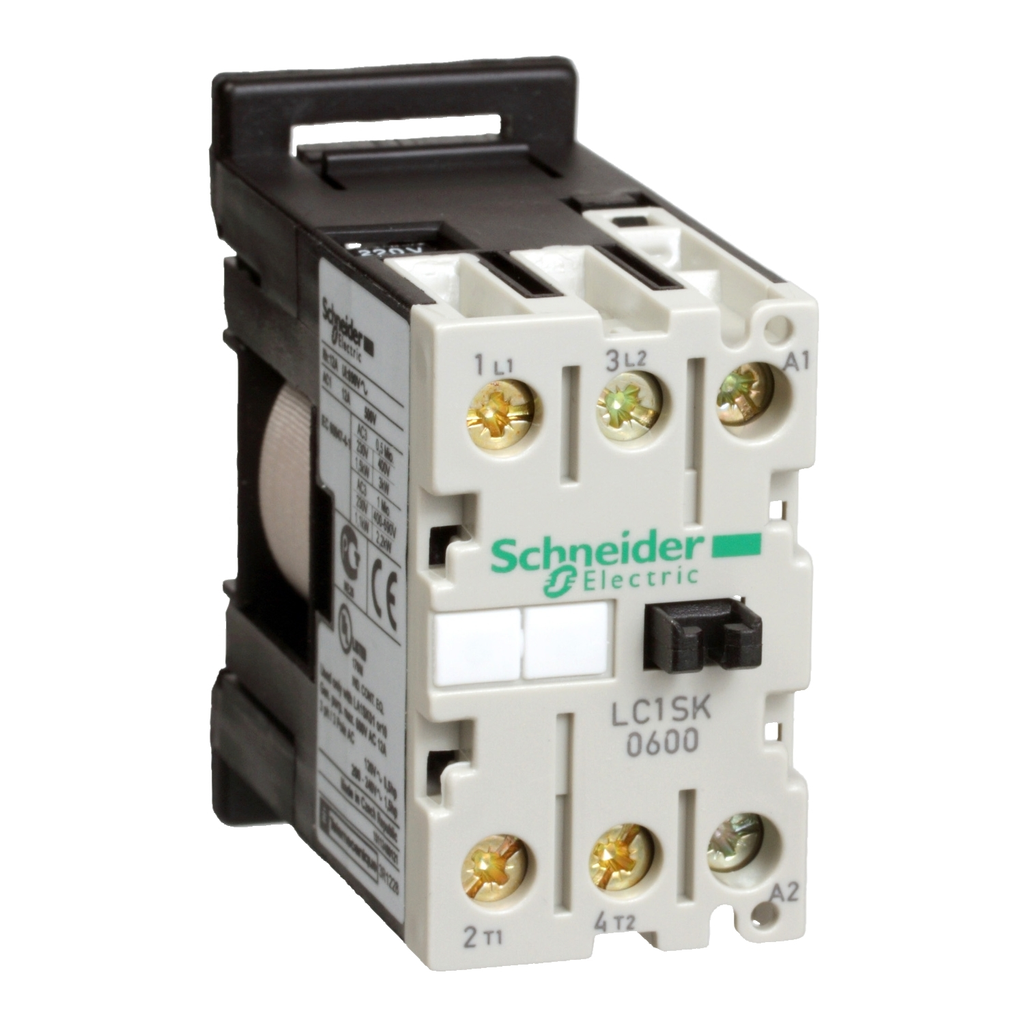

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Complementary Attributes
• Control Circuit Voltage Limits : operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)
• IRMS Rated Making Capacity : 66 A at 690 V AC conforming to IEC 60947, 66 A at 690 V AC conforming to NF C 63-110
• Rated Breaking Capacity : 52 A at <= 400 V for power circuit conforming to NF C 63-110, 52 A at <= 400 V for power circuit conforming to IEC 60947
• IE Rated Operational Current : 6 A at <= 440 V AC AC-3, 12 A (at <55 °C) AC AC-1
• UI Rated Insulation Voltage : 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
• Control Circuit Type : AC 50/60 Hz
• Maximum Operating Rate : 1200 cyc/h
• ICW Rated Short Time Withstand Current : 50 A 55 °C for power circuit
• UC Control Circuit Voltage : 240 V AC 50/60 Hz
• UE Rated Operational Voltage : power circuit 690 V AC 50/60 Hz
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contactor Application : motor control, resistive load
• Operating Time : 6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing
• Protective Treatment : TC IEC 60068, TC DIN 50015
• IE Rated Operational Current : 6 A at <= 440 V AC AC-3, 12 A (at <55 °C) AC AC-1
• Carbon Footprint Of The Distribution Phase A4 : 0.05132471286393272, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.21846388581500262
• Carbon Footprint Of The Installation Phase A5 : 0.007904081068694103, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.7152454472070074
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 52 kg CO2 eq., 52.12022202456408
• Connections Terminals : power circuit connector 1 0.35-6 mm²flexible with cable end, power circuit connector 1 0.5-6 mm²flexible without cable end, power circuit connector 1 1.5-6 mm²solid, power circuit connector 2 0.35-1.5 mm²flexible with cable end, power circuit connector 2 0.35-2.5 mm²flexible without cable end, power circuit connector 2 1.5-4 mm²solid
• Add Ons : LA4SKC1U, LA4SKE1E, LA1SK02, LA1SK11, LA1SK20
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1503003
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Associated Fuse Rating : 16 A gI at <= 440 V for power circuit conforming to IEC 60947
• Average Impedance : 4 mOhm - Ith 12 A 50 Hz
• Compatibility Code : LC1SK
• Device Short Name : LC1SK
• Energy Efficiency Optimized : False
• Heat Dissipation : 1.4-1.4 W 50/60 Hz
• Hold In Power Consumption In VA : 4.2-4.2 VA (at 20 °C)
• Inrush Power In VA : 16-16 VA (at 20 °C)
• Package Weight Lbs : 128.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : mini contactor
• Range : TeSys
• Range Of Product : TeSys SK
• Returnability : No
• Sustainable Packaging : Yes
• Tightening Torque : 0.8 N.m connector pozidriv No 1
• Total Lifecycle Carbon Footprint : 53 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ICW Rated Short Time Withstand Current : 50 A 55 °C for power circuit
• ITH Conventional Free Air Thermal Current : 12 A (at 55 °C) for power circuit
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1503003
• Pep Verification Date : 2025-11-21
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : NANNAN YAN
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 53.11316015151872
• Circularity Profile : ENVEOLI1503003
• Environmental Disclosure : ENVPEP1503003
• IP Degree Of Protection : IP2X VDE 0106
• Operating Altitude : 6561.68 ft (2000 m) without derating
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1503003
• Pep Verification Date : 2025-11-21
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : mini contactor
• Range Of Product : TeSys SK
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
