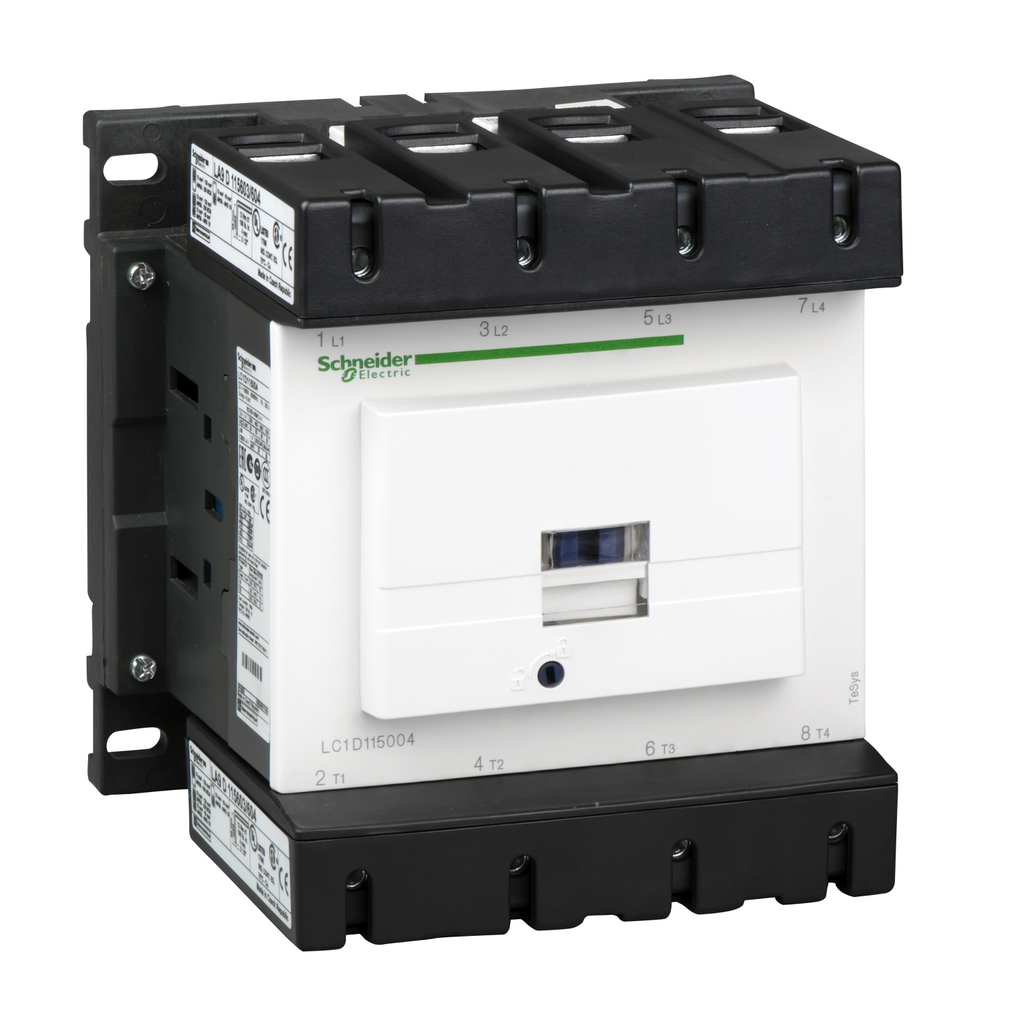

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 200A resistive load rating. Contactor is supplied with a 440 VDC coil with integral suppression device. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 6.10 inches wide and 4.53 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Environment
- Product Certifications : GL || LROS (Lloyds register of shipping) || GOST || UL || CCC || DNV || CSA || RINA || BV || UKCA
- Height : 158 mm
- Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
- Climatic Withstand : IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Net Weight : 2.86 kg
- Flame Retardance : V1 conforming to UL 94
- Protective Treatment : THIEC 60068-2-30
- Ip Degree Of Protection : IP20 front face IEC 60529
- Mechanical Robustness : vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 6 Gn for 11 ms)
- Operating Altitude : 0...9842.52 ft (0...3000 m)
- Fire Resistance : 850 °C IEC 60695-2-1
- Width : 150 mm
- Depth : 132 mm
- Permissible Ambient Air Temperature Around The Device : -40-60 °C || 60-70 °C with derating
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP060301EN
- Sustainable Offer Status : Green Premium product
- Pvc Free : Yes
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile : ENVEOLI100405EN
- Eu Rohs Directive : Compliant with Exemptions
- Complementary
- Power Dissipation Per Pole : 24 W AC-1
- Average Impedance : 0.6 mOhm - Ith 200 A 50 Hz for power circuit
- [Ith] Conventional Free Air Thermal Current : 200 A (at 60 °C) for power circuit
- Control Circuit Voltage Limits : 0.75...1.2 Uc -40-55 °C operational DC || 0.15...0.4 Uc -40-70 °C drop-out DC || 1...1.2 Uc 55-70 °C operational DC
- Mounting Support : rail || plate
- Contact Compatibility : M8
- Control Circuit Type : DC standard
- Safety Reliability Level : B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
- Pollution Degree : 3
- Hold-In Power Consumption In W : 2.4-5.1 W 20 °C
- Rated Breaking Capacity : 1100 A at 440 V for power circuit conforming to IEC 60947
- Irms Rated Making Capacity : 1260 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating : 250 A gG at <= 690 V coordination type 1 for power circuit || 200 A gG at <= 690 V coordination type 2 for power circuit
- [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947
- Pole Contact Composition : 4 NO
- Connections - Terminals : control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end || power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end
- Coil Technology : with integral suppression device
- Time Constant : 25 ms
- Operating Time : 20...35 ms closing || 40...75 ms opening
- Maximum Operating Rate : 1200 cyc/h 60 °C
- Tightening Torque : control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.m screw clamp terminals pozidriv No 2
- Electrical Durability : 0.8 Mcycles 200 A AC-1 <= 440 V
- Inrush Power In W : 270-365 W 20 °C)
- Mechanical Durability : 8 Mcycles
- Compatibility Code : LC1D
- Overvoltage Category : III
- [Ui] Rated Insulation Voltage : power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
- [Icw] Rated Short-Time Withstand Current : 250 A 40 °C - 10 min for power circuit || 550 A 40 °C - 1 min for power circuit || 950 A 40 °C - 10 s for power circuit || 1100 A 40 °C - 1 s for power circuit
- Protective Cover : with
- Specifications
- [Uc] Control Circuit Voltage : 440 V DC
- [Ue] Rated Operational Voltage : power circuit <= 1000 V AC 25...400 Hz || power circuit <= 460 V DC
- Range Of Product : TeSys Deca
- Contactor Application : resistive load
- Product Or Component Type : contactor
- Range : TeSys
- Utilisation Category : AC-1 || AC-3 || AC-3e || AC-4
- [Ie] Rated Operational Current : 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- Poles Description : 4P
- Device Short Name : LC1D
