IEC contactor, TeSys Deca, nonreversing, 125A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style, open style

CONTACTOR 575VAC 80AMP IEC +OP

SQDLC1D80008G7 LC1D80008G7 3389110265613
772.32 / EA
http://schema.org/OutOfStock
  • Country of Origin: Czechia

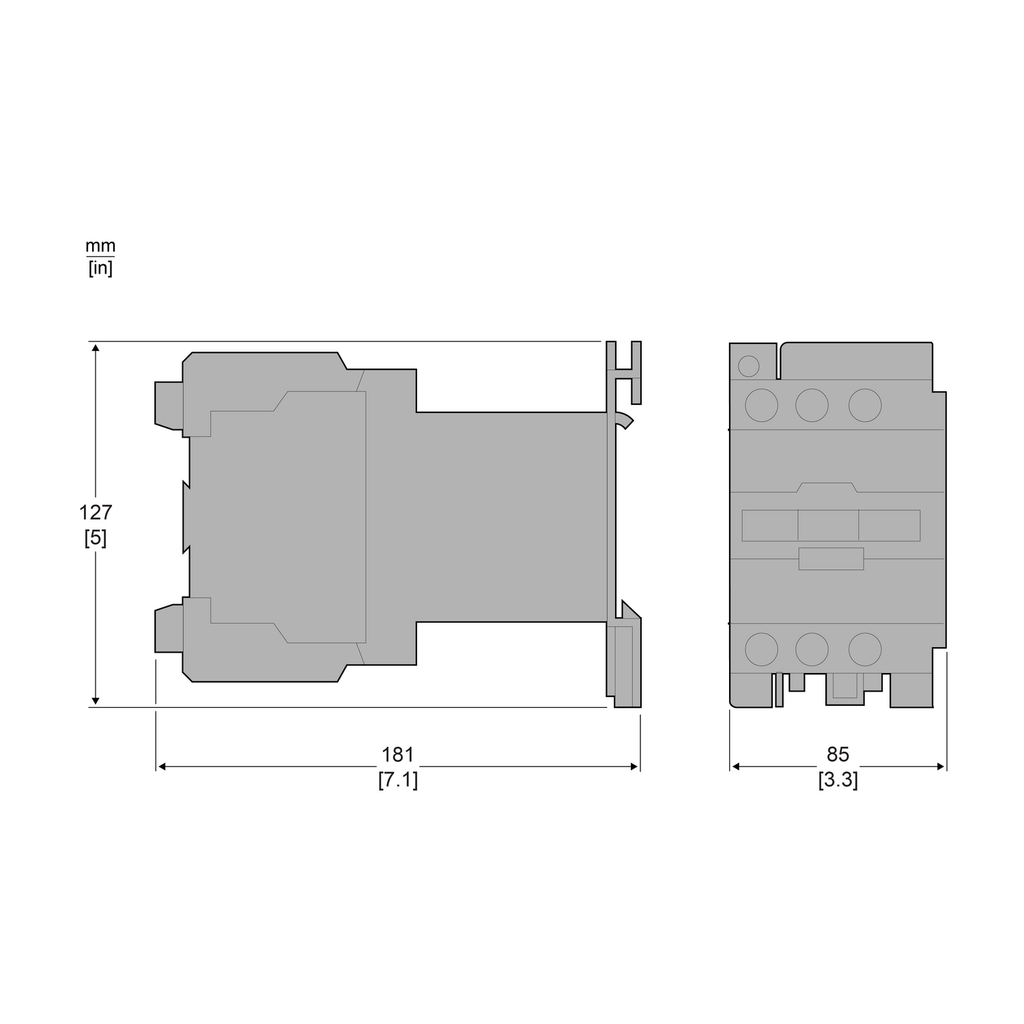

  • Depth: 5.51 in
  • Height: 5 in
  • Warranty Length: 18 mth
  • Width: 3.78 in
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applicati
QTY
  • Product Description
  • Features
  • Specifications
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applicati
  • Uc Control Circuit Voltage
    • 120 V AC 50/60 Hz
  • Heat Dissipation
    • 6-10 W at 50/60 Hz
  • Connections Terminals
    • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
    • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffne
  • Mounting Support
    • rail
    • plate
  • Uimp Rated Impulse Withstand Voltage
    • 8 kV IEC 60947
  • Climatic Withstand
    • IACS E10 exposure to damp heat
  • Power Dissipation Per Pole
    • 12.5 W AC-1
  • Maximum Operating Rate
    • 3600 cyc/h at 60 °C
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.4 kg CO2 eq.
    • 0.3541146484504795
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 4.670481955153259
    • 5 kg CO2 eq.
  • Standards
    • EN 60947-4-1
    • EN 60947-5-1
    • IEC 60947-4-1
    • IEC 60947-5-1
    • CSA C22.2 No 14
    • UL 60947-4-1
    • IEC 60335-2-40:Annex JJ
    • UL 60335-2-40:Annex JJ
    • IEC 60335-1:Clause 30.2
  • Ue Rated Operational Voltage
    • power circuit <= 690 V AC 25...400 Hz
  • Ui Rated Insulation Voltage
    • power circuit 600 V CSA
    • power circuit 600 V UL
    • power circuit 1000 V IEC 60947-4-1
  • Operating Time
    • 20...35 ms closing
    • 6...20 ms opening
  • Control Circuit Type
    • AC 50/60 Hz
  • Ip Degree Of Protection
    • IP20 front face IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 13 kg CO2 eq.
    • 12.519404112267281
  • Protective Treatment
    • THIEC 60068-2-30
  • Average Impedance
    • 0.8 mOhm - Ith 125 A 50 Hz for power circuit
  • Electrical Durability
    • 0.8 Mcycles 125 A AC-1 <= 440 V
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Fire Resistance
    • 850 °C IEC 60695-2-1
  • Flame Retardance
    • V1 conforming to UL 94
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 132 kg CO2 eq.
    • 131.6902173913043
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Auxiliaries
    • LADN22
    • LADN11
    • LADN20
    • LAD8N11
    • LADT2
    • LADN40
    • LADN31
    • LADN02
    • LADT0
    • LAD8N20
  • Safety Reliability Level
    • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
    • B10d = 1369863 cycles contactor with nominal load EN/ISO 13
  • Carbon Footprint Of The Distribution Phase A4
    • 0.24697464924060986
    • 0.2 kg CO2 eq.
  • Tightening Torque
    • control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm
    • control circuit 1.2 N.
  • Ith Conventional Free Air Thermal Current
    • 125 A (at 60 °C) for power circuit
  • Irms Rated Making Capacity
    • 1100 A at 440 V for power circuit conforming to IEC 60947
  • Mechanical Robustness
    • vibrations contactor open 2 Gn, 5...300 Hz)
    • shocks contactor open 8 Gn for 11 ms)
    • vibratio
  • Control Circuit Voltage Limits
    • 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz
    • 0.3...0.6 Uc (-40-5
  • Ie Rated Operational Current
    • 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
    • 125 A (at <60 °C) at <= 10
  • Icw Rated Short Time Withstand Current
    • 640 A 40 °C - 10 s for power circuit
    • 990 A 40 °C - 1 s for power circuit
    • 990 A 40 °C - 1 s for power circui
  • Hold In Power Consumption In Va
    • 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
    • 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
    • 26-26 VA 50 Hz cos phi 0.3
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Inrush Power In Va
    • 245-245 VA 60 Hz cos phi 0.75 (at 20 °C)
    • 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
    • 245-245
  • Associated Fuse Rating
    • 200 A gG at <= 690 V coordination type 1 for power circuit
    • 200 A gG at <= 690
  • Permissible Ambient Air Temperature Around The Device
    • -40-60 °C
    • 60-70 °C with derating
  • Rated Breaking Capacity
    • 1100 A at 440 V for power circuit conforming to IEC 60947
  • Product Certifications
    • CCC
    • UL
    • CB Scheme
    • CSA
    • CE
    • UKCA
    • Marine
    • EAC
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • ETIM 10 : EC000066
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 12.5194041122673
    • Distribution Carbon Footprint : 0.24697464924061
    • Installation Carbon Footprint : 0.35411464845048
    • Use Carbon Footprint : 131.690217391304
    • End Of Life Carbon Footprint : 4.67048195515326
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1924
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Coil Technology : without built-in suppressor module
    • Compatibility Code : LC1D
    • Contact Compatibility : M1
    • Contactor Application : resistive load
    • Device Short Name : LC1D
    • Mechanical Durability : 4 Mcycles
    • Overvoltage Category : III
    • Package Weight Lbs : 1.785 kg
    • Pole Contact Composition : 2 NO + 2 NC
    • Poles Description : 4P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range : TeSys
    • Range Of Product : TeSys Deca
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 149 kg CO2 eq.
    • Utilisation Category : AC-1
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 149.4811927564159
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : contactor
    • Range Of Product : TeSys Deca
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=4049601&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 149.481192756416
    • Environmental Disclosure : ENVPEP110205EN
    • Eu Rohs Directive : Compliant
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
    • Height : 5 in
    • Width : 3.78 in
    • Depth : 5.51 in
