synchronous motor - BMP - 480 VAC - 1.5 kW - IP65 - IEC

100MM,2STACK,1500/3000RPM,200

SQDBMP1002F3NA2A BMP1002F3NA2A 3606480564444
1320.98 / EA
http://schema.org/OutOfStock

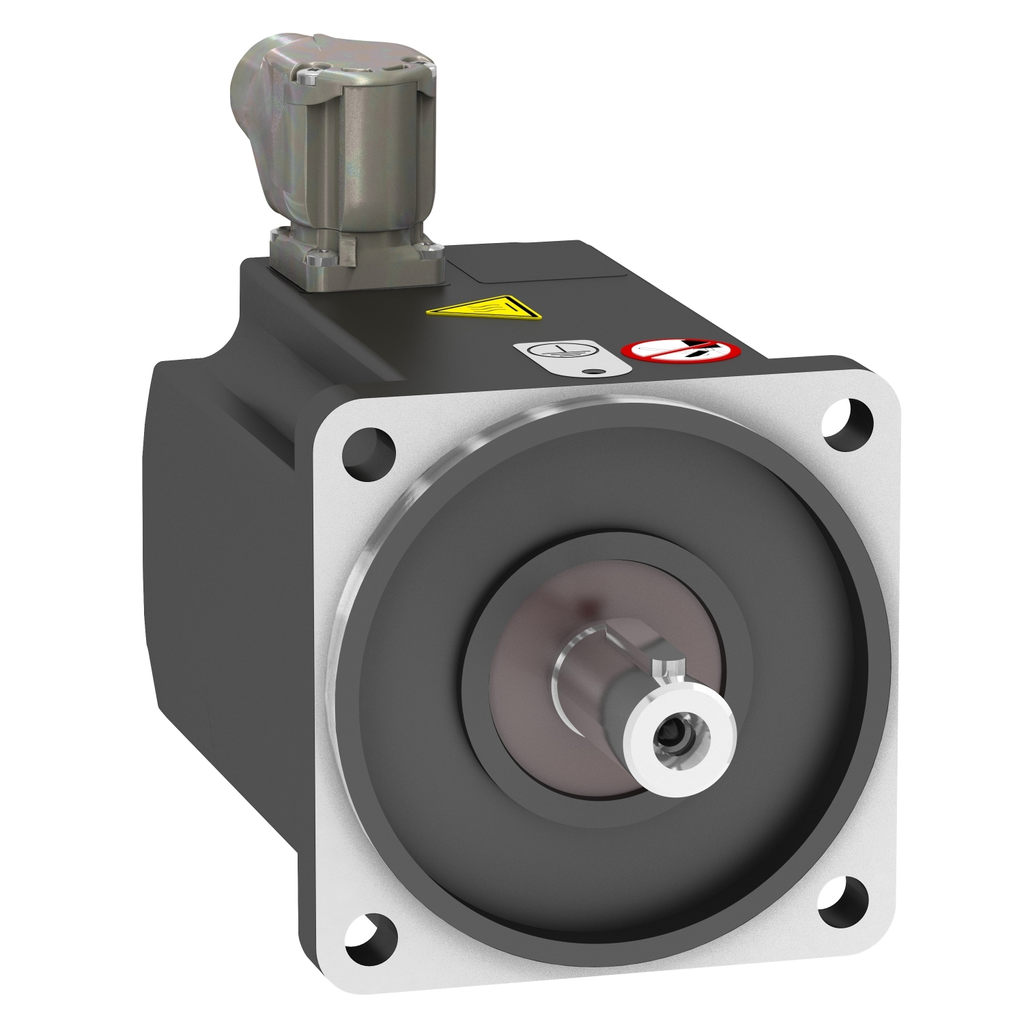

Mayer-DDS-synchronous motor - BMP - 480 VAC - 1.5 kW - IP65 - IEC-1
  • Country of Origin: Germany
  • Shaft Diameter: 19 mm
  • Shaft End: Keyed
  • Shaft Length: 40 mm
  • Warranty Length: 18 mth
This AC synchronous motor is an option for variable speed drives of Altivar range. It is compatible with with 200/400 VAC supply voltage drives. This motor has a medium moment of inertia. It is designed with a 100mm flange and 2 stacks. Its nominal power is 1.5kW and run at 1500/3000 rpm. It features a 90° angular connector. It weighs 4.92 kg, and its dimensions are 212.1 mm (6.32 in) in length, 139.5 mm in height, and 100 mm in width. It conforms to the UL standard. The AC motor is compatible with ATV32HU15N4 and ATV320U15N4 drives and its IP67 kit. The allowed mounting positions are IM B5, IM V1, and IM V3.
QTY
  • Product Description
  • Features
  • Specifications
This AC synchronous motor is an option for variable speed drives of Altivar range. It is compatible with with 200/400 VAC supply voltage drives. This motor has a medium moment of inertia. It is designed with a 100mm flange and 2 stacks. Its nominal power is 1.5kW and run at 1500/3000 rpm. It features a 90° angular connector. It weighs 4.92 kg, and its dimensions are 212.1 mm (6.32 in) in length, 139.5 mm in height, and 100 mm in width. It conforms to the UL standard. The AC motor is compatible with ATV32HU15N4 and ATV320U15N4 drives and its IP67 kit. The allowed mounting positions are IM B5, IM V1, and IM V3.
  • Minimum Operating Frequency
    • 25 Hz ATV32 1.5 kW 400 V three phase
    • 25 Hz ATV320 1.5 kW 400 V three phase
  • Nominal Speed
    • 3000 rpm ATV32 1.5 kW 400 V three phase
    • 3000 rpm ATV320 1.5 kW 400 V three phase
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_rear.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_rear.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_2D_top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMP1002x3NA2A_3D-simpl&p_File_name=BMP1002x3NA2A_3D-simpl.stp
  • Maximum Operating Frequency
    • 300 Hz ATV32 1.5 kW 400 V three phase
    • 300 Hz ATV320 1.5 kW 400 V three phase
  • Nominal Operating Frequency
    • 250 Hz ATV32 1.5 kW 400 V three phase
    • 250 Hz ATV320 1.5 kW 400 V three phase
  • IP Degree Of Protection
    • IP65 standard
    • IP67 with IP67 kit
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Nominal Output Power
    • 1500 W ATV32 1.5 kW 400 V three phase
    • 1500 W ATV320 1.5 kW 400 V three phase
  • Stator Resistance
    • 1.75 Ohm 40 °C
  • Maximum Radial Force FR
    • 990 N 1000 rpm
    • 790 N 2000 rpm
    • 690 N 3000 rpm
    • 620 N 4000 rpm
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Stator Inductance
    • 7.65 mH for q-axis winding 40 °C
    • 6.64 mH for d-axis winding 40 °C
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Nominal Torque
    • 4.77 N.m ATV32 1.5 kW 400 V three phase
    • 4.77 N.m ATV320 1.5 kW 400 V three phase
  • Torque Constant
    • 1.56 N.m/A 40 °C
  • Product Compatibility
    • variable speed drive ATV32 1.5 kW 400 V three phase
    • variable speed drive ATV320 1.5 kW 380...500 V three phase
  • Maximum Current IRMS
    • 6.2 A ATV32 1.5 kW 400 V three phase
    • 6.2 A ATV320 1.5 kW 400 V three phase
  • Physical Attributes
    • Key Width : 6 mm
    • Motor Flange Size : 100 mm
    • Shaft Length : 40 mm
  • Complementary Attributes
    • Maximum Mechanical Speed : 3600 rpm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Centring Collar Diameter : 95 mm
    • Circle Diameter Of The Mounting Holes : 115-115 mm
    • Device Short Name : BMP
    • Holding Brake : without
    • Mounting Holes Diameter : 9 mm
    • Number Of Motor Poles : 5
    • Number Of Motor Stacks : 2
    • Package Weight Lbs : 5.904 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : synchronous motor
    • Returnability : No
    • Rotor Inertia : 6.28 kg.cm²
    • Shaft Diameter : 19 mm
    • Shaft End : keyed
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP111049EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : synchronous motor
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=403615849&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111049EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111049EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Germany
