network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s

ETHERNET/IP NIM STANDARD

SQDSTBNIC2212 STBNIC2212 3595863987812
575.41 / EA
http://schema.org/OutOfStock

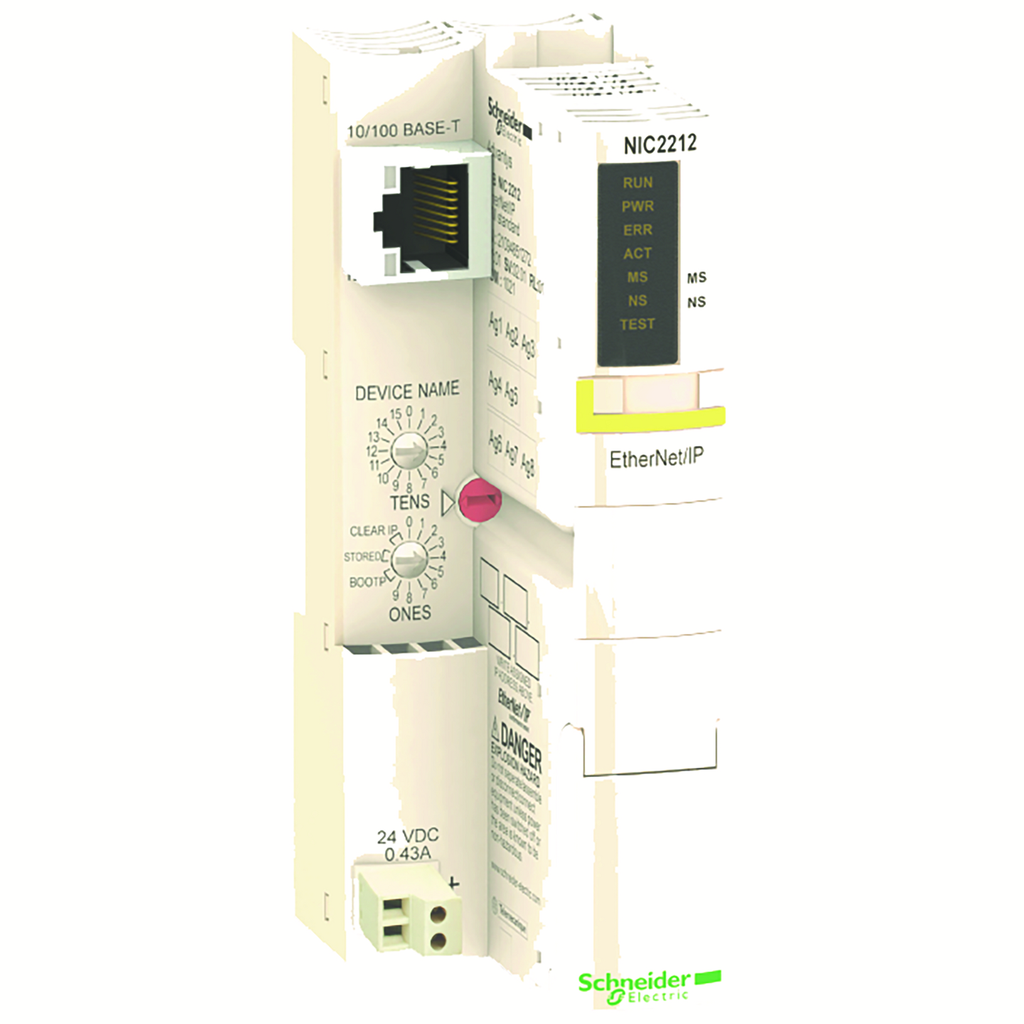

Mayer-DDS-network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s-1
  • Country of Origin: France
  • Warranty Length: 18 mth
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Accessories
    • 490NTW00002U
    • TCSECE3M3M1S4
  • Vibration Resistance
    • 3 gn 58-150 Hz) on 35 mm DIN rail
    • 5 gn 58-150 Hz) on 35 mm DIN rail
    • +/-0.35 mm 10-58 Hz)
  • Persona Type Names
    • End User
    • OEM - Control Panelbuilder
    • System Integrator
  • Relative Humidity
    • 95-95 % 60-60 °C without condensation
  • Persona Type Ids
    • EU
    • OM8
    • SI
  • Shock Resistance
    • 30 gn 11 msIEC 88 reference 2-27
  • Ambient Air Temperature For Operation
    • 0-60 °C without derating
    • -25-70 °C with derating factor
  • Product Certifications
    • UL
    • ODVA
    • C-tick
    • CSA
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : Standard Network Interface Module STB, Ethernet/IP, 10...100 Mbit/s
    • Manufacturer : Schneider Electric
    • Device Type : Automation - Distributed inputs/ouputs
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2023
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Bearing Track Assembly Possible : true
    • Front Installation Possible : false
    • IO Link Master Present : false
    • Network Type : DC
    • Number Of Hw Interfaces Industrial Ethernet : 0
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 0
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Hw Interfaces Wireless : 0
    • Package Weight Lbs : 165.000 g
    • Power Supply Type : SELV
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : standard Network Interface Module
    • Rack Assembly Possible : true
    • Radio Standard Bluetooth : false
    • Radio Standard GPRS : false
    • Radio Standard GSM : false
    • Radio Standard UMTS : false
    • Range Of Product : Modicon STB distributed I/O solution
    • Returnability : No
    • Suitable For Safety Functions : true
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : false
    • Sustainable Packaging : No
    • Wall Mounting Direct Mounting Possible : false
    • Relationship Type : Compatible relationship
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • DC Supply Voltage : 24-24 V
    • Radio Standard Wi Fi 802 11 : false
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP080803EN
    • Nbr Of Units In Pkg : 1
    • Number Of Hw Interfaces Can : 0
    • Performance Level According To En Iso 13849 1 : none
    • Potential Separation Present : true
    • Radio Standard Egprs : false
    • Radio Standard Lte : false
    • System Accessory : true
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : standard Network Interface Module
    • Range Of Product : Modicon STB distributed I/O solution
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=697504&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Storage : -40-85 °C
    • Environmental Disclosure : ENVPEP080803EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP080803EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
