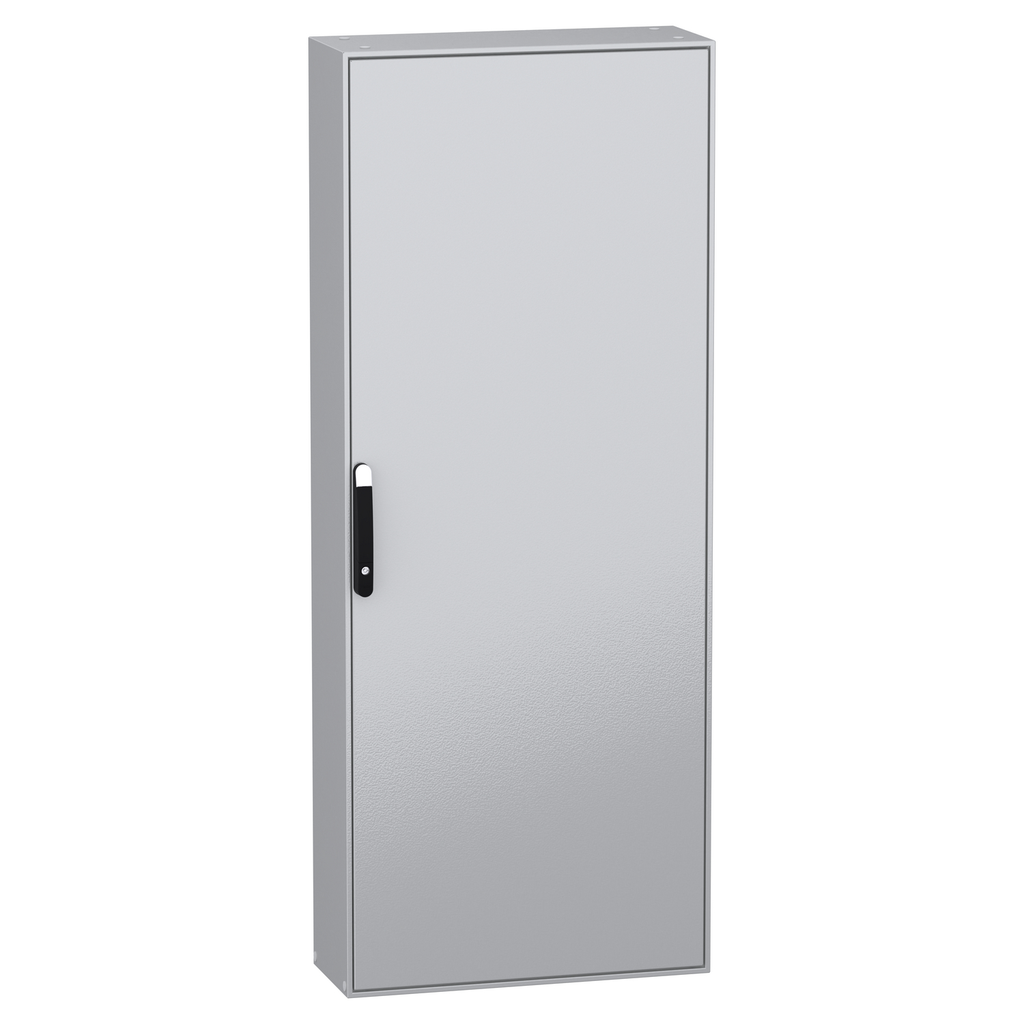

Spacial SM monobloc compact steel enclosure with plain front door. 2000 x 800 x 300 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

• Physical Attributes
• Color : enclosure Gray RAL 7035), handle Black RAL 9005)
• Enclosure Nominal Height : 2000 mm
• Enclosure Nominal Width : 800 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Body Type : single piece body with welded rear panel, front part forming a rigid frame with welded corners
• Device Composition : 1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate bracket, 1 mounting plate, 1 door
• Material : mounting plate galvanised steel, body sheet steel, door sheet steel, hinge zamak
• Number Of Doors : front 1
• Removable Parts : door by screws hinge, mounting plate by screws mounting plate bracket, mounting plate bracket by screws
• Surface Finish : epoxy-polyester powder
• Carbon Footprint Of The Distribution Phase A4 : 223.94492918680515, 224 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 278 kg CO2 eq., 277.59419715587285
• Carbon Footprint Of The Installation Phase A5 : 17.28614257455809, 17 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 253 kg CO2 eq., 253.18505238265797
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Certificate Agency : BV, DNV, UL
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1912
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Cable Entry : 1 entry
• Coverage : Core product
• Device Application : multi-purpose
• Door Opening Side : reversible 120 °)
• Door Type : Solid
• Energy Efficiency Optimized : False
• Lock Type : 4 points lock, handle with 5 mm double bar insert
• Mounting Plate Description : plain
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Name : PanelSeT SM
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Returnability : No
• Software Version : v6.2.2
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 772 kg CO2 eq.
• Type Of Gland Plate : standard
• Warranty In Months : 18
• Pep Code : ENVPEP2501030_V1
• Database Version : 2024-01
• Pep Verification Date : 2025-02-10
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Spain, ES
• Energy Model - Installation [A5] : Electricity origin
• Energy Model - Use [B6] : Electricity origin
• Energy Model - End Of Life [C1-c4] : Electricity origin
• Recyclability Potential, In % : 89
• Offer Owner Code : 190789
• Pn : 1
• Environment Attributes Main
• Ip Degree Of Protection : IP55 IEC 60529
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 772.010321299894
• Environmental Disclosure : ENVPEP2501030_V1
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2501030_V1
• Pep Verification Date : 2025-02-10
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compact enclosure
• ETIM
• ETIM 8 : EC000261
• ETIM 9 : EC000261
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
