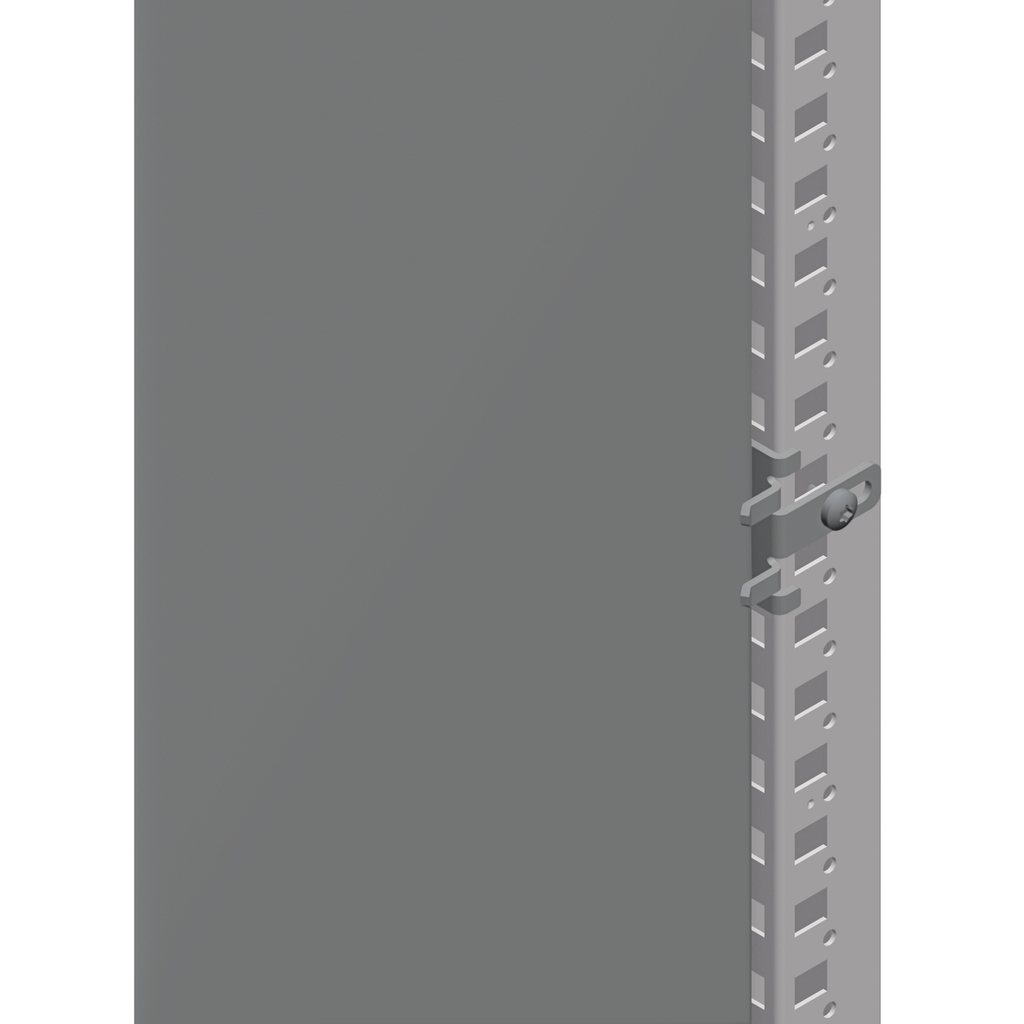

This is and intermediate fixing of the mounting plate, located in the back of the enclosure. The product is suitable for PanelSeT SFN, PanelSeT SF/SFX and PanelSeT SM electrical enclosures. It brings an aditional support when fixing of the mounting plate, at any height of the plate when the plate is mounted in the back of the enclosure. The supports minimize the vibration of the plate during the transport and operation of the panel. The product is made of zinc-coated steel. For PanelSeT SFN and PanelSeT SF/SFX the supports are fixed to the structure when the plate is already located in the back of the enclosure. In case of PanelSeT SM, the supports are fixed on light cross-rails or on 40 mm (one row) universal or on quick-fixing cross-rails. The cross rails are not supplied. The set contains ten units and fixing elements. To be ordered by multiples of 10.

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 support, fixing elements
• Enclosure Nominal Dimensions : -, -
• Carbon Footprint Of The Distribution Phase A4 : 0.011549897, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.141050856
• Carbon Footprint Of The Installation Phase A5 : 0.01330404, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.260707108
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-11
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Adjustment : at any height of the mounting plate
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element
• Material : steel
• Mounting Location : on back side of enclosure
• Product Availability : Stock - Normally stocked in distribution facility
• Product Destination : for mounting plate
• Product Or Component Type : intermediate support
• Quantity Per Set : set of 10
• Range : PanelSeT
• Returnability : Yes
• Software Version : v5.9.4
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
• Accessory Separate Part Category : mounting accessory
• Warranty In Months : 18
• Pep Code : ENVPEP1109023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 60
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential In 2 : 98
• Offer Owner Code : 190789
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.426611901
• Environmental Disclosure : ENVPEP1109023EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : intermediate support
• ETIM
• ETIM 8 : EC002620
• ETIM 9 : EC002620
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
