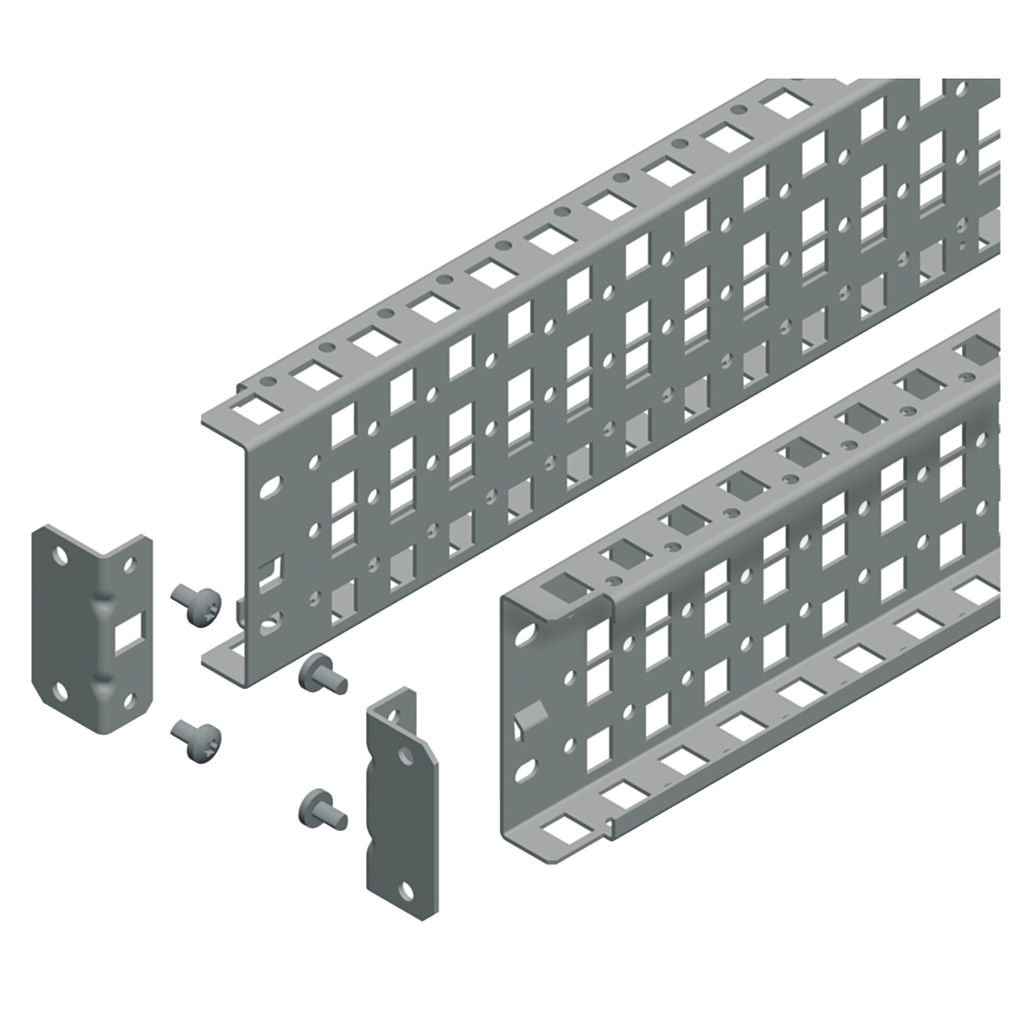

This set of two universal cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 90 mm and a nominal length of 90 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

• Complementary Attributes
• Maximum Load : 100 kg
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements, 2 cross rails, 4 supports
• Enclosure Nominal Dimensions : - H: 800 mm, - H: 800 mm, - H: 800 mm, - H: 800 mm
• Mounting Location : between cross rails, on structure of enclosure
• Carbon Footprint Of The Distribution Phase A4 : 0.420031258, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 5 kg CO2 eq., 5.129549472
• Carbon Footprint Of The Installation Phase A5 : 0.483823573, 0.5 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 9.481048492
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-15
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Adjustment : adjustable with a pitch of 25 mm
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Fixing Mode : by screws
• Material : steel
• Mounting Support : adaptation profile, on SM enclosures
• Number Of Horizontal Rows : 3
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : universal cross rail
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : Yes
• Software Version : v5.9.4
• Surface Finish : galvanized
• Sustainable Packaging : No
• Thickness : 1.5 mm
• Total Lifecycle Carbon Footprint : 16 kg CO2 eq.
• Accessory Separate Part Category : mounting accessory
• Silicone Free : No
• Warranty In Months : 18
• Pep Code : ENVPEP1109023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential In 2 : 98
• Offer Owner Code : 190789
• Pn : 1
• Height Nominal : nominal: 800 mm
• Height Useful : useful: 707 mm
• Width Nominal : 90 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 15.51445279
• Environmental Disclosure : ENVPEP1109023EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : universal cross rail
• ETIM
• ETIM 8 : EC002620
• ETIM 9 : EC002620
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 27.83 in
• Country of Origin : Brazil, Egypt, Spain, India, United States
• Depth : 27 mm
