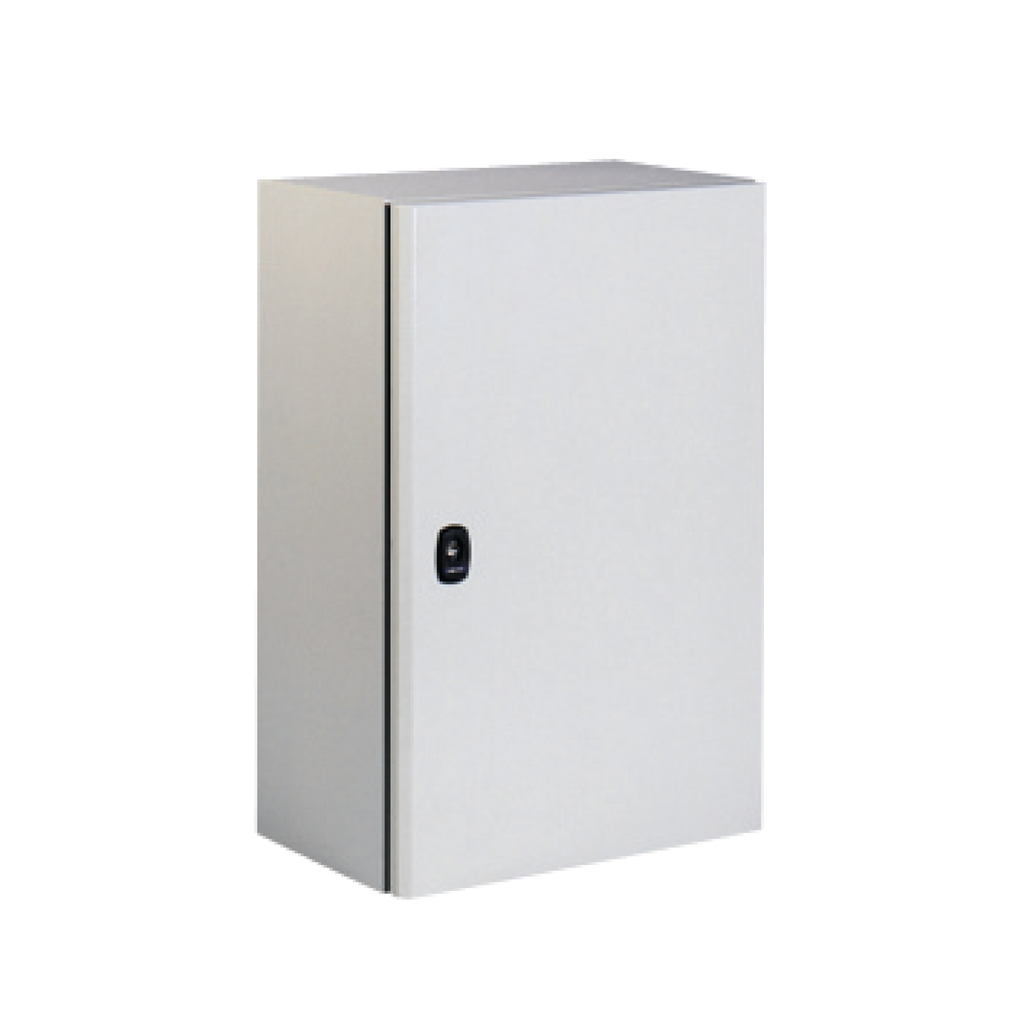

Spacial S3D wall mounted steel enclosure with plain door. 1200 x 1000 x 300 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, I

• IP Degree Of Protection
• IP66 IEC 60529
• Carbon Footprint Of The Installation Phase A5
• 14.480752796023815
• 14 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 173 kg CO2 eq.
• 173.15528015453998
• Standards
• IEC 62208
• UL
• cUL
• Material
• enclosure steel
• mounting plate galvanised steel
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 359 kg CO2 eq.
• 358.8708837848534
• Number Of Doors
• front face 1
• Removable Parts
• door by hinges
• cable gland plate by screws
• mounting plate by fixing element
• Accessories
• NSYAEFPFSC
• NSYAEFAHLBSC
• NSYEL166D8
• NSYTJ10030
• NSYAELYTCRG8
• NSYSPF10200
• NSYINLCRN
• NSYAEDH120S3D
• NSYAEDL1242S3D
• NSYMR1210
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 body
• 2 cable gland plate
• 1 mounting plate
• 1 door with lock
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Variant Particularity
• gutter-shaped front rail double sheet thickness
• single piece body
• Carbon Footprint Of The Distribution Phase A4
• 145.92121724558532
• 146 kg CO2 eq.
• Door Opening Side
• reversible 120 °)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• enclosure Gray RAL 7035)
• Surface Finish
• enclosure epoxy-polyester powder

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3D121030P_3D-CAD
• Physical Attributes
• Enclosure Nominal Height : 1200 mm
• Enclosure Nominal Width : 1000 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-11
• Manufacturing Carbon Footprint : 358.870883784853
• Distribution Carbon Footprint : 145.921217245585
• Installation Carbon Footprint : 14.4807527960238
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 173.15528015454
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1916
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Coverage : Core product
• Energy Efficiency Optimized : False
• Installation Accessory Type : wall-mounting
• Package Weight Lbs : 73.500 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 692 kg CO2 eq.
• Type Of Gland Plate : standard
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 692.4281339810025
• Relationship Type : Assembly relationship
• Pep Code : ENVPEP100104EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 73500
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : France, FR
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Recyclability Potential In : 98
• Acidification Ap Mole Of H Equiv Total Life Cycle : 2.8803819662884935
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 1.6257946255956914
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.5992678557940817
• Acidification Ap Mole Of H Equiv Installation A5 : 0.042325170065601145
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.6129943148331193
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -1.4040238730528063
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 5.083085433674662
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 4.356167934328538
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.6861065626706234
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.04081093667549995
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -2.1944470629485933
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 687.3450485202679
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 354.5147158505249
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 145.92121724558532
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 13.79464623335319
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 173.1144691908045
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -239.5564416087975
• Climate Change Total Kg Co2 Eq Total Life Cycle : 692.4281339810025
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 358.8708837848534
• Climate Change Total Kg Co2 Eq Distribution A4 : 145.92121724558532
• Climate Change Total Kg Co2 Eq Installation A5 : 14.480752796023815
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 173.15528015453998
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -241.7508886717461
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0012180833718705352
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0012110341803389048
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000001248300300131
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000035536144627677
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000668134708235238
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.07074701184618144
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 29360.18092375501
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 15145.516240029465
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1806.9475796087017
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 143.27371769696873
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 12264.443386419876
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -5343.1161623506305
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 5552.912158973299
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 4604.136908794529
• Ecotoxicity Fresh Water Ctue Distribution A4 : 595.1556265877622
• Ecotoxicity Fresh Water Ctue Installation A5 : 163.4977498901406
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 190.1218737008668
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -4141.181880555404
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00001406017516325957
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000890682049947319
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000164994926562916
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000025420176180896
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000324920363634825
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00012486890711456257
• Exported Energy Mj By Energy Vector Total Life Cycle : 1.2532739733462332
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.09031011854627648
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.5907841548347971
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.5721796999651597
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0010618004309454422
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0005554222621084239
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00001700479796220714
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.0003313329798179738
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00015804039105683736
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0005580937686364619
• Hazardous Waste Disposed Of Kg Total Life Cycle : 12.738480471225229
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 12.256659055462162
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.12031796091410879
• Hazardous Waste Disposed Of Kg Installation A5 : 0.36055506577838714
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.000948389070570423
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -5584.647774264498
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00001031154271016108
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000865874444647538
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000213891846483
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000163448791949866
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000001617142572221
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0008215417268001585
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00001011181542834419
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000607219266910393
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000033729991368415
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000005990762108076
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000364241522447535
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00001341057673560875
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.6641828998326362
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.5812483858640773
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.039535230221228984
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.04339928374732997
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.1384475939358168
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 9.221169327925194
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 6.650813087831124
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.32197455160771093
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 2.2096731480593355
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.03870854042702455
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -46.15075980920458
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.7633735125648827
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.3426988739419937
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.27268622057786085
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.018408764363757907
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.12957965368127025
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.15210611778260452
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 66.53417008079084
• Materials For Recycling Kg Manufacturing A1 A3 : 8.685222520602315
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 57.84894756018853
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 4.56958328931415
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 2.9117677941321323
• Net Use Of Fresh Water M3 Distribution A4 : 0.17154242739997844
• Net Use Of Fresh Water M3 Installation A5 : 0.025999329597045782
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 1.4602737381849937
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -2.2512617473202825
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 41.090454072136595
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 32.58310092371578
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.14780885778115244
• Non Hazardous Waste Disposed Of Kg Installation A5 : 6.188266955851125
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 2.1712773347885355
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -191.40927988780663
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0001297794326385154
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000141404887379941
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0001281533642054154
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000001873417164235
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000002467784287706
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000336885718418308
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 2.6199798781960517
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 1.1252568759463448
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.9860572091225572
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.02935437251235135
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.4793114206147979
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.5763986883586403
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.04971735207158962
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.01969748277719999
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.028872987740835757
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0007648440658738777
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00038203748768000304
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.08643145319642768
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 8.144813106677946
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 3.646076908724631
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 2.9578337086300284
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.128057645220438
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 1.412844844102848
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -1.6998975234443234
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 9.938089075902345
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.938089075902345
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 29672.241698498263
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 15438.48862062629
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1806.9593931245934
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 162.06445786199004
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 12264.729226885387
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -5538.132993494029
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 312.06077474324945
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 292.9723805968262
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.011813515891347983
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 18.79074016502134
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.28584046551052017
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -195.01683114339824
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 9.938089075902345
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.938089075902345
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 29350.242834679106
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 15135.578150953559
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1806.9475796087017
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 143.27371769696873
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 12264.443386419876
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -5343.1161623506305
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 279.80827586206897
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 279.80827586206897
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -199.89541799999998
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 32.25249888118051
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.164104734757302
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.011813515891347983
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 18.79074016502134
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.28584046551052017
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 4.878586856601739
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 196.2600685660594
• Water Use M3 Eq Manufacturing A1 A3 : 125.0572210767096
• Water Use M3 Eq Distribution A4 : 7.367747256829077
• Water Use M3 Eq Installation A5 : 1.1163431774752246
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 62.7187570550455
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -96.68090722311284
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : compact enclosure
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10176658&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 692.428133981002
• Environmental Disclosure : ENVPEP100104EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP100104EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
