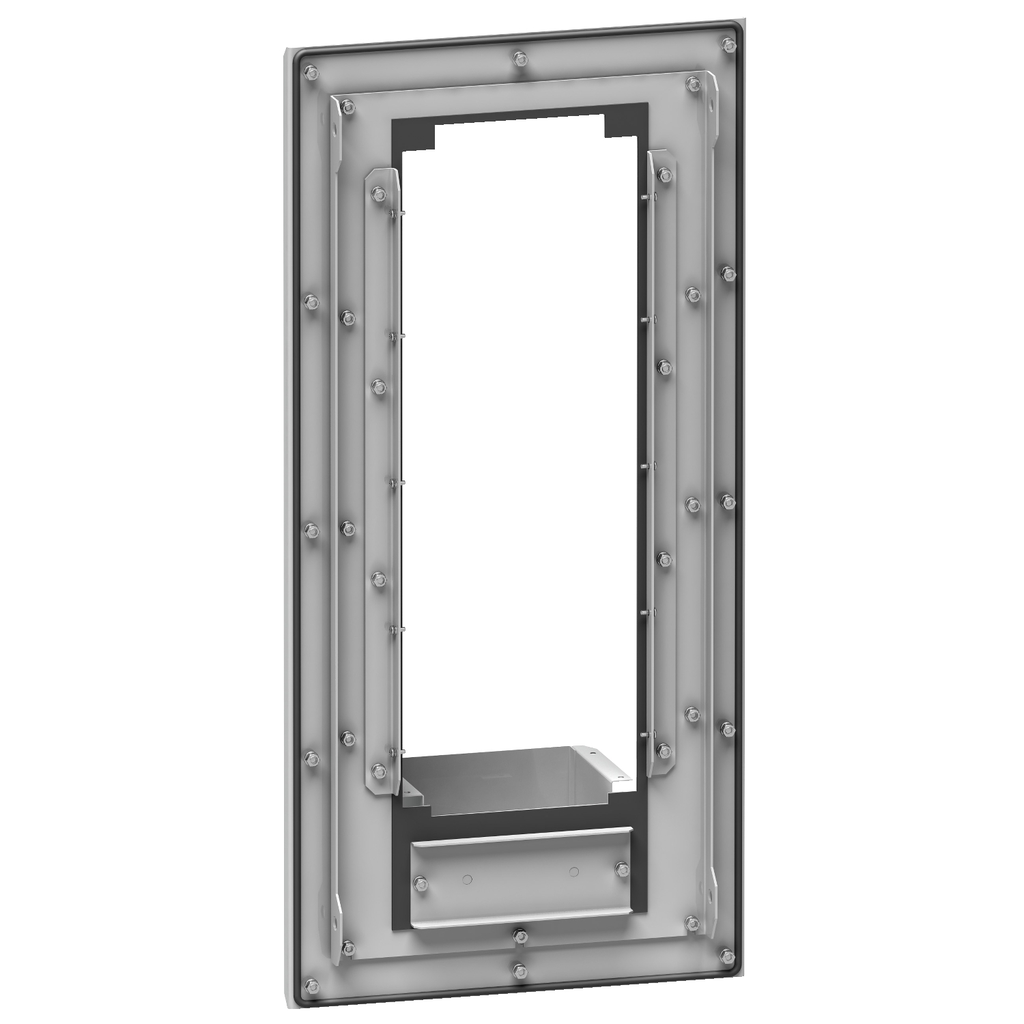

Flush mounting kit for variable speed drives in PanelSeT SFN, and PanelSeT SM and S3D electrical enclosures. It has nominal height and width of 800 and 385 mm respectively. This installation kit allows a quick and efficient installation, while isolating

• Range Compatibility
• Altivar variable speed drive ATV630
• Altivar variable speed drive ATV930
• PanelSeT SF and SM enclosures
• PanelSeT
• Ip Degree Of Protection
• IP55 conforming to IEC 60529
• Nema Degree Of Protection
• NEMA Type 1 UL 508
• NEMA 3R UL 508
• NEMA 12 UL 508
• Mounting Location
• 1 back of enclosure mounting plate
• 2 inside enclosure
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Motor Power Kw
• 15 kW 220/240 V
• 18.5 kW 220/240 V
• 22 kW 220/240 V
• 30 kW 380/480 V
• 37 kW 380/480 V
• 45 kW 380/480 V
• Services
• configuration of enclosure pre-drilled back
• factory installation drive flush mounting kit
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Kit Composition
• 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts
• 1 x mounting plate with flanges and in
• Color
• Gray RAL 7035)

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• Html Descr : Spacial Flush Mounting Drive Installation KitH800xW385mmDegree of Protection: IP55 conforming to IEC 60529Grey RAL 7035
• Manufacturer : Square D
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Package Weight Lbs : 8.102 kg
• Permanent Permissible Load : 28.7 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : drive flush mounting kit
• Product Specific Application : process and utilities
• Range : PanelSeT
• Returnability : Yes
• Sustainable Packaging : No
• Accessory Separate Part Category : mounting and fixing accessory
• General Attributes
• Product Or Component Type : drive flush mounting kit
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=434594571&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP100104EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Nema Size : 4
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 28.94 in
• Width : 12.8 in
• Depth : 0 in
