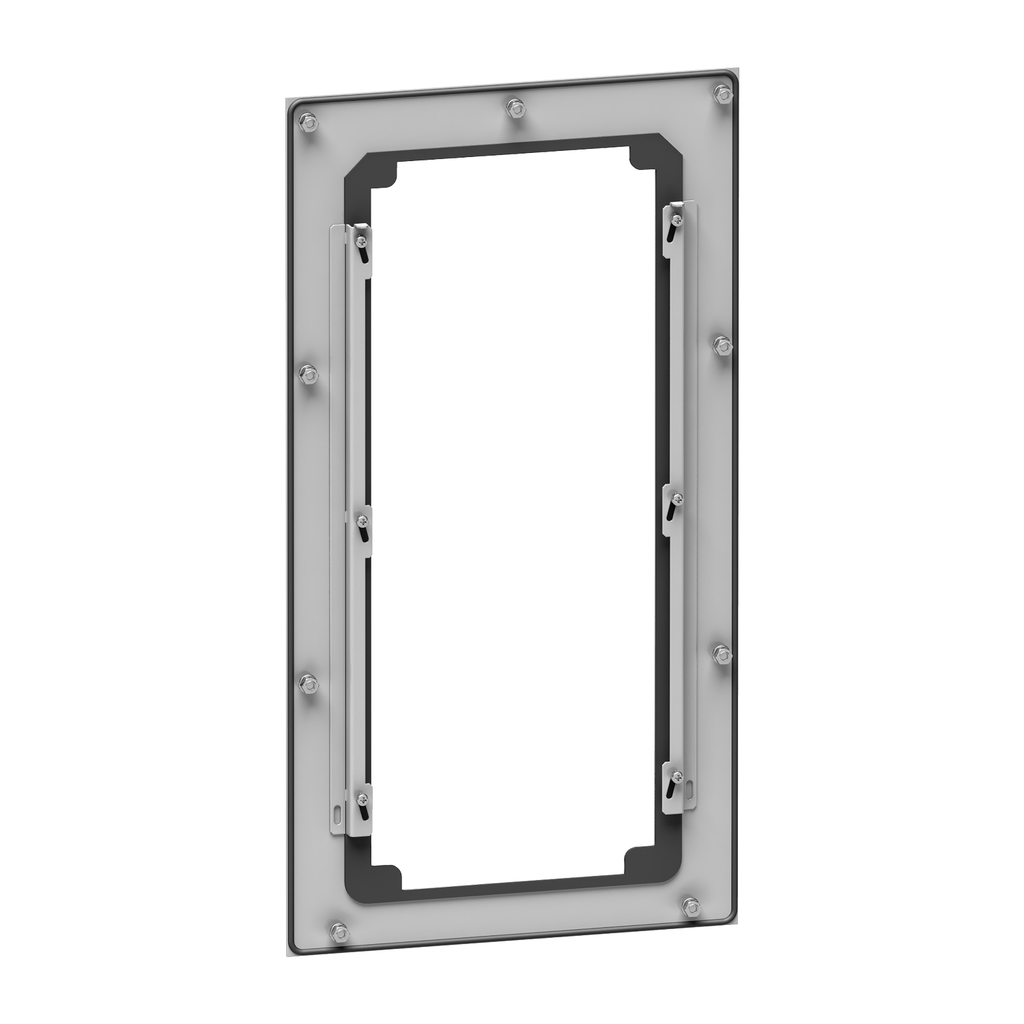

Flush mounting kit for variable speed drives in PanelSeT SFN, and PanelSeT SM and S3D electrical enclosures. It has nominal height and width of 420 and 265 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0003424_3D-CAD&p_File_name=MCADUE0003424_2D-top.dxf
• Range Compatibility
• Altivar variable speed drive ATV630
• Altivar variable speed drive ATV930
• PanelSeT SF and SM enclosures 500 mm x 300 mm
• PanelSeT S3D enclosure 500 mm x 300 mm
• IP Degree Of Protection
• IP55 conforming to IEC 60529
• Nema Degree Of Protection
• NEMA Type 1 UL 508
• NEMA 3R UL 508
• NEMA 12 UL 508
• Mounting Location
• 1 back of enclosure mounting plate
• 2 inside enclosure
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Motor Power KW
• 5.5 kW 220/240 V
• 7.5 kW 380/480 V
• 11 kW
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Services
• configuration of enclosure pre-drilled back
• factory installation drive flush mounting kit
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Kit Composition
• 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts
• 1 x fixing accessories
• 1 x drilling template
• 1 x instruction sheet
• 1 x edge protector profile, plastic
• Color
• Gray RAL 7035)

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• HTML Description : Spacial - Flush Mounting Drive Installation Kit - Altivar Process Size S2 - IP55
• Manufacturer : Square D
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1916
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Coverage : Core product
• Energy Efficiency Optimized : False
• Package Weight Lbs : 1.922 kg
• Permanent Permissible Load : 7.7 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : drive flush mounting kit
• Product Specific Application : process and utilities
• Range : PanelSeT
• Returnability : Yes
• Sustainable Packaging : No
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : drive flush mounting kit
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=434594570&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Nema Size : 2
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 14.76 in
• Width : 8.46 in
• Depth : 0 in
