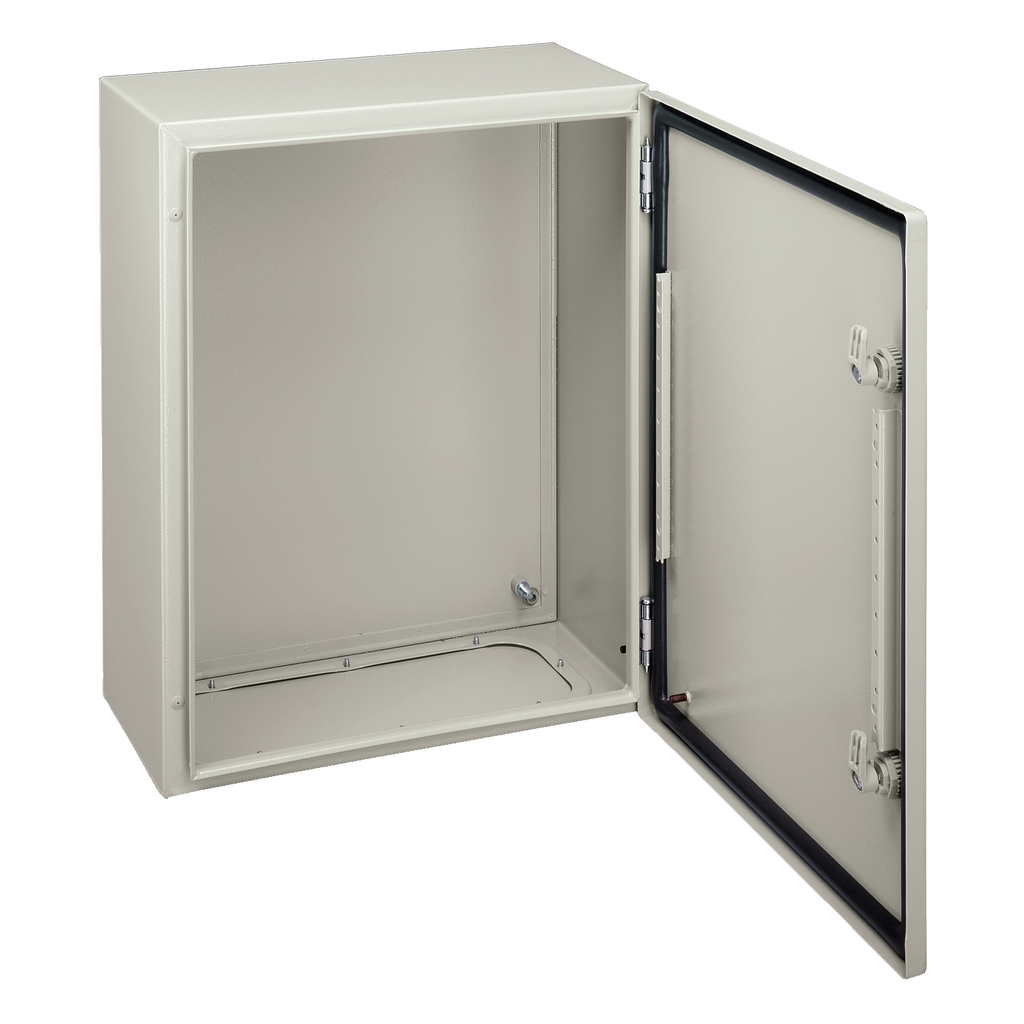

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable a

• Carbon Footprint Of The Installation Phase A5
• 4.038849419299159
• 4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 48 kg CO2 eq.
• 48.2950101111302
• Standards
• IEC 62208
• UL
• cUL
• Ip Degree Of Protection
• IP66 IEC 60529
• Material
• body steel
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 100 kg CO2 eq.
• 100.09323969509516
• Number Of Doors
• front face 1
• Removable Parts
• door by hinges
• cable gland plate by screws
• Accessories
• NSYTLCRND
• NSYMM86
• NSYSDCR300
• NSYMD86
• NSYVDM16UP
• NSYPIN86
• NSYPFCR
• NSYPFCX
• NSYSFPSC60
• NSYSPS3100SD
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 body
• 1 cable gland plate
• 1 door
• 1 lock
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Variant Particularity
• sides made from a single folded section
• back welded with double profile forming a protected sealed area
• Carbon Footprint Of The Distribution Phase A4
• 40.69911501407482
• 41 kg CO2 eq.
• Door Opening Side
• reversible 120 °)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7035)
• Product Certifications
• UL
• cUL
• DNV-GL

• Physical Attributes
• Enclosure Nominal Height : 800 mm
• Enclosure Nominal Width : 600 mm
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• ETIM 10 : EC000261
• Html Descr : Spacial CRN Plain DoorProduct or Component Type: Compact EnclosureDimensions: 800 H x 600 W x 300 D mmInstallation Accessory Type: Wall-mountingMounting Plate Description: Without mounting plateDegree of Protection: IP66, I
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 100.093239695095
• Distribution Carbon Footprint : 40.6991150140748
• Installation Carbon Footprint : 4.03884941929916
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 48.2950101111302
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Coverage : Core product
• Device Application : multi-purpose
• Door Type : Solid
• Energy Efficiency Optimized : False
• Installation Accessory Type : wall-mounting
• Lock Type : 3 mm double-bar lock
• Mounting Plate Description : without mounting plate
• Package Weight Lbs : 20.500 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Returnability : Yes
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 193 kg CO2 eq.
• Type Of Gland Plate : standard
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 193.12621423959936
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : compact enclosure
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10176902&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 193.126214239599
• Environmental Disclosure : ENVPEP100104EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
