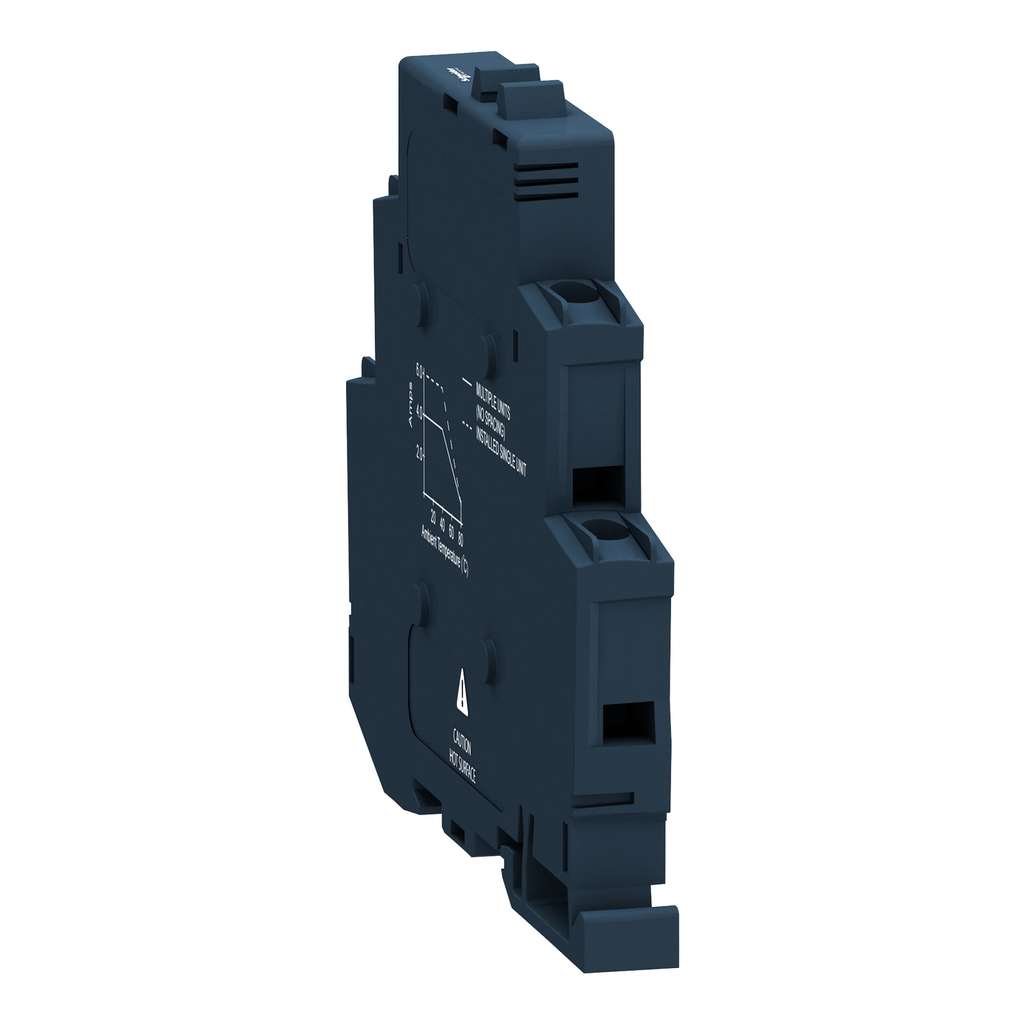

single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC swtching, input 4 to 32V DC, output 1 to 60V DC

RELAY SOLID STATE 1-CHANNEL

SQDSSM1D26BD SSM1D26BD 3606480579349
63.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC swtching, input 4 to 32V DC, output 1 to 60V DC-2
  • Country of Origin: Mexico
This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in he
QTY
  • Product Description
  • Features
  • Specifications
This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in he
  • Insulation Resistance
    • 1000 MOhm at 500 V DC
  • Connections Terminals
    • screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input
    • screw
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=SSM1D26BD_CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D26BD&p_File_name=SSM1D26BD_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Response Time
    • 1.7 ms (turn-on)
    • 0.3 ms (turn-off)
  • Carbon Footprint Of The Installation Phase A5
    • 0.0003136436
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0083614887
  • Maximum Leakage Current
    • 0.1 mA off-state
  • Maximum Switching Voltage
    • 1 V DC turn-off
  • Minimum Switching Voltage
    • 4 V DC turn-on
  • UC Control Circuit Voltage
    • 4...32 V DC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.7 kg CO2 eq.
    • 0.7248066038
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Flame Retardance
    • V0 conforming to UL 94
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 33 kg CO2 eq.
    • 33.1678890667
  • Solid State Output Type
    • Mosfet output
    • DC switching
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 4 kV DC for input/output
    • 4 kV DC for input or output to case
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0078703811
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.5...0.8 N.m for input
    • 0.5...0.8 N.m for output
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Local Signalling
    • LED (green) for input status
  • Resistance
    • 0.1 Ohm on-state
  • Maximum Voltage Drop
    • <0.6 V on-state
  • Surge Current
    • 60 A 10 ms
  • Output Voltage
    • 1...60 V DC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 8/18/2025
    • Manufacturing Carbon Footprint : 0.724806604
    • Distribution Carbon Footprint : 0.007870381
    • Installation Carbon Footprint : 0.000313644
    • Use Carbon Footprint : 33.16788907
    • End Of Life Carbon Footprint : 0.008361489
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1307069EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Short Name : SSM
    • Package Weight Lbs : 63.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Configuration Type : relay configuration
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 34 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 33.90924118
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP1307069EN
    • Pep Verification Date : 12/1/2019
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 61
    • Functional Unit Description : To switch ON/OFF electronic contact during 10 years at a 50% use rate.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 67.69728
    • Energy Model Manufacturing A1 A3 : Energy model used: Mexico
    • Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 1.81486E-05
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 1.52661E-05
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 3E-10
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000002882
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 2E-10
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 383.0350434
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.380715094
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.110572283
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.004066168
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 376.4738133
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.065876547
    • Exported Energy Mj By Energy Vector Total Life Cycle : 1.83211E-05
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 1.7222E-06
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 1.65989E-05
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.639865558
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.552406793
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 1.54E-08
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.017291486
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.070167264
    • Materials For Energy Recovery Kg Total Life Cycle : 0.00102335
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.00102335
    • Materials For Recycling Kg Total Life Cycle : 0.05293557
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.005633177
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.005765996
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.041536396
    • Net Use Of Fresh Water M3 Total Life Cycle : 120.2782894
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.016862472
    • Net Use Of Fresh Water M3 Distribution A4 : 7.044E-07
    • Net Use Of Fresh Water M3 Installation A5 : 3.43E-08
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 120.2614187
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000007507
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 124.8568572
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.191111321
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000279633
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 4.25734E-05
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 123.6651733
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00025033
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 2.3091E-06
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000000148
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 2.1607E-06
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 4E-10
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.083533501
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000942899
    • Radioactive Waste Disposed Of Kg Distribution A4 : 1.992E-07
    • Radioactive Waste Disposed Of Kg Installation A5 : 8.4E-09
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.082589995
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.998E-07
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 588.1577496
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.768862264
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.111132793
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.004089762
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 578.1917867
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.081878113
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 673.0101253
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 10.36861887
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.111281264
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.004096093
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 662.44416
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.081969038
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 84.83513285
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.599687547
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000148299
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 6.3616E-06
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 84.2352
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 9.06425E-05
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.222005472
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.222005472
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 587.9357326
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.546845283
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.111132793
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.004089762
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 578.1917867
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.081878113
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.114226528
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.114226528
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 84.72090172
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.485456415
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000148299
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 6.3616E-06
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 84.2352
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 9.06425E-05
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 1.37204E-05
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 1.37204E-05
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 1510.834495
    • Air Pollution M3 Manufacturing A1 A3 : 82.35115094
    • Air Pollution M3 Distribution A4 : 0.334797925
    • Air Pollution M3 Installation A5 : 0.012508453
    • Air Pollution M3 Operational Energy Use B6 : 1427.550507
    • Air Pollution M3 End Of Life C1 C4 : 0.585530943
    • Water Pollution M3 Total Life Cycle : 1462.131809
    • Water Pollution M3 Manufacturing A1 A3 : 91.44360377
    • Water Pollution M3 Distribution A4 : 1.294235849
    • Water Pollution M3 Installation A5 : 0.047566189
    • Water Pollution M3 Operational Energy Use B6 : 1368.645973
    • Water Pollution M3 End Of Life C1 C4 : 0.700429623
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.143258919
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.007880811
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.009171316
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.004853183
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 3.59348E-05
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 1.3069E-06
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.138351808
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 1.66864E-05
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 33.90924118
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.724806604
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.007870381
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.000313644
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 33.16788907
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.008361489
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.000274109
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 2.5643E-06
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 9.77E-08
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.007602291
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 1.7495E-06
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.000804717
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 8.2768E-06
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 3.176E-07
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.008353453
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 4.5523E-06
    • Warranty In Months : 18
  • General Attributes

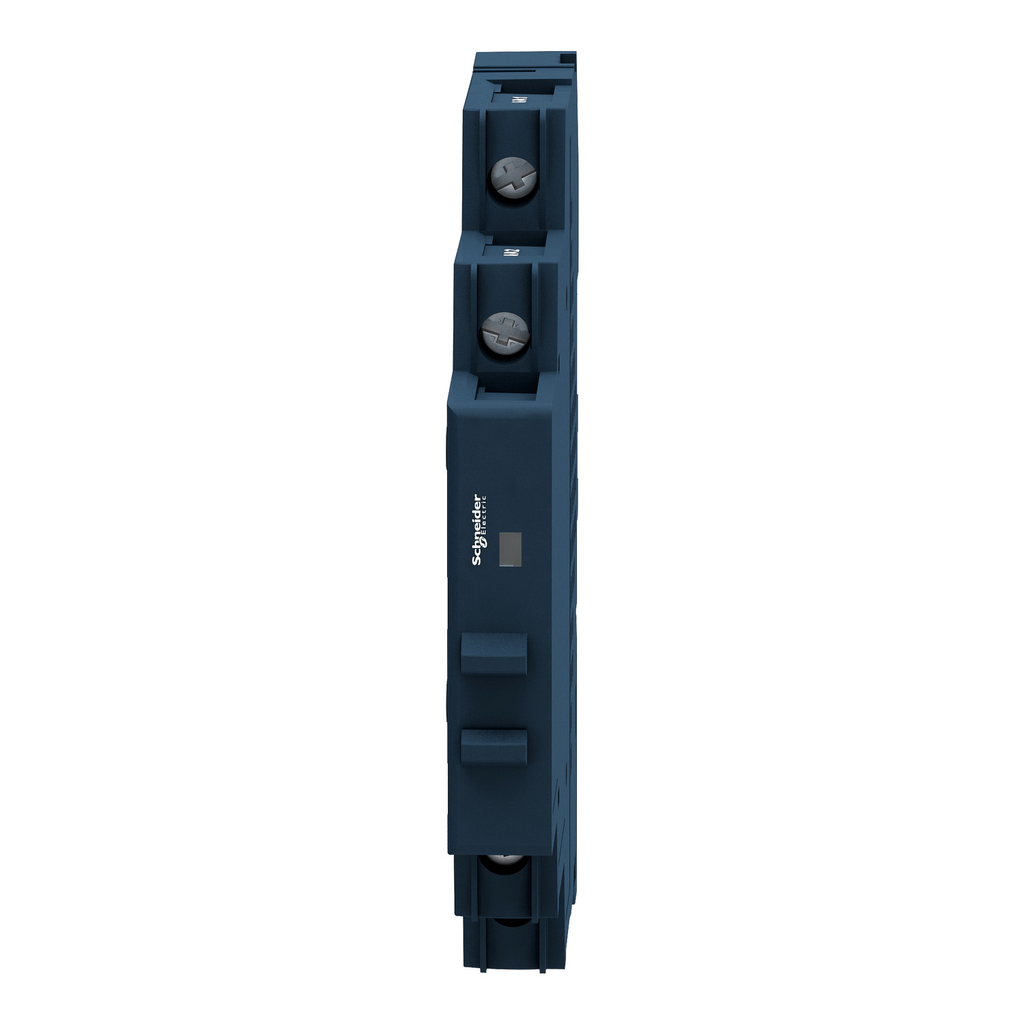

    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
  • Output Attributes
    • Output Switching Mode : DC switching
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267287260&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 33.90924118
    • Circularity Profile : ENVEOLI1307069EN
    • Environmental Disclosure : ENVPEP1307069EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1307069EN
    • Pep Verification Date : 12/1/2019
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Input Attributes
    • Input Current Limits : 8-11 mA
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
