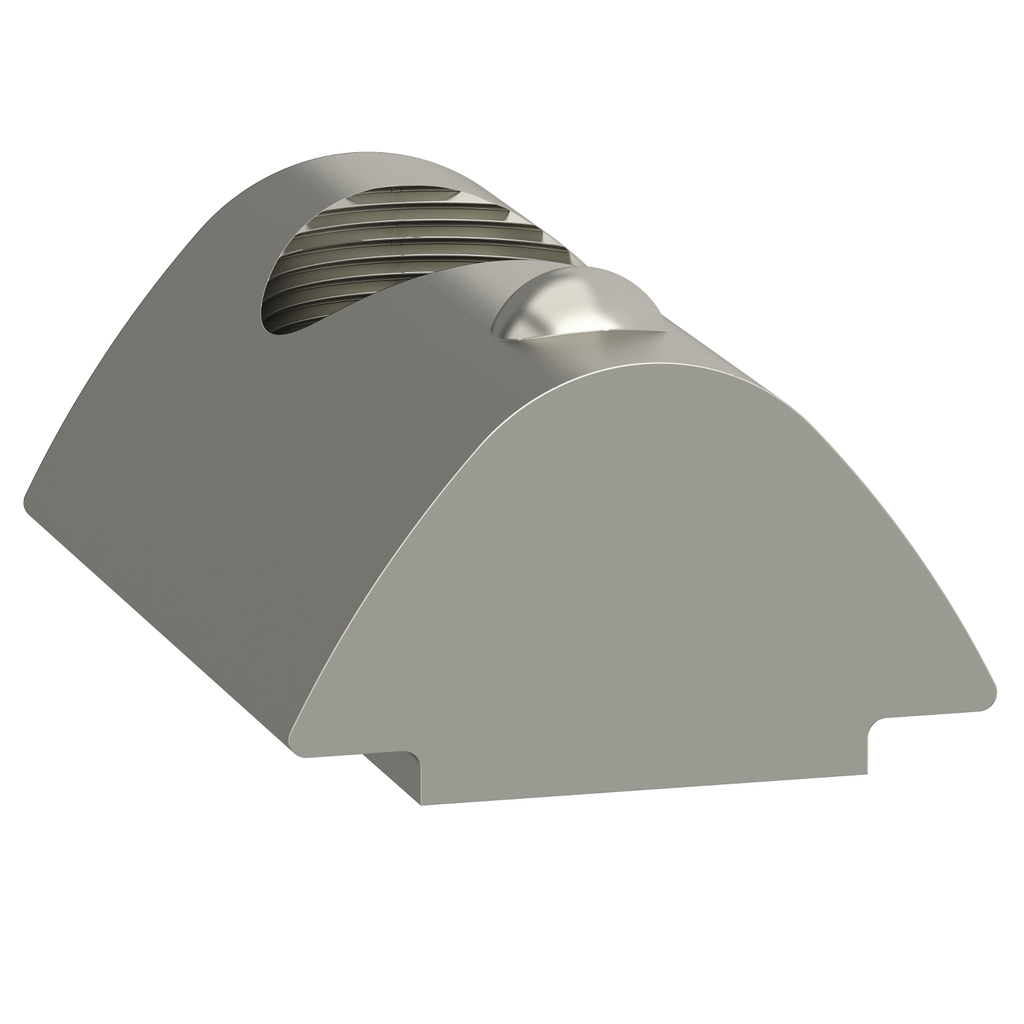

This accessory belongs to Lexium PAS Toothed belt axis. It is a slot nut to be inserted into the T slots of the axis body to fasten the axis or parts of the axis. It has 5x steel M5. It is designed to mount the axis on fixed support. The maximum tightening torque for M5 thread is 5Nm (44.25lb⋅in). The wrench size is 4mm. It is made of galvanized steel, and weighs 0.096kg. It is compatible with PAS41B/42B/42S, PAD42, TAS41, CAS41/42, CAR42, MAXH41/H42, MAXS41/S42, MAXP12/P22, MAXR12/R13/R22/R23 Lexium Cartesian robots. It is sold in lots of 10 units. Lexium PAS are Portal axes with movable carriage and fixed axis. Lexium PAS portal axes are designed for applications which require positioning of heavy loads over long distances with highly dynamic performance.

• Product Compatibility
• PAS 41 linear axis 40 x 40 mm
• PAS 42 linear axis 60 x 60 mm
• CAS 41 linear axis 40 x 40 mm
• CAS 42 linear axis 60 x 60 mm
• TAS 41 linear axis 100 x 39 mm
• Compatibility Code
• TAS
• PAS
• CAS
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000812_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-08
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1901
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Package Weight Lbs : 94.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : T-slot nut
• Product Specific Application : to mount the axis on fixed support
• Range Of Product : Lexium linear motion
• Returnability : No
• Screw Type : M5
• Sustainable Packaging : No
• Relationship Type : cross-selling relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : T-slot nut
• Range Of Product : Lexium linear motion
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=56113949&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
