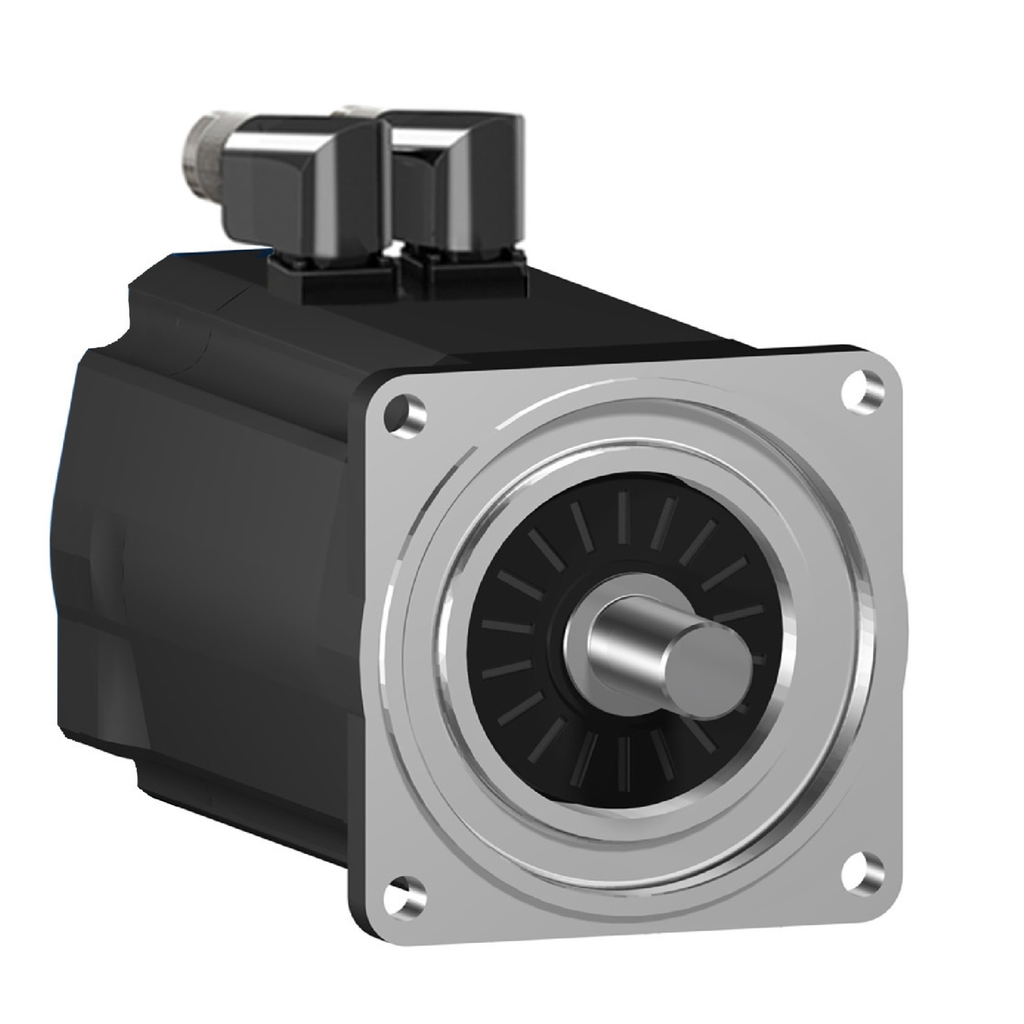

servo motor SH3 140 19,5Nm,nokey,single,nobrake,90Â°conn.IP54/IP65,4k RPM

Name: servo motor SH3 140 19,5Nm,nokey,single,nobrake,90Â°conn.IP54/IP65,4k RPM
Brand: SCHNEIDER ELECTRIC
SKU: SQDSH31402P01A2000
Price: 3908.35 USD
Availability: OutOfStock

SH140/30200/0/0/00/00/00/00/00

SQDSH31402P01A2000 SH31402P01A2000 3606485297637

3908.35 / EA

http://schema.org/OutOfStock

Mayer-DDS-servo motor SH3 140 19,5Nm,nokey,single,nobrake,90Â°conn.IP54/IP65,4k RPM-1

Country of Origin: Germany
Shaft Diameter: 24 mm
Shaft End: Smooth Shaft
Shaft Length: 50 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Nominal Speed

750 rpm 115 V single phase
1500 rpm 230 V single phase
3000 rpm 400 V three phase
3600 rpm 480 V three phase

IP Degree Of Protection

IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5
IP65 motor: conforming to IEC 60034-5
IP65 shaft bushing: conforming to IEC 60034-5

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.1534726781
0.2 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

2 kg CO2 eq.
1.6301955774

Nominal Output Power

1460 W 115 V single phase
2690 W 230 V single phase
3860 W 400 V three phase
3660 W 480 V three phase

Carbon Footprint Of The Manufacturing Phase A1 To A3

76 kg CO2 eq.
75.7374447174

Peak Stall Torque

60.1 N.m 115...480 V three phase

Maximum Radial Force FR

2240 N 1000 rpm
1780 N 2000 rpm
1550 N 3000 rpm

Persona Type Names

End User
Original Equipment Manufacturer

Carbon Footprint Of The Use Phase B2 B3 B4 B6

9 042 kg CO2 eq.
9041.7098668921

Persona Type Ids

Nominal Torque

18.6 N.m 115 V single phase
17.1 N.m 230 V single phase
12.3 N.m 400 V three phase
9.7 N.m 480 V three phase
12.3 N.m full speed
15.9 N.m half speed

Carbon Footprint Of The Distribution Phase A4

2.231997543
2 kg CO2 eq.

Continuous Stall Torque

19.5 N.m 115...480 V three phase

Device Short Name

Torque Constant

1.47 N.m/A 120 °C

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001560_3D-CAD

Physical Attributes

Motor Flange Size : 140 mm
Shaft Length : 50 mm

Complementary Attributes

Maximum Ambient Air Temperature For Operation : 60.0 °C
Maximum Current IRMS : 44.1 A
Maximum Mechanical Speed : 4000 rpm
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Maximum In Rated Current : 8.9 A

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-07-09
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 75.7374447174
Distribution Carbon Footprint : 2.231997543
Installation Carbon Footprint : 0.1534726781
Use Carbon Footprint : 9041.7098668921
End Of Life Carbon Footprint : 1.6301955774
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1901
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Tier Id : 3
Tier : 3
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Centring Collar Diameter : 130 mm
Circle Diameter Of The Mounting Holes : 165 mm
Continuous Stall Current : 13.2 A
Derating Altitude Scale : 80.0 m
Derating Altitude Start : 1000.0 m
Derating Temperature Scale : 80.0 °C
Derating Temperature Start : 40.0 °C
Electrical Connection : rotatable right angled connector
Holding Brake : without
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Motor Figures : 400.0 V
Mounting Holes Diameter : 11 mm
Network Number Of Phases : 3
Number Of Motor Poles : 5.0
Package Weight Lbs : 17.3 kg
Peak Nominal Torque : 60.1 N.m
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor
Returnability : Yes
Rotor Inertia : 12.68 kg.cm²
Shaft Diameter : 24 mm
Shaft End : smooth shaft
Sizing Reference : SH31402P
Stator Inductance : 3.855 mH
Stator Resistance : 0.6 Ohm
Sustainable Packaging : No
Temperature Copper Hot : 130 °C
Total Lifecycle Carbon Footprint : 9 121 kg CO2 eq.
Maximum In Rated Current : 8.9 A
Carbon Footprint Kg Co2 Eq Total Life Cycle : 9121.4629774081
Relationship Type : Compatible relationship
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 17300
Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Quantity : 1
Functional Unit Unit : unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 18454.553
Nbr Of Units In Pkg : 1
Warranty In Months : 18
Energy Model Manufacturing A1 A3 : Energy model used: Germany
Energy Model Installation A5 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model Use B6 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model End Of Life C1 C4 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0064291036
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.005643328
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000893
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000059
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0007856371
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000433
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 103351.3602139756
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 669.663022113
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 31.3589066339
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.9711585995
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 102631.405900585
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 16.9612260442
Exported Energy Mj By Energy Vector Total Life Cycle : 0.0084843323
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0007975215
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.0076868108
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 288.9411278767
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 267.2998771499
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.0000352843
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 4.7137817816
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 16.9274336609
Materials For Energy Recovery Kg Total Life Cycle : 0.090423317
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.090423317
Materials For Recycling Kg Total Life Cycle : 16.5396288698
Materials For Recycling Kg Manufacturing A1 A3 : 1.6342124079
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 2.6917014742
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 12.2137149877
Net Use Of Fresh Water M3 Total Life Cycle : 32785.7608018058
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 1.3740960688
Net Use Of Fresh Water M3 Distribution A4 : 0.0001997619
Net Use Of Fresh Water M3 Installation A5 : 0.0000216378
Net Use Of Fresh Water M3 Operational Energy Use B6 : 32784.3847325317
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0017518057
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 33782.509625424
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 71.2849262899
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0793058354
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0789594103
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 33711.0013336058
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0651002826
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000709834
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0001207196
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000045
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000005
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00058902
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000895
Radioactive Waste Disposed Of Kg Total Life Cycle : 22.5649432744
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0502273833
Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000564843
Radioactive Waste Disposed Of Kg Installation A5 : 0.0000059523
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 22.5145530379
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0001004165
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 159115.864640486
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1441.1282555283
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 31.5183046683
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.9878847666
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 157620.1197323779
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 21.110463145
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 182167.7678378628
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1530.3061425061
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 31.5608108108
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.9926029484
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 180582.7740150127
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 21.1342665848
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 23051.911105007
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 89.1863882064
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.042059828
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0047239201
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 22962.6542826348
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0236504177
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.627977887
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 16.627977887
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 159099.2234856949
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1424.4871007371
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 31.5183046683
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.9878847666
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 157620.1197323779
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 21.110463145
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 53.0922972973
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 53.0922972973
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 22998.8166824026
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 36.091965602
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.042059828
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0047239201
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 22962.6542826348
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0236504177
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 5.3455724816
Use Of Secondary Materials Kg Manufacturing A1 A3 : 5.3455724816
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 411018.3965929132
Air Pollution M3 Manufacturing A1 A3 : 21607.9975429975
Air Pollution M3 Distribution A4 : 94.9502211302
Air Pollution M3 Installation A5 : 6.6228820639
Air Pollution M3 Operational Energy Use B6 : 389158.696376697
Air Pollution M3 End Of Life C1 C4 : 150.1295700246
Water Pollution M3 Total Life Cycle : 379303.3429899515
Water Pollution M3 Manufacturing A1 A3 : 5646.7285012285
Water Pollution M3 Distribution A4 : 367.0617936118
Water Pollution M3 Installation A5 : 23.0532063882
Water Pollution M3 Operational Energy Use B6 : 373100.045434669
Water Pollution M3 End Of Life C1 C4 : 166.4540540541
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 37.9833079075
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 2.095617551
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 2.3094866025
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.2527202703
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0101914853
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0006377834
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 37.7155260319
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0042323366
Global Warming Kg Equivalent Co2 Total Life Cycle : 9121.4629774081
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 75.7374447174
Global Warming Kg Equivalent Co2 Distribution A4 : 2.231997543
Global Warming Kg Equivalent Co2 Installation A5 : 0.1534726781
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 9041.7098668921
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 1.6301955774
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0219714251
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0007272588
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000477174
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 2.0724175666
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000453583
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0287065233
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0023474017
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0001765811
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 2.2772059183
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.001050178

General Attributes

Product Or Component Type : servo motor

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=417170620&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 9121.4629774081
Environmental Disclosure : ENVPEP111049EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : Germany

servo motor SH3 140 19,5Nm,nokey,single,nobrake,90Â°conn.IP54/IP65,4k RPM

SH140/30200/0/0/00/00/00/00/00

characters left.
