servo motor BMI 3-phase - keyed IP65 multiturn - 32768 p/t x 4096 t - brake

MOT 3P 100MM IP65 1,9KW KEY E

SQDBMI1002P37F BMI1002P37F 3606485377230
2876.59 / EA
http://schema.org/OutOfStock

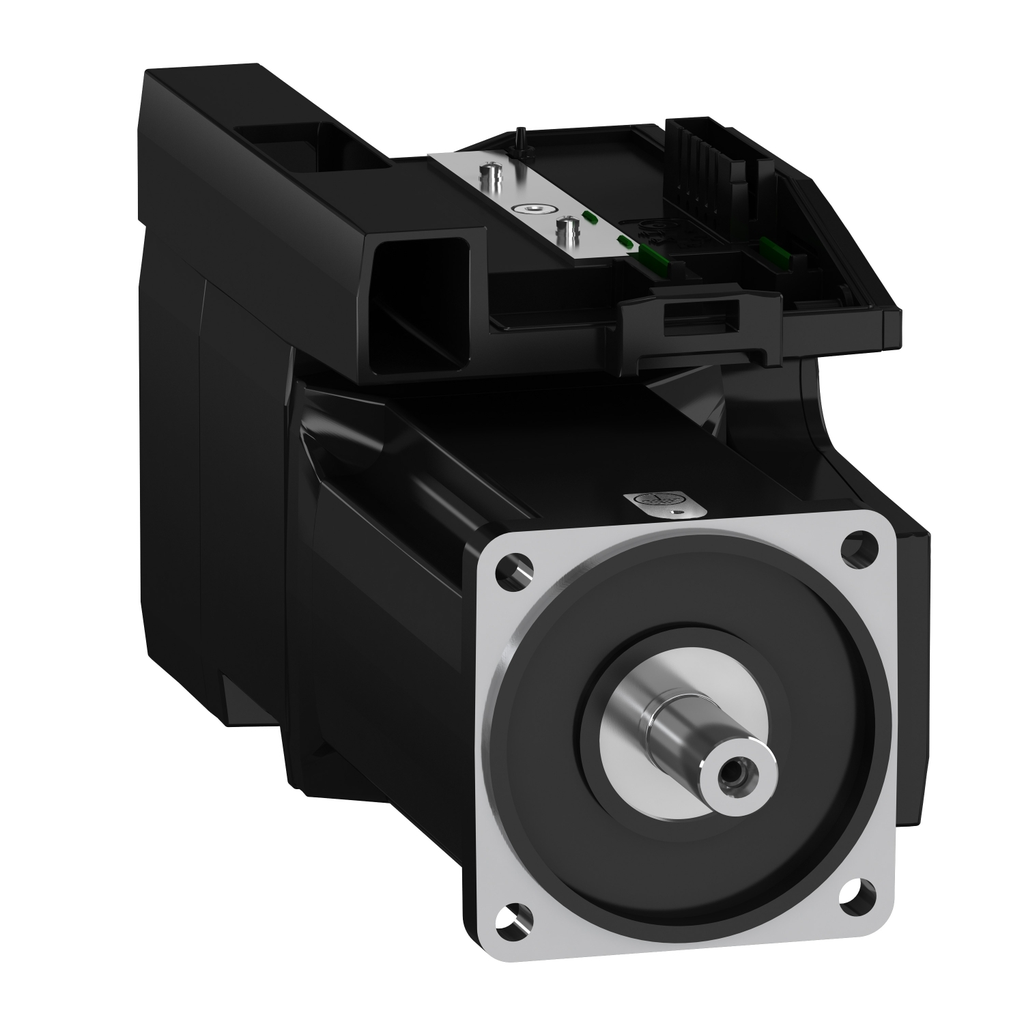

Mayer-DDS-servo motor BMI 3-phase - keyed IP65 multiturn - 32768 p/t x 4096 t - brake-1
  • Shaft Diameter: 19 mm
  • Shaft End: Keyed
  • Shaft Length: 40 mm
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Key Width : 6 mm
    • Motor Flange Size : 100 mm
    • Shaft Length : 40 mm
  • Complementary Attributes
    • Maximum Current IRMS : 17.5 A 208 V, three phase, 17.5 A 400 V, three phase, 17.5 A 480 V, three phase
    • Maximum Radial Force FR : 990 N 1000 rpm, 790 N 2000 rpm, 690 N 3000 rpm, 620 N 4000 rpm, 580 N 5000 rpm
    • Maximum Mechanical Speed : 6000 rpm
    • US Rated Supply Voltage : 208...480 V - 15...10 %
  • Important Information Attributes
    • Nominal Speed : 1900 rpm 208 V three phase, 3800 rpm 400 V three phase, 4700 rpm 480 V three phase
    • Nominal Torque : 5.1 N.m 400 V three phase, 5.4 N.m 208 V three phase, 4.1 N.m 480 V three phase
    • Peak Stall Torque : 14 N.m 208 V three phase, 14 N.m 400 V three phase, 14 N.m 480 V three phase
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Motion - integrated drive
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1312017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Brake Pull In Power : 8 W
    • Centring Collar Diameter : 95 mm
    • Circle Diameter Of The Mounting Holes : 115-115 mm
    • Coefficient 1 1 : -0.000367 N.m/rpm
    • Coefficient 1 2 : 0 N.m/rpm²
    • Coefficient 1 3 : 0 N.m/rpm3
    • Coefficient 1 4 : 0 N.m/rpm4
    • Coefficient 1 5 : 0 N.m/rpm5
    • Coefficient 1 6 : 0 N.m/rpm6
    • Coefficient 2 0 : 0 N.m
    • Coefficient 2 1 : 4E-05 N.m/rpm
    • Continuous Stall Current : 4 A
    • Continuous Stall Torque : 6 N.m 208...480 V three phase
    • Device Short Name : BMI
    • Distance Shaft Shoulder Flange : 3.5 mm
    • Feedback Type : absolute multiturn SinCos Hiperface
    • Field Weakening : false
    • Holding Brake : with
    • Holding Torque : 5.5 N.m holding brake
    • Mounting Holes Diameter : 9 mm
    • Package Weight Lbs : 9.5 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : servo motor with power stage
    • Returnability : No
    • Second Shaft : without second shaft end
    • Shaft Diameter : 19 mm
    • Shaft End : keyed
    • Sizing Reference : BMI1002P
    • Stator Electrical Time Constant : 4.17 ms 20 °C
    • Stator Inductance : 9.79 mH 20 °C
    • Stator Resistance : 2.347 Ohm 20 °C
    • Supply Frequency : 50/60 Hz - 5...5 %
    • Supply Voltage Description : three phase 208...480 V
    • Sustainable Packaging : No
    • Switching Frequency : 8 kHz
    • Temperature Copper Hot : 135 °C
    • Temperature Magnet Hot : 20 °C
    • Temperature Magnet RT : 100 °C
    • Torque Constant : 1.28 N.m/A 20 °C
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1312017EN
    • Product Kit Identifier : N
    • Product Manager : VINIT CHAUDHARI
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : drive control unit LXM32i CANopen, drive control unit LXM32i EtherCAT
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1312017EN
    • Environmental Disclosure : ENVPEP1312017EN
    • IP Degree Of Protection : IP65
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1312017EN
  • General Attributes
    • Product Or Component Type : servo motor with power stage
  • Output Attributes
    • Nominal Output Power : 1000 W 208 V three phase, 1900 W 400 V three phase, 1900 W 480 V three phase
    • Continuous Output Current : 4 A 8 kHz
    • Output Current 3s Peak : 12 A 400 V 3 s
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
