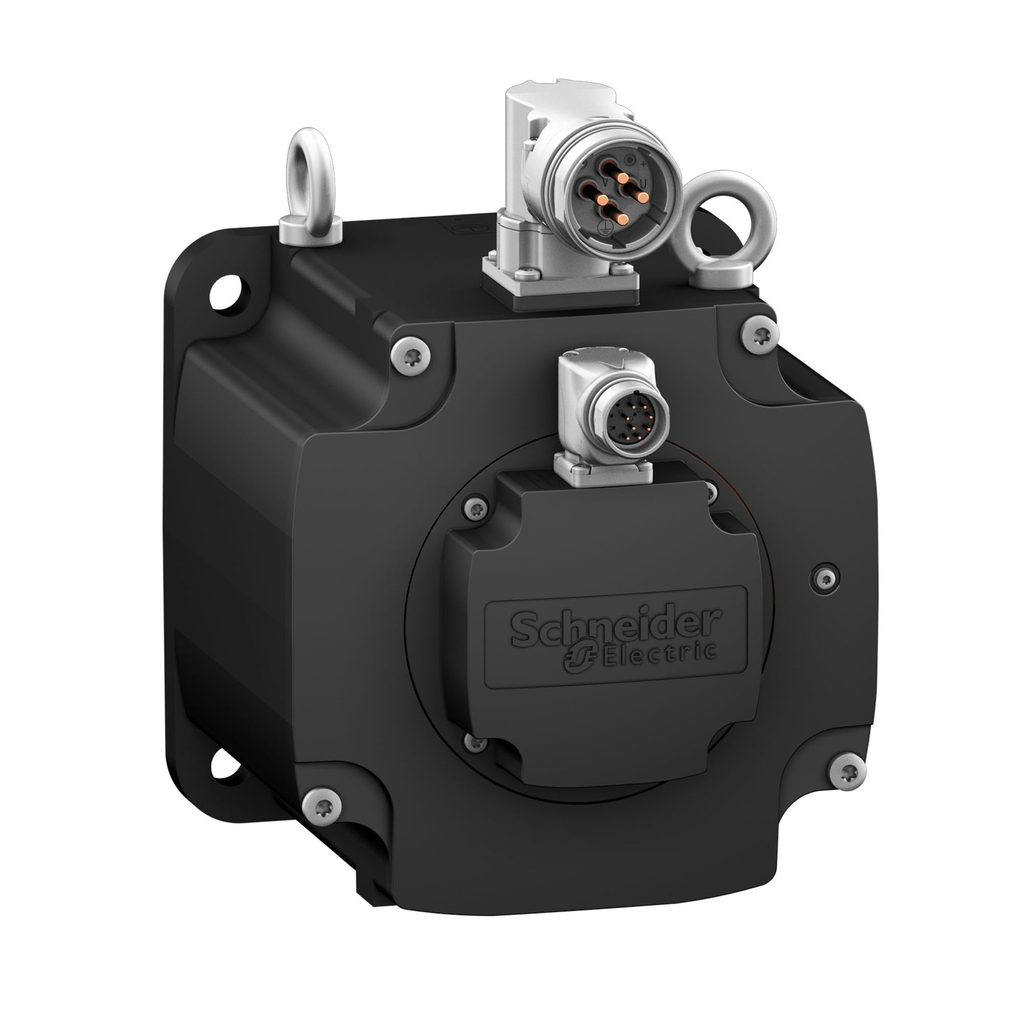

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (131072 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 23.2A and a continuous power of 5.24W. The shaft dimensions are 38mm (Diameter) x 80mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP67 (with kit) rated product. Its dimensions are 190mm (Length) x 190mm (Width), centring collar dimensions are 4mm (Depth) x 180mm (Diameter) with 215mm circle diameter of the mounting hole. It weighs 19kg. This product is compatible with Lexium 32 servo drives. It supports international standard 190mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Circle Diameter Of The Mounting Holes : 215 mm
• Maximum Permanent Current : 89.6 A
• Continuous Power : 5.24 W
• Temperature Magnet Hot : 100 °C
• Stator Electrical Time Constant : 21.2 ms 20 °C
• Maximum Radial Force Fr : 3730 N 1000 rpm
• Number Of Motor Stacks : 1
• Rotor Inertia : 67.7 kg.cm²
• Number Of Motor Poles : 10
• Back Emf Constant : 87.6 V/krpm 120 °C
• Maximum Axial Force Fa : 0.2 x Fr
• Centring Collar Depth : 4 mm
• Second Shaft : without second shaft end
• Shaft Length : 80 mm
• Phase : three phase
• Length : 190 mm
• Maximum Current Irms : 72 A LXM32.D72N4
• Net Weight : 19 kg
• Sizing Reference : BMH1901P
• Centring Collar Diameter : 180 mm
• Stator Inductance : 5.08 mH 20 °C
• Motor Flange Size : 190 mm
• [Us] Rated Supply Voltage : 480 V
• Number Of Mounting Holes : 4
• Shaft Diameter : 38 mm
• Key Width : 70 mm
• Mounting Holes Diameter : 14 mm
• Type Of Cooling : natural convection
• Accuracy Error [Angular] : 1.4 °
• Feedback Type : single turn SinCos Hiperface
• Stator Resistance : 0.24 Ohm 20 °C
• Range Compatibility : Lexium 32
• Continuous Stall Current : 23.2 A
• Motor Voltage Drop Coefficient : 1
• Temperature Magnet Rt : 20 °C
• Network Number Of Phases : 3
• Torque Constant : 1.3 N.m/A 120 °C
• Temperature Copper Hot : 135 °C
• Specifications
• Country of Origin : Germany
• Length : 190 mm
• Width : 70 mm
• Weight : 19 kg
• Maximum Mechanical Speed : 4000 rpm
• Mounting Support : international standard flange
• Holding Brake : without
• Speed Feedback Resolution : 131072 points/turn
• Product Or Component Type : servo motor
• Nominal Output Power : 4800 W LXM32.D72N4 24 A, 400 V, three phase || 4800 W LXM32.D72N4 24 A, 480 V, three phase || 5180 W LXM32MD85N4 32 A, 400 V, three phase || 5180 W LXM32MD85N4 32 A, 480 V, three phase || 5180 W LXM32MC10N4 40 A, 400 V, three phase || 5180 W LXM32MC10N4 40 A, 480 V, three phase
• Peak Stall Torque : 77.7 N.m LXM32.D72N4 24 A, 400 V, three phase || 77.7 N.m LXM32.D72N4 24 A, 480 V, three phase || 86.6 N.m LXM32MD85N4 32 A, 400 V, three phase || 86.6 N.m LXM32MD85N4 32 A, 480 V, three phase || 89.7 N.m LXM32MC10N4 40 A, 400 V, three phase || 89.7 N.m LXM32MC10N4 40 A, 480 V, three phase
• Product Compatibility : LXM32.D72N4 400...480 V three phase
• Ip Degree Of Protection : IP65 standard || IP67 with IP67 kit
• Shaft End : keyed
• Nominal Speed : 2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM32MD85N4 32 A, 400 V, three phase || 3000 rpm LXM32MD85N4 32 A, 480 V, three phase || 3000 rpm LXM32MC10N4 40 A, 400 V, three phase || 3000 rpm LXM32MC10N4 40 A, 480 V, three phase
• Electrical Connection : rotatable right-angled connectors
• Nominal Torque : 18.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 16.5 N.m LXM32MD85N4 32 A, 400 V, three phase || 16.5 N.m LXM32MD85N4 32 A, 480 V, three phase || 16.5 N.m LXM32MC10N4 40 A, 400 V, three phase || 16.5 N.m LXM32MC10N4 40 A, 480 V, three phase
• Device Short Name : BMH
• Continuous Stall Torque : 30 N.m LXM32.D72N4 24 A, 400 V, three phase || 30 N.m LXM32.D72N4 24 A, 480 V, three phase || 30 N.m LXM32MD85N4 32 A, 400 V, three phase || 30 N.m LXM32MD85N4 32 A, 480 V, three phase || 30 N.m LXM32MC10N4 40 A, 400 V, three phase || 30 N.m LXM32MC10N4 40 A, 480 V, three phase
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP111049EN
• Packaging Without Single Use Plastic : No
• Scip Number : a7df881f-135f-4256-b8c2-ea55d4c9a151
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Pvc Free : Yes
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 5665.0931033958
• Contractual warranty
• Warranty : 18 months
