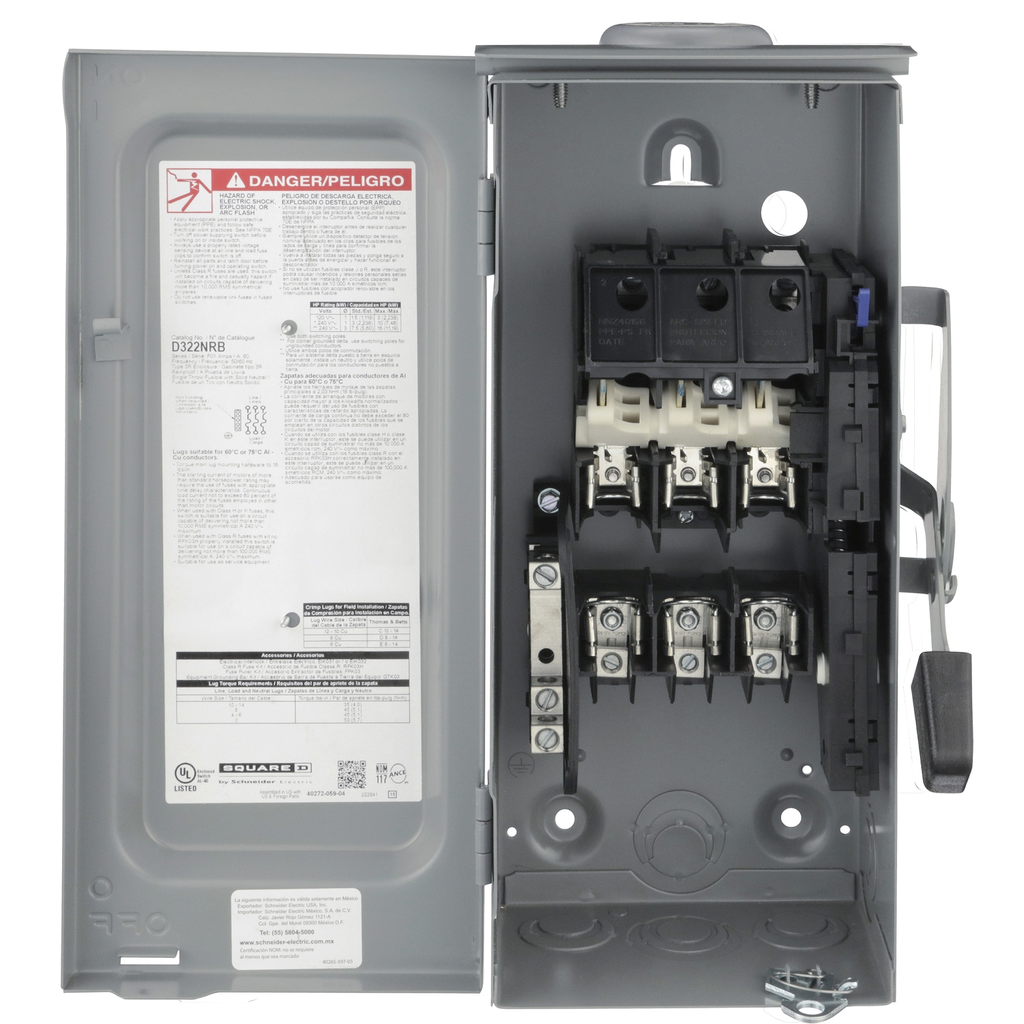

Safety switch, general duty, fusible, 60A, 3 poles, 15 hp, 240 VAC, NEMA 3R, bolt-on provision, neutral factory installed

Safety switch, general duty, fusible, 60A, 3 poles, 15 hp, 240 VAC, NEMA 3R, bolt-on provision, neutral factory installed

SQDD322NRB D322NRB 785901461289
169.37 / EACH
  • Country of Origin: USA
  • Current: 60 A
  • Depth: 123.70 mm, 4.87 in
  • Enclosure Material: Stainless Steel
  • Fuse Type: H, K Or R
  • Height: 14.88 in, 377.95 mm
  • Number of Phases: 3
  • Number of Poles: 3
  • Voltage: 240 V
  • Warranty Length: 18 mth
  • Weight: 4.5 kg, 9.92 lb
  • Width: 189.23 mm, 7.45 in
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 14.88 in (H), 7.45 in (W), 4.87 in (D). General Duty safety switches come with an 18 months warranty.
  • Product Description
  • Specifications
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 14.88 in (H), 7.45 in (W), 4.87 in (D). General Duty safety switches come with an 18 months warranty.
  • Complementary
    • Width : 7.45 in (189.23 mm)
    • Tightening Torque : 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) AWG 14...AWG 10) || 35 lbf.in (3.95 N.m) AWG 14...AWG 10) || 45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) AWG 8) || 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) AWG 6...AWG 4) || 50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) AWG 3)
    • Wiring Configuration : 4-wire (3PH + G)
    • Height : 14.88 in (377.95 mm)
    • Fuse Type : H, K or R
    • Mounting Type : Surface
    • Short Circuit Current Rating : 100 kA maximum depending on fuse H, K or R
    • Depth : 4.87 in (123.70 mm)
    • Wire Size : AWG 12...AWG 3 aluminium || AWG 14...AWG 3 copper
    • Product Weight : 9.92 lb(US) (4.5 kg)
    • Electrical Connection : Lugs
  • Ordering And Shipping Details
    • Returnability : Yes
    • Discount Schedule : DE1A
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : US
    • Category : 00106 - D & DU SW,NEMA3R, 30-200A
    • GTIN : 00785901461289
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Device Application : Residential
    • Number Of Poles : 3
    • Factory Installed Neutral : Neutral (factory installed)
    • Product : Single Throw Safety Switch
    • Motor Power Hp : 1.5 hp 120 V at AC 60 Hz for 1 phase conforming to NEC 240.6 || 3 hp 120 V at AC 60 Hz for 3 phase conforming to NEC 430.52 || 3 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 || 7.5 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 || 10 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52 || 15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52
    • Current Rating : 60 A
    • Phase : 3 phase
    • Enclosure Rating Nema : NEMA 3R
    • Disconnect Type : Fusible disconnect switch
    • Duty Rating : General duty
    • Voltage Rating : 240 V AC
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Pvc Free : Yes
    • Mercury Free : Yes
    • EU RoHs Directive : Compliant
    • REACh Free Of SVHC : Yes
  • Environment
    • Certifications : UL listed file E2875
