Safety switch, general duty, fusible, 100A, 3 poles, 30 hp, 240 VAC, NEMA 3R, bolt-on provision, neutral factory installed

Safety switch, general duty, fusible, 100A, 3 poles, 30 hp, 240 VAC, NEMA 3R, bolt-on provision, neutral factory installed

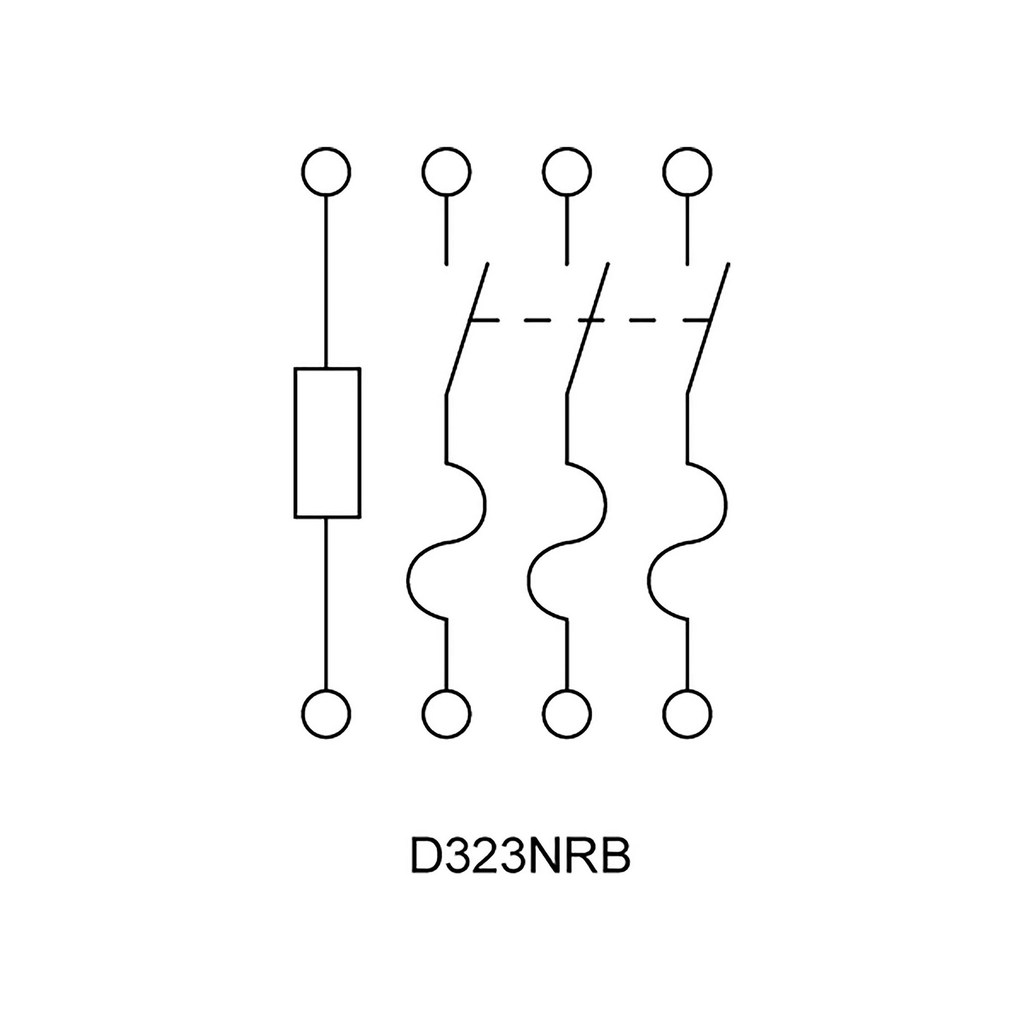

SQDD323NRB D323NRB 785901461401
313.37 / EACH
  • Country of Origin: USA
  • Current: 100 A
  • Depth: 165.10 mm, 6.5 in
  • Enclosure Material: Stainless Steel
  • Fuse Type: H, K Or R
  • Height: 17.5 in, 444.50 mm
  • Number of Phases: 3
  • Number of Poles: 3
  • Voltage: 240 V
  • Warranty Length: 18 mth
  • Weight: 17.00 lb, 7.71 kg
  • Width: 10.5 in, 266.70 mm
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 100A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 1, copper & AWG 12 AWG 1, aluminum. This switch is certified to UL standards. Dimensions for this product are 10.5 in (H), 10.5 in (W), 6.5 in (D). General Duty safety switches come with an 18 months warranty.
  • Product Description
  • Specifications
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 100A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 1, copper & AWG 12 AWG 1, aluminum. This switch is certified to UL standards. Dimensions for this product are 10.5 in (H), 10.5 in (W), 6.5 in (D). General Duty safety switches come with an 18 months warranty.
  • Ordering And Shipping Details
    • Discount Schedule : DE1A
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901461401
    • Country Of Origin : US
    • Category : 00106 - D & DU SW,NEMA3R, 30-200A
  • Offer Sustainability
    • EU RoHs Directive : Compliant
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • Pvc Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Certifications : UL listed file E2875
  • Main
    • Voltage Rating : 240 V AC
    • Duty Rating : General duty
    • Number Of Poles : 3
    • Product : Single Throw Safety Switch
    • Motor Power Hp : 7.5 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 || 15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 || 15 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52 || 30 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52
    • Enclosure Rating Nema : NEMA 3R
    • Phase : 3 phase
    • Device Application : Residential
    • Disconnect Type : Fusible disconnect switch
    • Current Rating : 100 A
    • Factory Installed Neutral : Neutral (factory installed)
  • Complementary
    • Height : 17.5 in (444.50 mm)
    • Wire Size : AWG 14...AWG 1 copper || AWG 12...AWG 1 aluminium
    • Mounting Type : Surface
    • Tightening Torque : 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) AWG 14...AWG 10) || 35 lbf.in (3.95 N.m) AWG 14...AWG 10) || 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) AWG 8) || 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) AWG 6...AWG 4) || 50 lbf.in (5.65 N.m) AWG 3...AWG 1)
    • Width : 10.5 in (266.70 mm)
    • Wiring Configuration : 4-wire (3PH + G)
    • Electrical Connection : Lugs
    • Product Weight : 17.00 lb(US) (7.71 kg)
    • Depth : 6.5 in (165.10 mm)
    • Short Circuit Current Rating : 100 kA maximum depending on fuse H, K or R
    • Fuse Type : H, K or R
