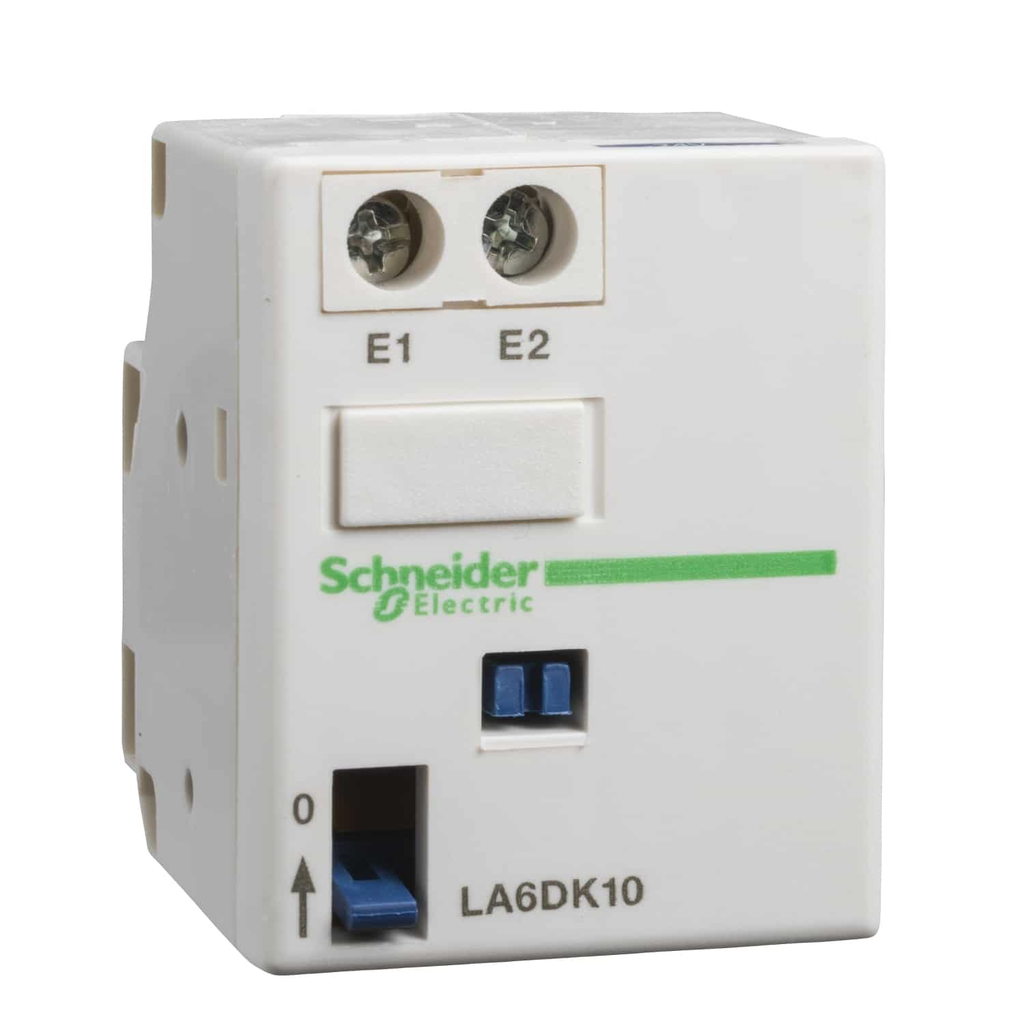

TeSys Deca mechanical latch block, for contactors LC1D40-D65(4P AC) and LP1D40-65(4P DC). Electrical latching and unlatching is performed applying a 110…127V DC/AC control voltage pulse. Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. Multi standards certified (IEC, UL, CSA), Sustainability compliant.

• Conformance Attributes
• Product Certifications : CSA, UL
• Complementary Attributes
• Uc Control Circuit Voltage : 110/127 V AC 50/60 Hz, 110/127 V DC
• Maximum Operating Rate : 1200 cyc/h
• Ui Rated Insulation Voltage : 690 V IEC 60947-5-1
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Tripping Control : electrical, manual
• Carbon Footprint Of The Distribution Phase A4 : 0.020112505042928736, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.178431706032963
• Carbon Footprint Of The Installation Phase A5 : 0.013852101990986205, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.5920425743346666
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 kg CO2 eq., 3.1606
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 1
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Use Carbon Footprint : 3.1606
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2011001
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1936
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• China Rohs Label : 3
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Energy Efficiency Optimized : False
• Mechanical Durability : 500000 cycles
• Mounting Location : front side
• On Load Factor : 10 %
• Power Required In Va : 25 AC
• Power Required In W : 30 W DC
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : mechanical latch block
• Protective Treatment : THIEC 60068
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : No
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Control Circuit Voltage 4 : 110/127 V
• Ip Protection 21 : IP2XVDE 0106
• Control Circuit Voltage 4 Control Circuit Voltage : 110/127 V
• Pep Code : ENVPEP2011001EN
• Database Version : 2022-01
• Pep Verification Date : 2025-06-17
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To hold mechanilly the contactor in closed position with contactor coil not powered during a running time between a few minutes and several hours over a period of at least 20 years， control circuit voltage to 42/48 V AC or 42/48 V DC
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 70
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential In 2 : 49
• Offer Owner Code : 190788
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2 : 3.1524
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 2 : 3.1606
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 : 606.91
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 2 : 22.321
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 2 : 81.925
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 : 663.02
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 56.111
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 606.91
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 56.111
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Product Compatibility : LC1D40 3 phases + neutral AC, LP1D40 3 phases + neutral DC, LP1D65 3 phases + neutral DC, LC1D65 3 phases + neutral AC
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 3.9650388874015445
• Ambient Air Temperature For Operation : -25-55 °C
• Ambient Air Temperature For Storage : -40-80 °C
• Circularity Profile : ENVEOLI2011001
• Environmental Disclosure : ENVPEP2011001EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP2XVDE 0106
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2011001EN
• Pep Verification Date : 2025-06-17
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : mechanical latch block
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC002498
• ETIM 9 : EC002498
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
