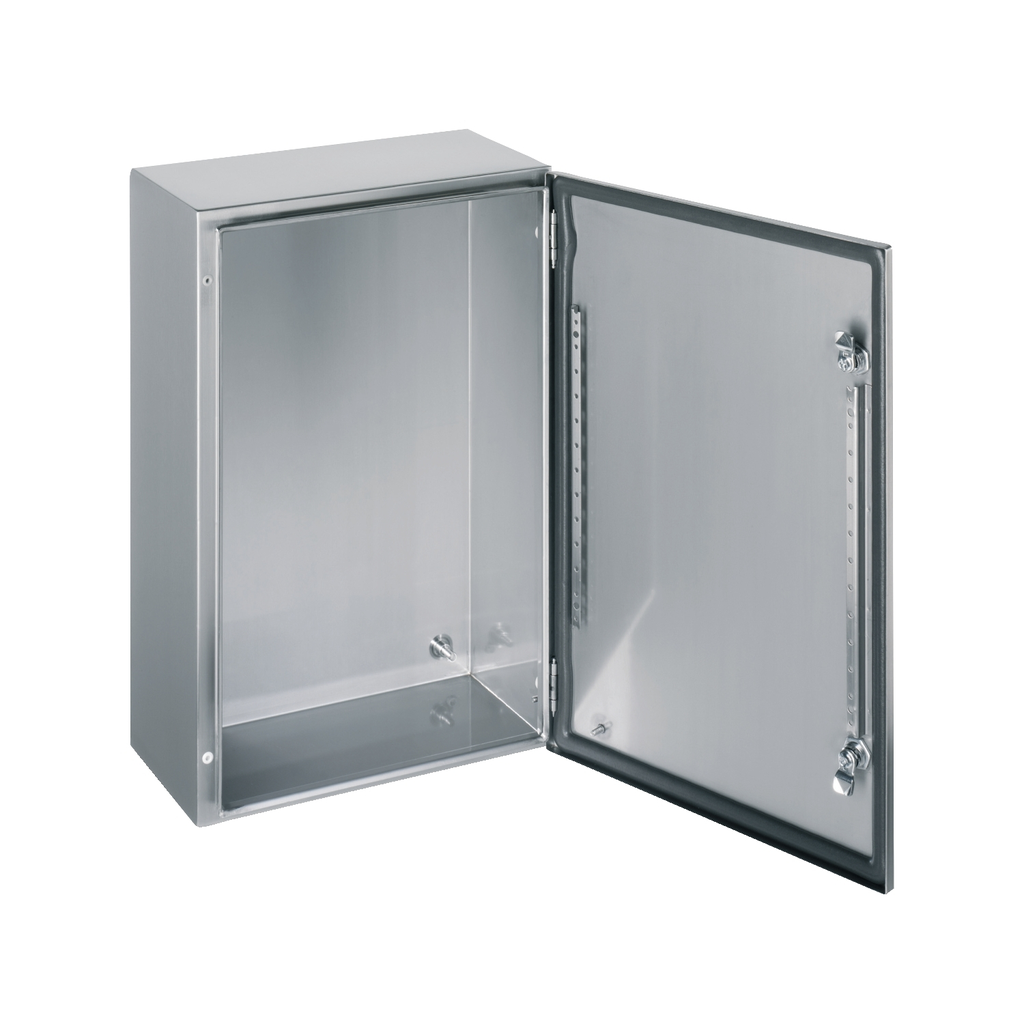

PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion. It has a nominal height, width and depth of 600mm, 600mm and 250mm respectively. The enclosure is made with Scotch-Brite® brushed surface finish. The enclosure consists of a body, a plain door and two locks. The door can be opened up to 120°, allowing easy access to the equipment inside. It is possible to change the opening side of the door (reversible). The door has a two lock points lock with a 3mm double-bar insert. The door can be removed for maintenance purposes. The door can be removed for maintenance purposes. It has a high resistance to dust and water with an IP66 rating (IEC60529) and it can withstand high impact due its IK10 (IEC62262). It is certified to UL 508 type A and CAN/CSA 22 standards.

• Physical Attributes
• Enclosure Nominal Height : 600 mm
• Enclosure Nominal Width : 600 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Body Type : single piece body, cross-shaped structure, gutter shaped front rail
• Device Composition : 1 body, 1 door, 2 lock door, 2 perforated vertical profile drilled door
• Material : body and door stainless steel 304L, lock zamak, hinge stainless steel
• Surface Finish : body and door Scotch-Brite® brushed, lock chromium plated
• Carbon Footprint Of The Distribution Phase A4 : 27.59995594759356, 28 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 36 kg CO2 eq., 36.49318467608472
• Carbon Footprint Of The Installation Phase A5 : 0.6900677208358087, 0.7 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 142 kg CO2 eq., 141.87411577499836
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Door Opening Side : reversible 120 °)
• Energy Efficiency Optimized : False
• Installation Accessory Type : wall-mounting
• Number Of Doors : front face 1
• Package Weight Lbs : 13.902 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : Spacial
• Removable Parts : door by hinges
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 207 kg CO2 eq.
• Type Of Gland Plate : without gland plate
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2109018EN
• Pep Verification Date : 2024-11-13
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure having the following dimensions H x L x D, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : JULES BARBALONGA
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 206.65732411951245
• Environmental Disclosure : ENVPEP2109018EN
• IP Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2109018EN
• Pep Verification Date : 2024-11-13
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : compact enclosure
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
