Schneider Electric at Mayer

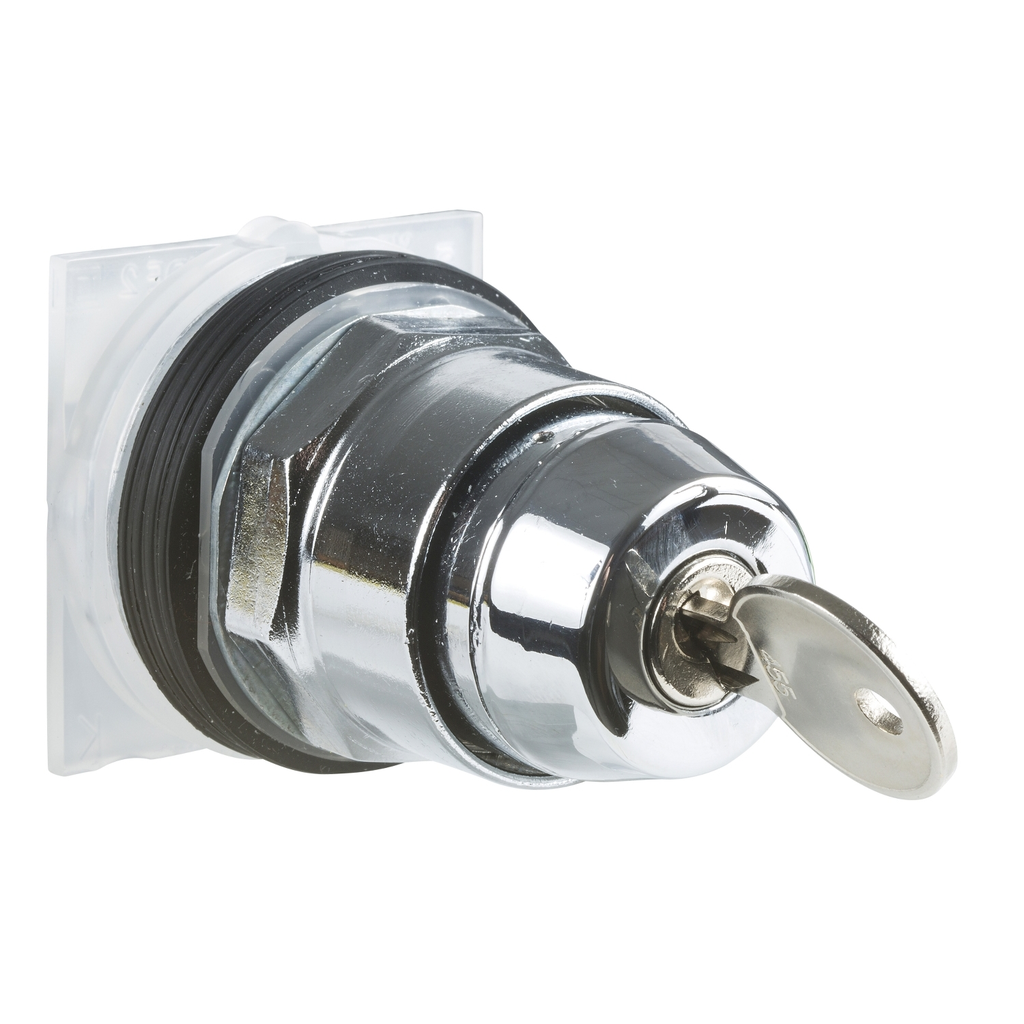

Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key 455, 2 positions, stay put

SELECTOR SWITCH OPERATOR 30MM

SQD9001KS11K1R 9001KS11K1R 785901831273
148.18 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Certifications: NEMA, UL 508
  • Net Weight: 0.207 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony 9001K, black key operated selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001K, black key operated selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 61140
    • Standards : JIS C 852 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C 4520
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Key Withdrawal Position : left
    • Contacts Type And Composition : without contact block
    • Key Number : 455
    • Bezel Material : metal
    • Cam Profile : 5
    • Product Compatibility : 9001KA1 side 1 or 2 || 9001KA2 side 1 or 2
    • Operator Position Information : 2 positions
    • Mechanical Durability : 500000 cycles
    • Mounting Diameter : 30 mm
    • Operator Profile : key switch
    • Type Of Operator : stay put
    • Shape Of Signaling Unit Head : octagonal
    • Net Weight : 0.207 kg
    • Size : 30 mm
    • Type Of Keylock : Ronis
    • Device Presentation : basic element
  • Specifications
    • Range Of Product : Harmony 9001K
    • Operator Profile : key switch
    • Type Of Operator : stay put
    • Product Or Component Type : head for key selector switch
    • Device Short Name : 9001K
