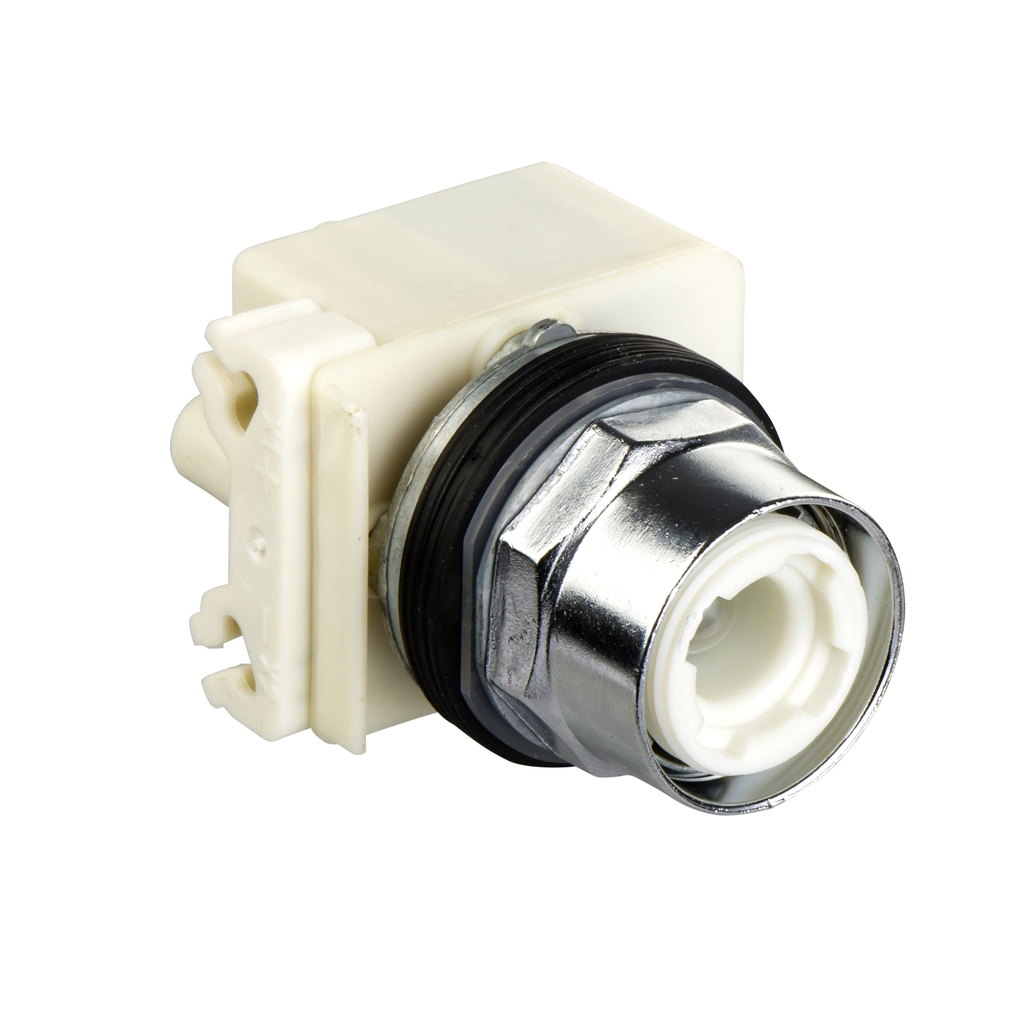

Illuminated selector switch head, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put, 110-120V

SQD 9001K11J1 SELECTOR SWITCH

SQD9001K11J1 9001K11J1 785901323082
189.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-Illuminated selector switch head, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put, 110-120V-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
This Harmony 9001K, illuminated selector switch head, without an handle, has 2 positions and operates with a stay-put mechanism. It is supplied with 110V-120V. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It features a dust and oil-resistant weatherproof enclosure for indoor and outdoor use. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. Dedicated contact blocks, cap, and handle need to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, illuminated selector switch head, without an handle, has 2 positions and operates with a stay-put mechanism. It is supplied with 110V-120V. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It features a dust and oil-resistant weatherproof enclosure for indoor and outdoor use. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. Dedicated contact blocks, cap, and handle need to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_CAD&p_File_name=9001K11J1_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_CAD&p_File_name=9001K11J1_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_CAD&p_File_name=9001K11J1_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_CAD&p_File_name=9001K11J1_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_CAD&p_File_name=9001K11J1_2D Right Side View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_CAD&p_File_name=9001K11J1_3D.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_2D&p_File_name=9001K11J1_2D.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001K11J1_2D&p_File_name=9001K11J1_2D.dxf
  • Light Block Supply
    • via transformer 120 V AC 50/60 Hz
    • via transformer 110 V AC 50/60 Hz
  • Enclosure Type
    • dust and oil resistant weatherproof enclosure indoor/outdoor
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : without cap
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : without cap
    • Contacts Type And Composition : without contact block
    • Device Short Name : K
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 272.155 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Sustainable Packaging : Yes
    • Type Of Operator : maintained
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=461297&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
