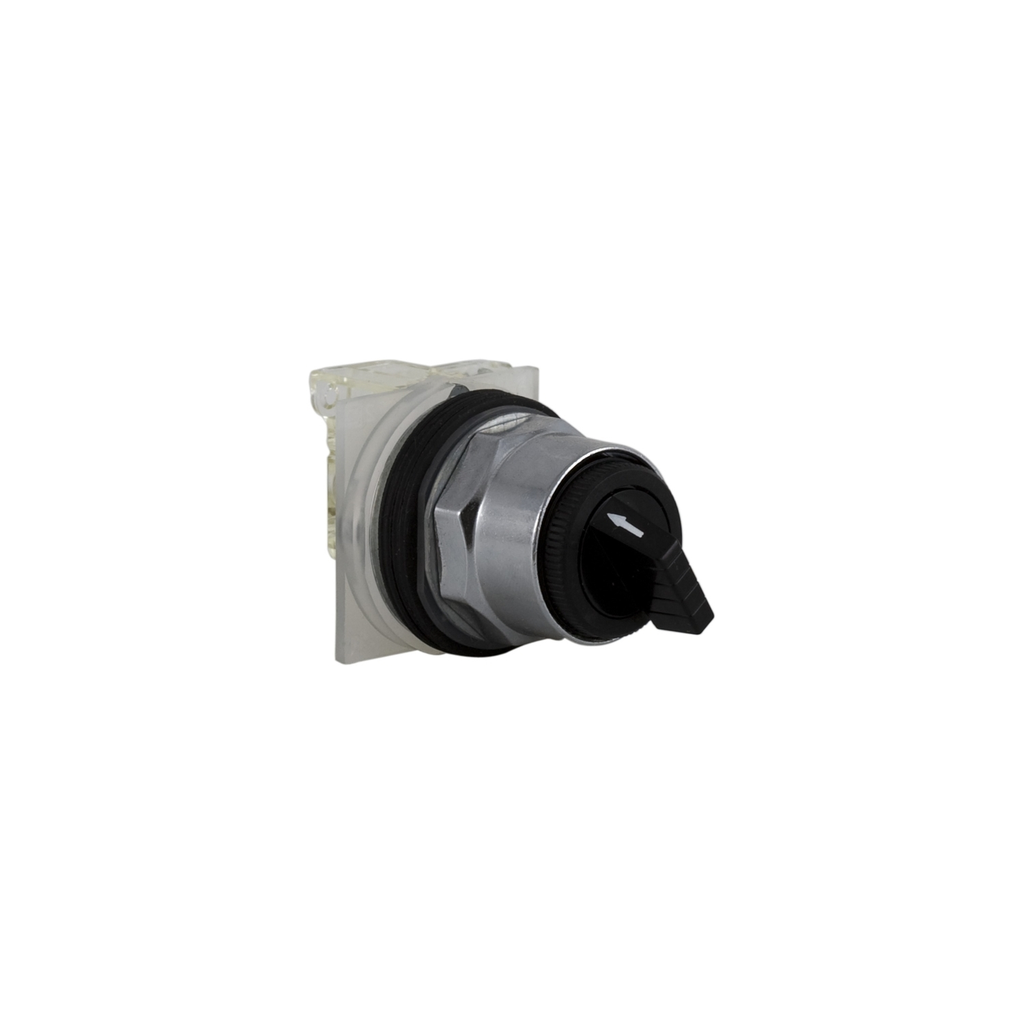

This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black standard handle knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions maintained operator and uses screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

• Features
• Improved security thanks to finger-safe contact blocks and light modules
• Robustness to withstand the harshest environments
• Easy, secure mounting system
• Automatic self-grounding operators without additional wiring
• A large metal set of accessories to customize your product
• Single screw Contact Block Fastening
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : black
• Size : 30 mm
• Conformance Attributes
• Product Certifications : UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Operator Profile : standard handle, black standard knob
• Type Of Operator : stay put, maintained
• Carbon Footprint Of The Distribution Phase A4 : 0.08097046505983335, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.3288435929098725
• Carbon Footprint Of The Installation Phase A5 : 0.0011046677460343924, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.8168889954896263
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : metal
• Cap Operator Or Lens Color : black
• Contacts Type And Composition : 1 C/O
• Device Short Name : K
• Mechanical Durability : 0.5 Mcycles
• Mounting Diameter : 30 mm
• Operator Position Information : 2 positions
• Package Weight Lbs : 149.686 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001K
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Connections Terminals : screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Medium Desc : Selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 2 positions, Cam E, stay put, 1 CO
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2503027EN
• Database Version : 2024-01
• Pep Verification Date : 2025-03-26
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; Mexico, MX
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Connections Terminals3 : screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1.2278077212053664
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Nema Degree Of Protection : NEMA 3R/6/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• Pep Verification Date : 2025-03-26
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
