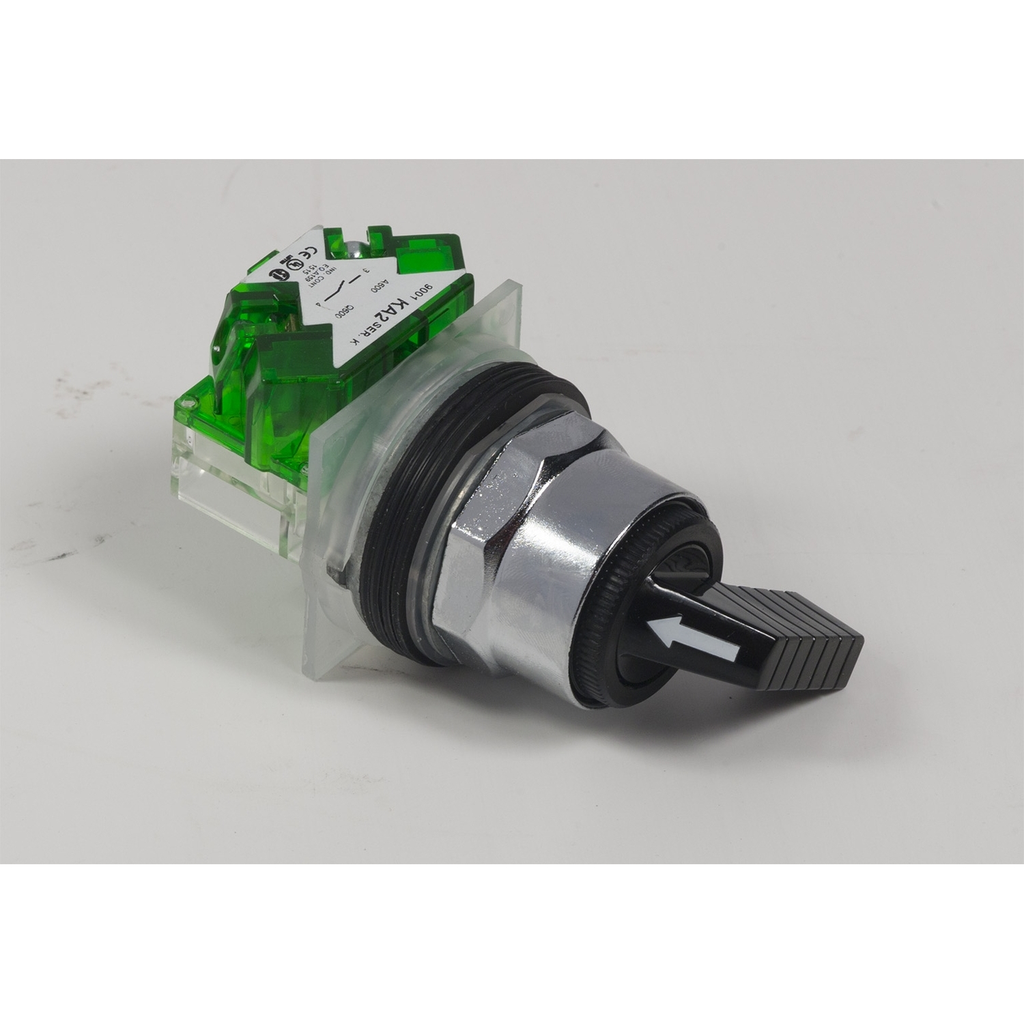

This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a black gloved hand knob. It is easily installed into a standard 30mm diameter panel cu

• Connections Terminals
• screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=9001KS11FBH5_3DCAD&p_File_name=9001KS11FBH5.STEP
• https://download.schneider-electric.com/files?p_Doc_Ref=9001KS11FBH5_3DCAD&p_File_name=9001KS11FBH5_2D-back.dwg
• https://download.schneider-electr
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Accessories
• 9001KN201
• 9001KN202
• Operator Profile
• black gloved hand knob

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : metal
• Cam Profile : 5
• Device Short Name : K
• Mounting Diameter : 30 mm
• Operator Position Information : 2 positions
• Package Weight Lbs : 138.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001K
• Returnability : Yes
• Sustainable Packaging : Yes
• Type Of Operator : maintained
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503027EN
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001K
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680254&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Overview Attributes
• Device Presentation : complete product
