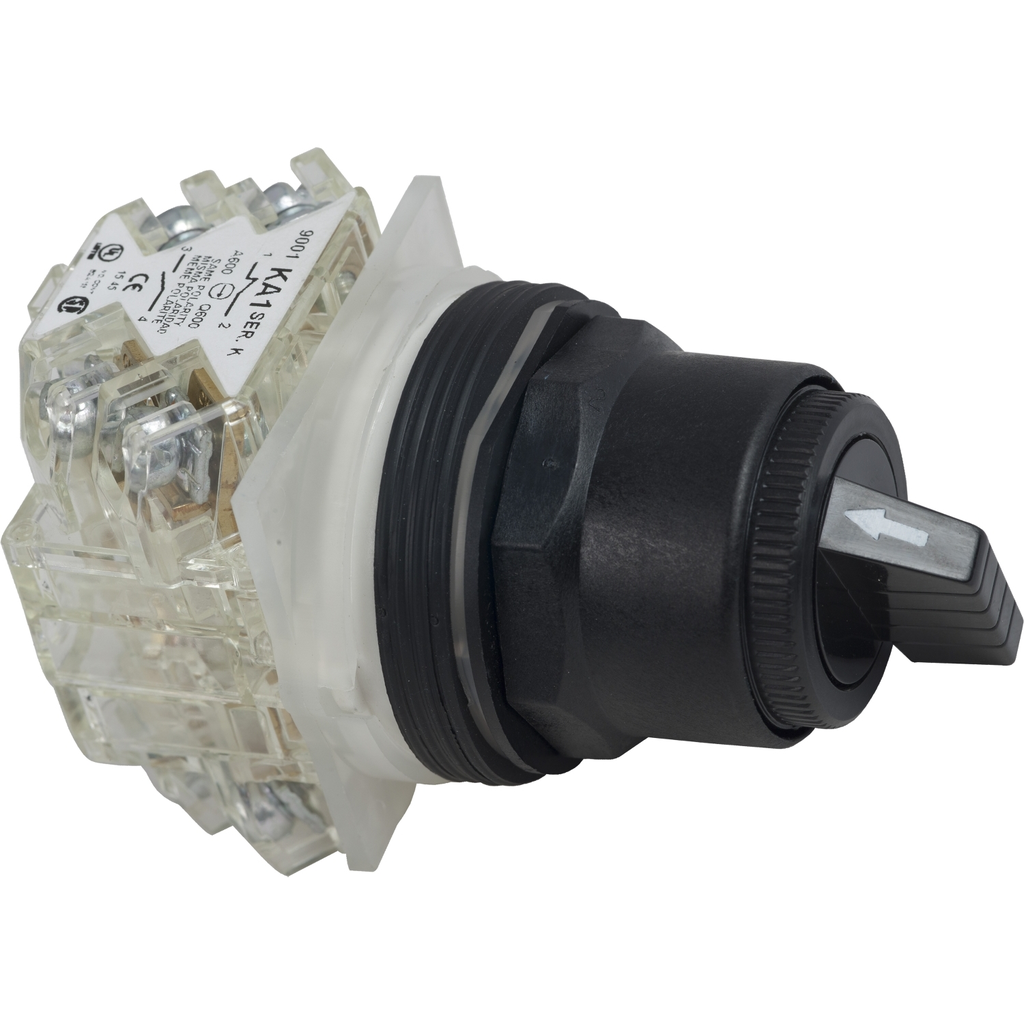

This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

• Features
• Improved security thanks to finger-safe contact blocks and light modules
• Robustness to withstand the harshest environments
• Easy, secure mounting system
• Automatic self-grounding operators without additional wiring
• A large plastic set of accessories to customize your product
• Single screw Contact Block Fastening
• Complies with IEC, UL, CSA, EN and NOM standards
• CE approved
• Wide range of operating temperature from -25°C to 70°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : black
• Size : 30 mm
• Conformance Attributes
• Product Certifications : UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : plastic
• Cap Operator Or Lens Color : black
• Compatibility Code : 9001SK
• Contacts Type And Composition : 2 C/O
• Device Short Name : 9001SK
• Electrical Shock Protection Class : class II conforming to IEC 61140
• Mechanical Durability : 0.5 Mcycles
• Mounting Diameter : 30 mm
• Operator Position Information : 3 positions
• Operator Profile : standard handle
• Package Weight Lbs : 113.398 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : selector switch
• Protective Treatment : TC
• Range Of Product : Harmony 9001SK
• Returnability : Yes
• Sustainable Packaging : Yes
• Type Of Operator : stay put
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Medium Desc : Selector switch, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, stay put, 2 C/O
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2503027EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP65/IP66
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Nema Degree Of Protection : NEMA 3R/4X/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001SK
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
