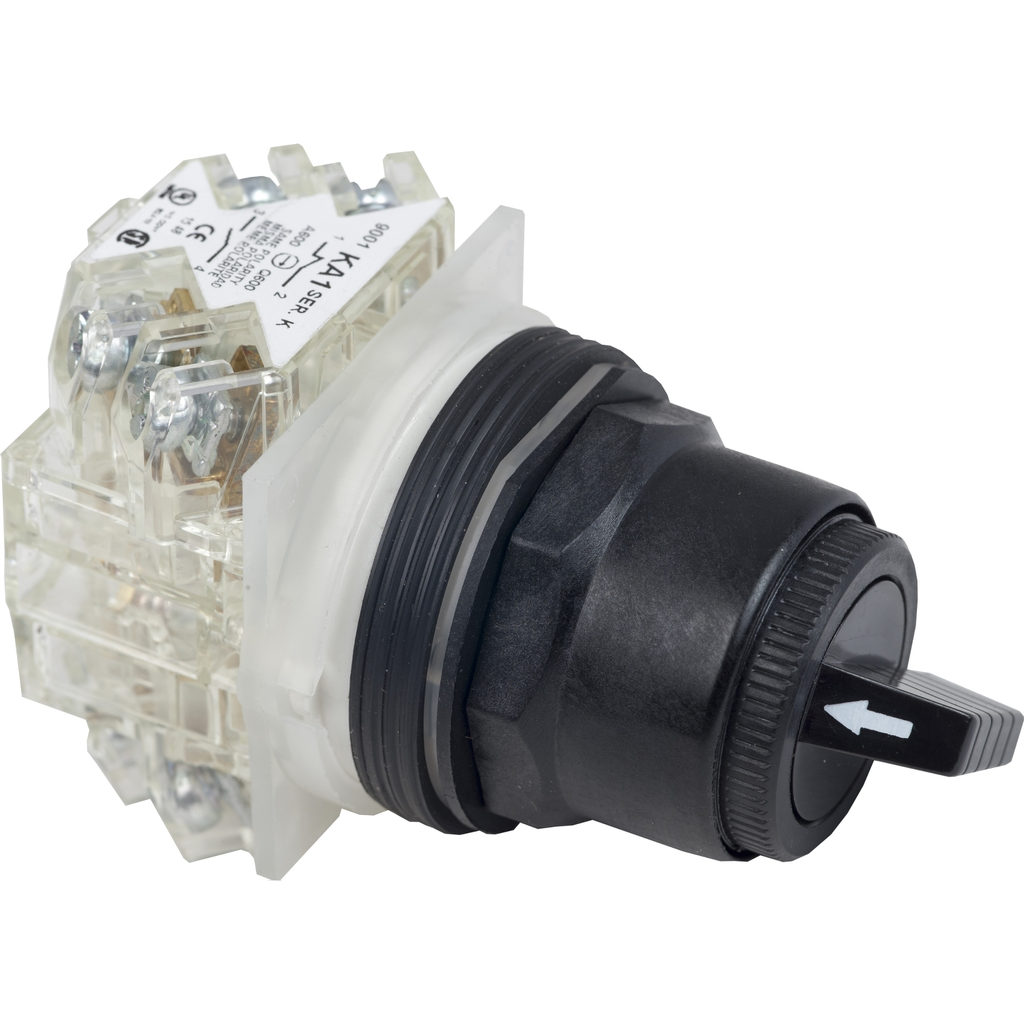

This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 2 positions maintained operator and is supplied with 2 x NO + 2 x NC contacts and screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=MCADID0005646_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005646_3D-CAD&p_File_name=mcadid0005646_3d-simplified_2D-top.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS11BH2&p_File_name=9001SKS11BH2.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS11BH2&p_File_name=9001SKS11BH2.DXF
• IP Degree Of Protection
• IP66 IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Electrical Shock Protection Class
• class II conforming to IEC 61140
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : plastic
• Cam Profile : 5
• Compatibility Code : 9001SK
• Device Short Name : 9001SK
• Mounting Diameter : 30 mm
• Operator Position Information : 2 positions
• Package Weight Lbs : 108.862 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001SK
• Returnability : No
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Spare part relationship
• Pep Code : ENVPEP2503027EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001SK
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=679916&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Overview Attributes
• Device Presentation : complete product
