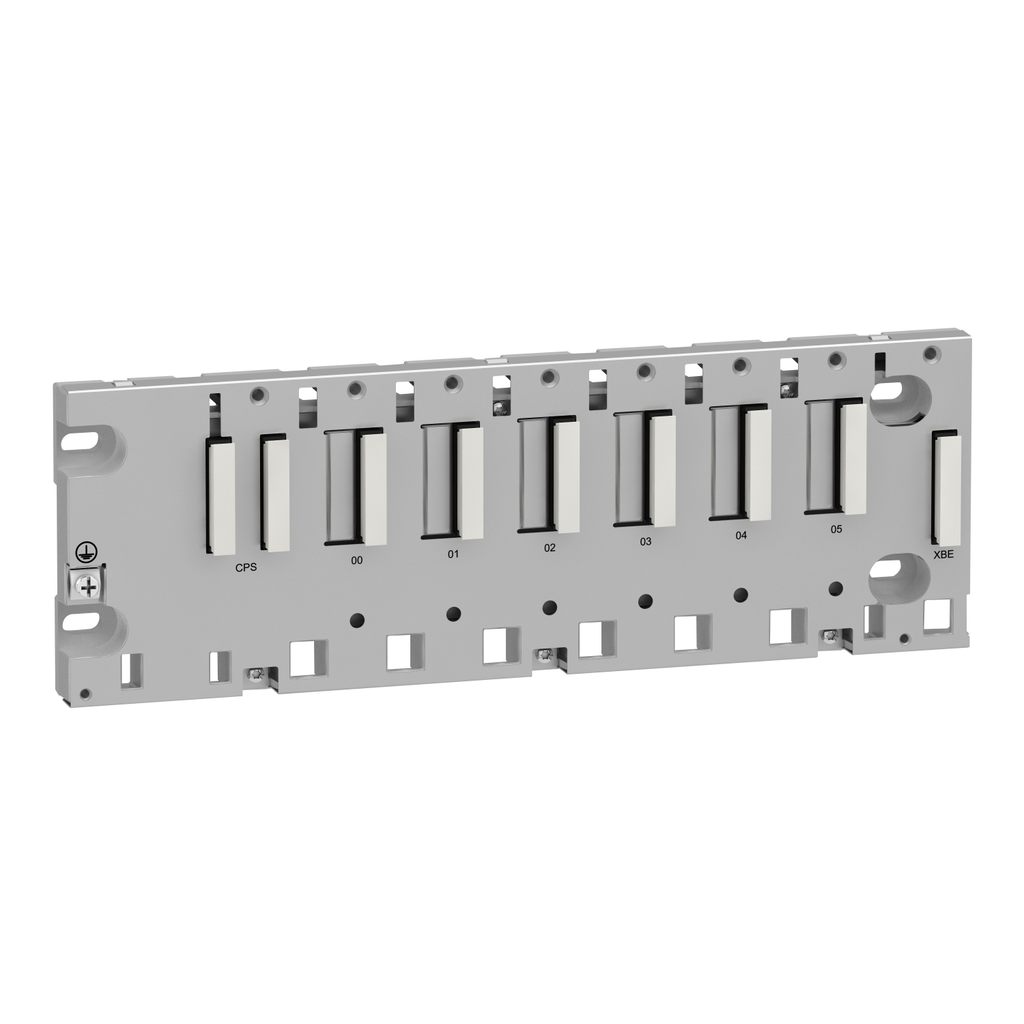

Backplane, Modicon X80, 6 slots, panel, mounitng plate or DIN rail mounting, ruggedized

H 6 SLOTS BACKPLANE

SQDBMXXBP0600H BMXXBP0600H 3595864009377
314.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Backplane, Modicon X80, 6 slots, panel, mounitng plate or DIN rail mounting, ruggedized-1
  • Depth: 19 mm
  • Warranty Length: 18 mth
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Features
    • Same backplane used by Modicon M340, Modicon M580, and X80 modules
    • Stable in-rack module mounting way
    • Hot swapable feature for most I/O modules
    • Easy Quantum modernization
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
    • Standards : EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Environmental Characteristic : gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2
    • Fixing Mode : by 4 M4/M5/M6 screws panel, by 4 M4/M5/M6 screws mounting plate, by clips 35 mm symmetrical DIN rail
    • Carbon Footprint Of The Distribution Phase A4 : 0.1110627273, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.314334053
    • Carbon Footprint Of The Installation Phase A5 : 0.0082042235, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 8.2034242424
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 72 kg CO2 eq., 72.3739130435
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-19
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2203018EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Electrical Connection : 1 connector (XBE) expansion module
    • Number Of Slots : 6 bus X
    • Package Weight Lbs : 844.0 g
    • Power Consumption In W : 1.68 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : ruggedized backplane
    • Product Specific Application : for severe environments
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 81 kg CO2 eq.
    • Medium Desc : Backplane, Modicon X80, 6 slots, panel, mounitng plate or DIN rail mounting, ruggedized
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2203018EN
    • Database Version : 2020-12
    • Pep Verification Date : 2022-04-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: France
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : BMXP34 processor, BMXCPS power supply, I/O module, specific application module
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 81.0109382897
    • Ambient Air Temperature For Operation : -25-70 °C
    • Circularity Profile : ENVEOLI2203018EN
    • Environmental Disclosure : ENVPEP2203018EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % without condensation
    • Pep Code : ENVPEP2203018EN
    • Pep Verification Date : 2022-04-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : ruggedized backplane
    • Range Of Product : Modicon X80
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 19 mm
