Reversing ultra compact starter, TeSys Hybrid, 3P, 500VAC, 3kW at 400V, 24VDC, Spring terminal

Compact Starter_Rev 6.5A STD S

SQDLZ2H6X53BD LZ2H6X53BD 3606485421223
354.90 / EA
http://schema.org/OutOfStock

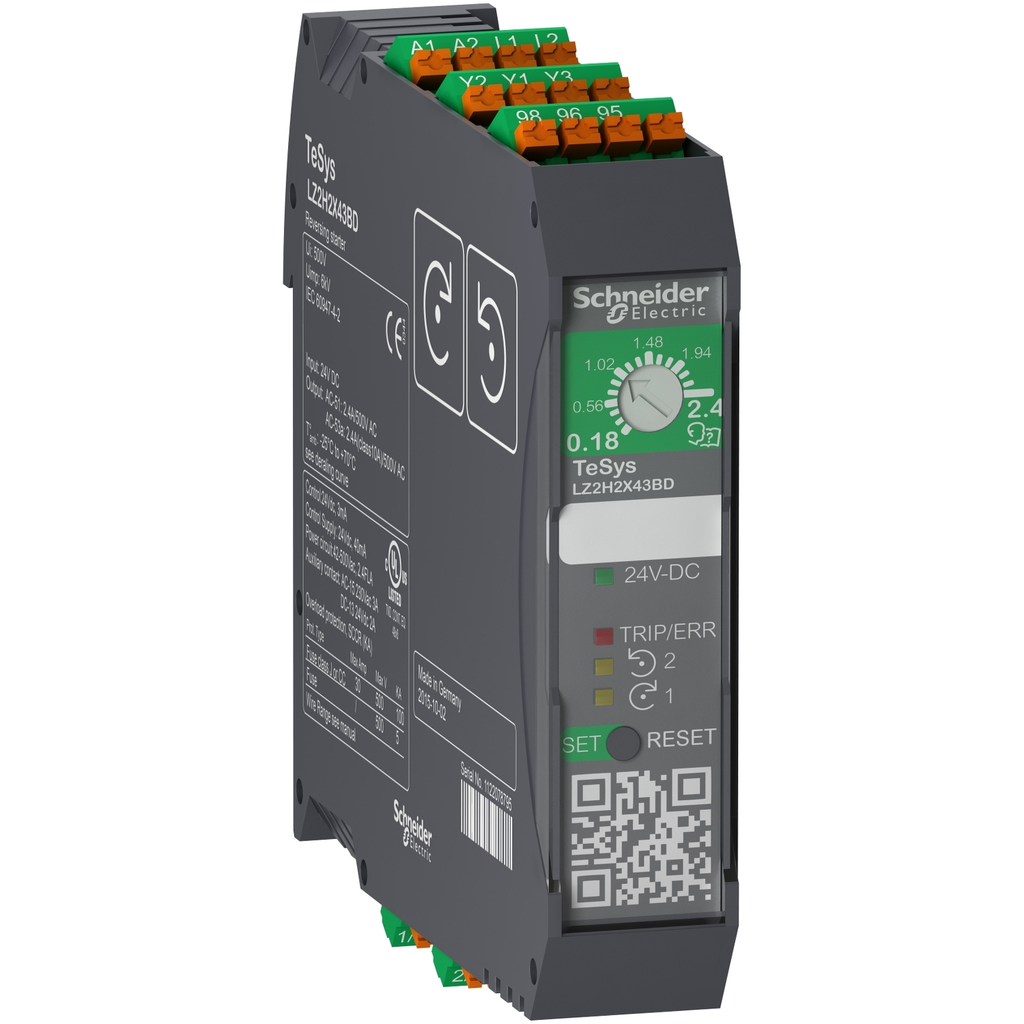

Mayer-DDS-Reversing ultra compact starter, TeSys Hybrid, 3P, 500VAC, 3kW at 400V, 24VDC, Spring terminal-1
TeSys H ultra compact reverse starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
QTY
  • Product Description
  • Features
  • Specifications
TeSys H ultra compact reverse starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Certifications : cULus, CE
  • Complementary Attributes
    • Maximum Horse Power Rating : 1 hp 200 V AC, 1.5 hp 230 V AC, 3 hp 460 V AC
    • Maximum Operating Rate : 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 %
    • IE Rated Operational Current : 6.5 A 500 V AC-53A, 9 A 500 V AC-51, 5 A 500 V AC-53A mounting side by side, 7 A 500 V AC-51 mounting side by side
    • Control Circuit Voltage Limits : 19.2...30 V DC
    • UC Control Circuit Voltage : 24 V DC
    • UE Rated Operational Voltage : 500 V AC
    • UI Rated Insulation Voltage : 500 V AC 50/60 Hz
    • UIMP Rated Impulse Withstand Voltage : 6 kV
  • Important Information Attributes
    • Current Consumption : <= 40 mA 24 V DC, <= 40 mA 24 V DC, <= 40 mA 24 V DC
    • Motor Power KW : 1.5 kW 220 V AC 0.65, 1.5 kW 230 V AC 0.65, 2.2 kW 380 V AC 0.65, 3 kW 400 V AC 0.65, 3 kW 415 V AC 0.65, 3 kW 440 V AC 0.65, 3 kW 500 V AC 0.65
    • Reset : manual, automatic reset, electrical reset
    • IE Rated Operational Current : 6.5 A 500 V AC-53A, 9 A 500 V AC-51, 5 A 500 V AC-53A mounting side by side, 7 A 500 V AC-51 mounting side by side
    • Connections Terminals : spring clamp terminals 1 0.2-2.5 mm² rigid, spring clamp terminals 1 0.25-2.5 mm² flexible - with cable end, spring clamp terminals 1 0.2-2.5 mm² flexible - without cable end
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1509013EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Device Short Name : LZ2H
    • Energy Efficiency Optimized : False
    • Motor Starter Type : direct on line
    • Package Weight Lbs : 254.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : reversing ultra-compact starter
    • Protective Treatment : TC
    • Range : TeSys
    • Returnability : No
    • Sustainable Packaging : No
    • Thermal Overload Class : class 10A IEC 60947-4-2
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1509013EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-30 °C without derating, -25-30 °C without derating, 30-70 °C with derating
    • EU ROHS Directive : Compliant By Exemption​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1509013EN
    • Environmental Disclosure : ENVPEP1509013EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1509013EN
  • General Attributes
    • Product Or Component Type : reversing ultra-compact starter
