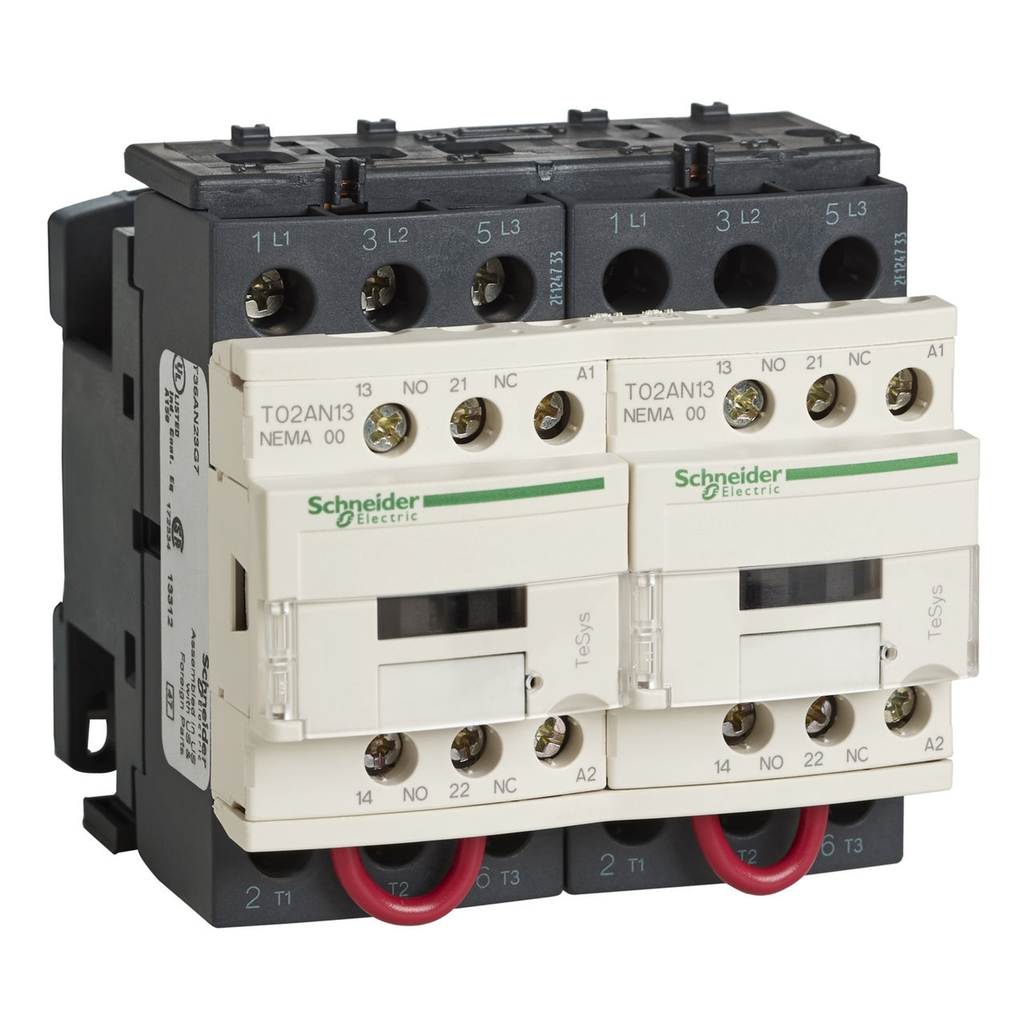

NEMA Contactor, TeSys N, reversing, Size 00, 9A, 2HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

NEMA Contactor, TeSys N, reversing, Size 00, 9A, 2HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

SQDT02AN23G7 T02AN23G7 785901127024
541.67 / EA
  • Certifications: CSA, UL Listed
  • Contact Configuration: 1 NO + 1 NC
  • Line Rated Current: 9 A
  • NEMA: 00
  • Number of Phases: 3
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This NEMA size 00 reversing contactor consists of contactors that are mechanically and electrically interlocked. This 3 pole reversing contactor mounts on 35mm DIN rail and has a 9 amperage continuous current rating. This contactor has 0.33 HP at 115 VAC and 1 HP at 230 VAC single phase ratings. The contactor also has ratings of 1.5 HP at 200 to 230 VAC and 2 HP at 460 and 575 VAC poly phase. The reversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.71 inches tall, 3.53 inches wide and 3.66 inches deep. It weighs 2.08 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
  • Product Description
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This NEMA size 00 reversing contactor consists of contactors that are mechanically and electrically interlocked. This 3 pole reversing contactor mounts on 35mm DIN rail and has a 9 amperage continuous current rating. This contactor has 0.33 HP at 115 VAC and 1 HP at 230 VAC single phase ratings. The contactor also has ratings of 1.5 HP at 200 to 230 VAC and 2 HP at 460 and 575 VAC poly phase. The reversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.71 inches tall, 3.53 inches wide and 3.66 inches deep. It weighs 2.08 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
  • Line Rated Current : 9 A
  • Nema Degree Of Protection : not rated (open device)
  • Poles Description : 3P
  • Contactor Application : reversing
  • Phase : 3 phase
  • Range Of Product : TeSys N
  • Control Circuit : common control circuit
  • Maximum Horse Power Rating : 1.5 hp 200 V AC || 1.5 hp 230 V AC || 2 hp 460 V AC || 2 hp 575 V AC
  • [Ue] Rated Operational Voltage : 600 V AC
  • Product Or Component Type : contactor
  • [Uc] Control Circuit Voltage : 120 V AC
  • Auxiliary Contact Composition : 1 NO + 1 NC
  • Nema Size : 00
  • Electrical Connection : screw clamp terminals
  • Product Certifications : UL Listed || CSA
