redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment

H REDUNDANT 24-48 VDC POWER SU

SQDBMXCPS4022H BMXCPS4022H 3606481179081
2169.59 / EA
http://schema.org/OutOfStock

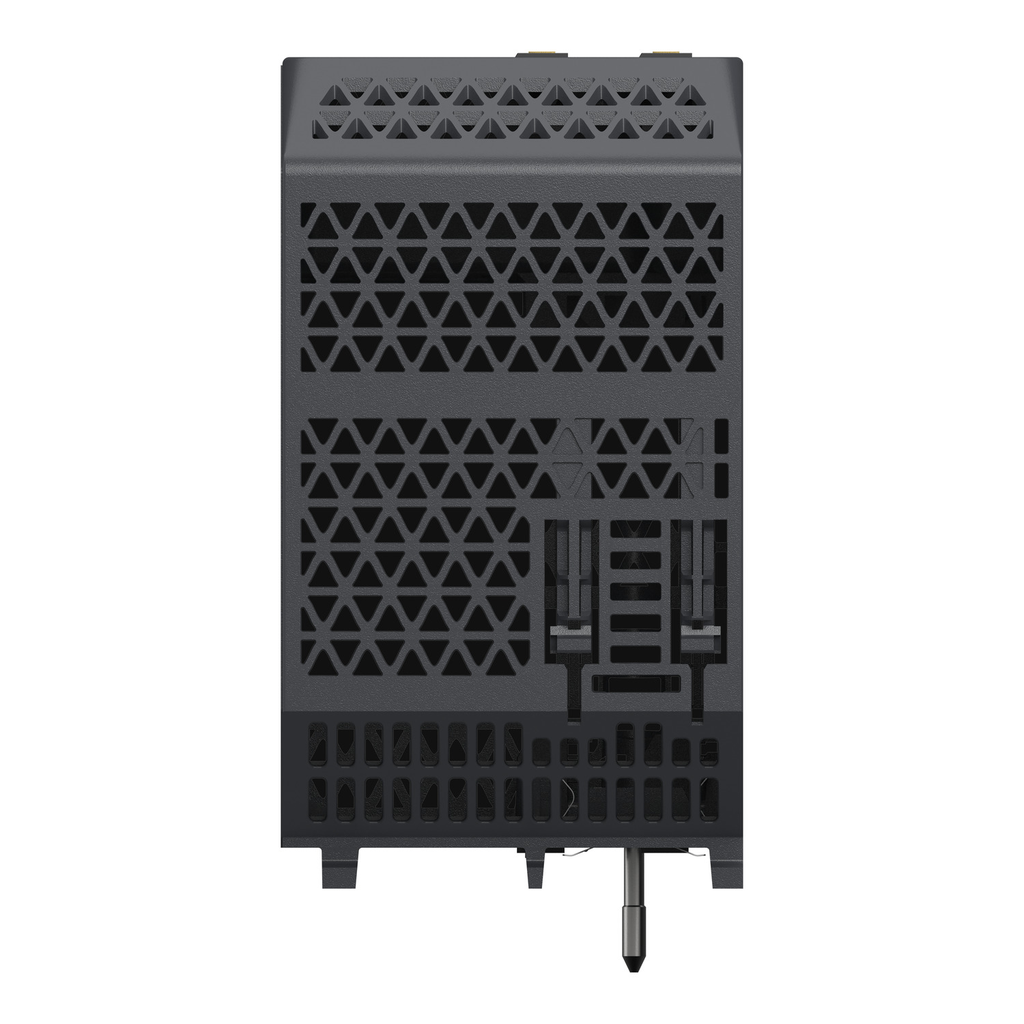

Mayer-DDS-redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment-2
  • Country of Origin: Indonesia
  • Dielectric Strength: 1500 V
  • Net Weight: 0.81 kg
  • Primary Voltage: ...48 V
  • Weight: 0.81 kg
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This redundant power supply module has a primary voltage of 24V to 48V DC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This redundant power supply module has a primary voltage of 24V to 48V DC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Immunity To Microbreaks : 1 ms
    • Standards : IEC 61131-2 || IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || IEC 60079-0
    • Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
    • Environmental Characteristic : gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 10-95 % without condensation
    • Protective Treatment : conformal coating
    • Ip Degree Of Protection : IP20
    • Dielectric Strength : 1500 V primary/ground || 1500 V primary/secondary
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2410045EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 41745a42-b2d7-4938-80f8-0738cea8ed1d
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2410045EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 467.2337794379028
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 25.55447502170535
    • Carbon Footprint Of The Distribution Phase [A4] : 0.9 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 495 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 1.4414198113750236
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 495.1826329551555
  • Complementary
    • Mtbf Reliability : 752000 H
    • Maximum Cable Distance Between Devices : 10 m || 15 m
    • Primary Voltage Limit : 18...62.4 V
    • It On Activation : 0.3 A.s 24 V || 0.4 A.s 48 V
    • Status Led : 1 LED (Green) presence of voltages (OK) || 1 LED (Green) redundancy OK || 1 LED (Green) power supply status
    • I²T On Activation : 1 A².s 24 V || 3 A².s 48 V
    • Input Current : 1.9 A 24 V || 1 A 48 V
    • Current At Secondary Voltage : 5.5 A 3.3 V DC I/O module logic power supply || 1.67 A 24 V DC I/O module power supply and processor
    • Insulation Resistance : >= 100 MOhm primary/ground || >= 100 MOhm primary/secondary
    • Net Weight : 0.81 kg
    • Control Type : RESET push-button cold restart
    • Maximum Power Dissipation In W : 8.5 W
    • Electrical Connection : 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth
    • Inrush Current : 60 A 48 V || 60 A 24 V
    • Protection Type : internal fuse not accessible primary circuit || overload protection secondary circuit || overvoltage protection secondary circuit || short-circuit protection secondary circuit
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 0.81 kg
    • Primary Voltage : 24...48 V
    • Range Of Product : Modicon X80
    • Product Or Component Type : power supply module
    • Function Available : temperature sensing || uptime duration || redundancy test || remaining lifetime || redundancy information
    • Secondary Power : 18 W 3.3 V DC -25-70 °C I/O module logic power supply || 40 W 24 V DC -25-70 °C I/O module power supply and processor if 3.3 V not loaded
    • Product Specific Application : for severe environments
    • Supply Circuit Type : DC
    • Product Compatibility : all backplane
