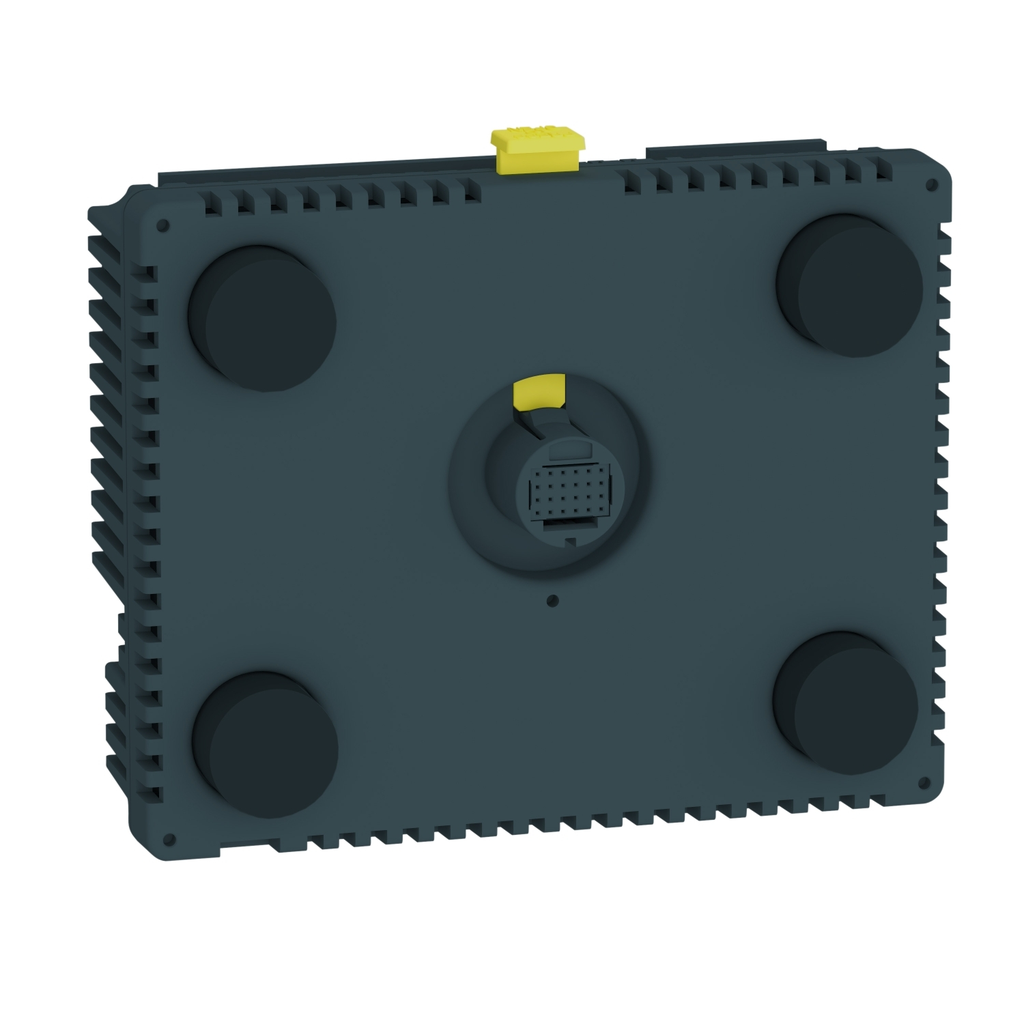

Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs +Ana 4 In/2 Out

SCU MIXED IO REAR MODULE

SQDHMISBC HMISBC 3595864175607
1347.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs +Ana 4 In/2 Out-1
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. This rear module controller panel provides 8/8 digital I/Os and 4/2 analogue I/Os. It supports Modbus, CANopen and Modbus TCP/IP downloadable protocols. It is designed with internal data storage of 128kB FRAM, flash NAND of 128MB and application run DRAM of 128MB. It is a controller panel with a rated supply voltage of 24V DC, supplied by external source with the limit ranges from 20.4V to 28.8V DC. It is an IP20 (rear panel) / IP65 (front panel) and NEMA 4X rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height) and weighs 0.398kg. It is certified by CULus, CUL, GOST, C-Tick, CSA, KCC. It meets UL 508, FCC Class A, EN 61131-2, WEEE directive 2002/96/EC, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01, RoHS, RoHS China SJ/T 11363-2006, IEC 61000-6-2 standards. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Integrated Connection Type : 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A, CANopen master bus - SUB-D 9
    • Maximum Cable Distance Between Devices : shielded cable <10 m fast input, shielded cable <100 m digital input, unshielded cable <50 m digital input
    • Maximum Input Frequency : 100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
    • Maximum Output Frequency : 100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
    • US Rated Supply Voltage : 24 V 20.4-28.8 V)DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, PB, SC
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Configurable Filtering Time : 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
    • Electromagnetic Compatibility : electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
    • Insulation Resistance : > 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth, > 10 MOhm between power supply and earth
    • Memory Description : flash NAND, 128 MB, internal data storage FRAM, 128 kB, application run DRAM, 128 MB
    • Number Of Common Point : 1 fast input (HSC mode), 1 digital input
    • Sensor Power Supply : 15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA, 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
    • Shock Resistance : 147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
    • Vibration Resistance : +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, 1 gn 9-150 Hz) IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.06512995186967789, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2353765025299272, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.17290381340244354
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 53 kg CO2 eq., 52.90949031223004
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 616 kg CO2 eq., 615.6461538461538
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-19
    • Device Type : HMI - Graphical display unit
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 7 year(s)
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1405010EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Environmental Characteristic : corrosive gas free
    • F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Fixing Mode : by 1 nut Ø 22 mm 1...6 mm thick panel
    • Halogen Free Status : Product contains halogen above thresholds
    • Isolation Between Channels And Internal Logic : 500 V DC
    • Number Of Pages : limited by internal memory capacity
    • Overvoltage Protection : with
    • Package Weight Lbs : 870.000 g
    • Processor Frequency : 333 MHz
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : controller
    • Range Of Product : Harmony SCU
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 669 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1405010EN
    • Pep Verification Date : 2023-11-28
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To provide 5.7" TFT Smart Display during 10 years and maximum use rate at 13W, based on below function:& 10 - 5.7 inch Touchscreen panel& 10 - Digital In/Out +Analog In/Out& 10 - Serial comunication interface (RS-232C/485))& 10 - USB2.0 Interface (Type-A, mini-B)& 10 - Ethernet interface& 10 - CANopen master bus& 10,in accordance with the relevant standards:& 10 - FCC Class A& 10 - EN 61131-2& 10 - UL 508& 10 - IEC 61000-6-2& 10 - CSA C22.2 No 213 Class I Division 2& 10 - ANSI/ISA 12-12-01
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Product contains halogen above thresholds
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Silicon Free : No
    • Carbon Footprint : 669.0290544261858
    • Circularity Profile : ENVEOLI1405010EN
    • Environmental Disclosure : ENVPEP1405010EN
    • F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Halogen Content Performance : Product contains halogen above thresholds
    • Nema Degree Of Protection : NEMA 4X front panel
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-85 % without condensation
    • Storage Altitude : 0-10000 m
    • Pep Code : ENVPEP1405010EN
    • Pep Verification Date : 2023-11-28
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : controller
    • Range Of Product : Harmony SCU
  • Output Attributes
    • Analogue Output Range : 0...20 mA/4...20 mA > 300 Ohm)open-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit
    • Discrete Output Current : 2 A 4 A)5 ms opening contact digital output, 2 A 4 A)2 ms closing contact digital output, 300 mA2 ms fast output (normal mode), 50 mA2 ms fast output (PWM or PTO mode)
    • Discrete Output Number : 2 fast output (normal mode) source, 6 digital output source
    • Discrete Output Voltage : 24 V DC 19.2...28.8 V)transistor, 24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay
    • Maximum Output Frequency : 100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
    • Analogue Output Number : 2 resistive load 12 bits + sign
  • Surge Protection And Filtering Attributes
    • Configurable Filtering Time : 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
  • Input Attributes
    • Analogue Input Number : 2 analog input, 2 RTDs
    • Analogue Input Range : 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %), -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
    • Analogue Input Type : RTD - 200...600 °C 16 bitsPt 100/Pt 1000, RTD - 50...200 °C 16 bitsNi 100/Ni 1000, RTD - 200...760 °C 16 bits thermocouple J), RTD - 240...1370 °C 16 bits thermocouple K), RTD 0...1600 °C 16 bits thermocouple R), RTD 200...1800 °C 16 bits thermocouple B), RTD 0...1600 °C 16 bits thermocouple S), RTD - 200...400 °C 16 bits thermocouple T), RTD - 200...900 °C 16 bits thermocouple E), RTD - 200...1300 °C 16 bits thermocouple N)
    • Discrete Input Current : 7.83 mA fast input, 5 mA digital
    • Discrete Input Number : 2 fast input (normal mode) IEC 61131-2 Type 1, 6 digital input IEC 61131-2 Type 1
    • Input Output Number : 2 fast input FI0...FI1, 2 fast output FQ0...FQ1, 6 digital input DI0...DI5, 6 digital output DQ0...DQ5
    • Maximum Input Frequency : 100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
    • Discrete Input Voltage : 24 V DC sink or source (positive/negative)
  • Batteries & Runtime Attributes
    • Removable Battery : USER_REPLACEABLE
  • Overview Attributes
    • Device Presentation : basic element
