RS485 shielded cable to build safety islands with safe com. modules - 10 m

RS485 Cable 10 Meters

SQDTSXSCMCN010 TSXSCMCN010 3606480795916
36.83 / EA
http://schema.org/OutOfStock

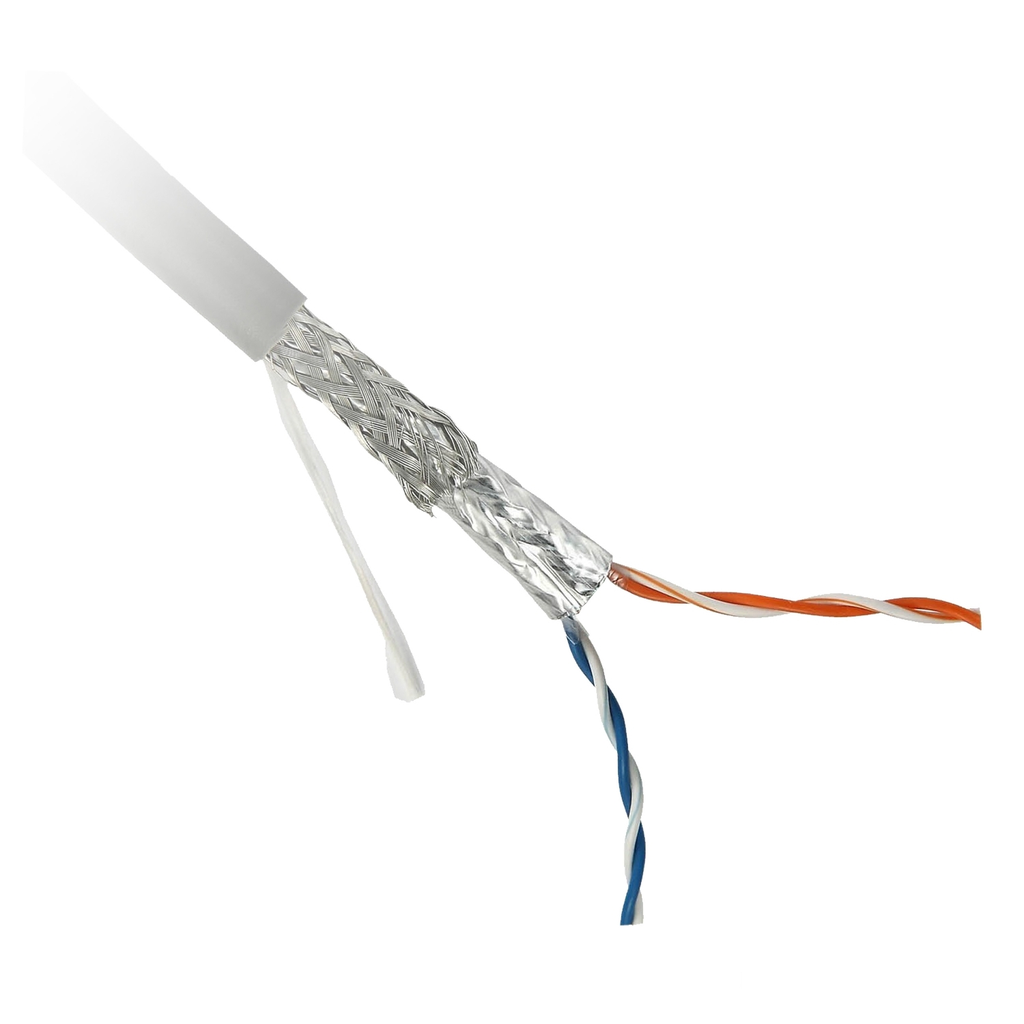

Mayer-DDS-RS485 shielded cable to build safety islands with safe com. modules - 10 m-1
  • Cable Length: 10 m
  • Country of Origin: Czechia
This RS485 shielded cable is used to connect 2 safe communication expansion modules. It is designed to link two safe communication modules, in order to create decentralized cabinets of remote IO. This cable figures 2 pairs of twisted conductors with shielding with flying lead connection. RS485 serial interface shielded cables are used between the Bus expansion communication modules to create up to six decentralized safety-related islands with a maximum of 50 meters between each island. It weighs 0.92kg. It measures 10m. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
QTY
  • Product Description
  • Features
  • Specifications
This RS485 shielded cable is used to connect 2 safe communication expansion modules. It is designed to link two safe communication modules, in order to create decentralized cabinets of remote IO. This cable figures 2 pairs of twisted conductors with shielding with flying lead connection. RS485 serial interface shielded cables are used between the Bus expansion communication modules to create up to six decentralized safety-related islands with a maximum of 50 meters between each island. It weighs 0.92kg. It measures 10m. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cable Length : 10 m
  • Complementary Attributes
    • Ue Rated Operational Voltage : 300 Vrms
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Insulation Resistance : 24 MOhm nominal conductor DC resistance, 2.2 MOhm nominal outer shield DC resistance
    • Type Of Cable : twisted pair white/blue, twisted pair orange/white
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Serviceability : No
    • Traceability : No
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1909
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Attenuation : 1.97 dB
    • Awg Gauge : AWG 24
    • Cable Insulation Material : PE (polyethylene)
    • Cable Shielding Type : S/FTP
    • Delay Skew : 1.54 ns
    • Electrical Connection : flying leads
    • Nominal Velocity Propagation : 66 %
    • Permissible Current : 2.1 A
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Range Of Product : Preventa Safety automation
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category : cabling accessory
    • Accessory Separate Part Destination : RS485 safe communication expansion module
    • Accessory Separate Part Type : connecting cable
    • Warranty In Months : 18
    • Offer Owner Code : 190786
    • Pn : 1
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -20-80 °C, -20-80 °C
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : XPSMCMCO0000S...
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Range Of Product : Preventa Safety automation
  • ETIM
    • ETIM 8 : EC002584
    • ETIM 9 : EC002584
  • Specifications
    • Country of Origin : Czechia
