processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet

CPU340-20 MODBUS ETHERNET

SQDBMXP342020 BMXP342020 3595863910711
2801.47 / EA
http://schema.org/OutOfStock

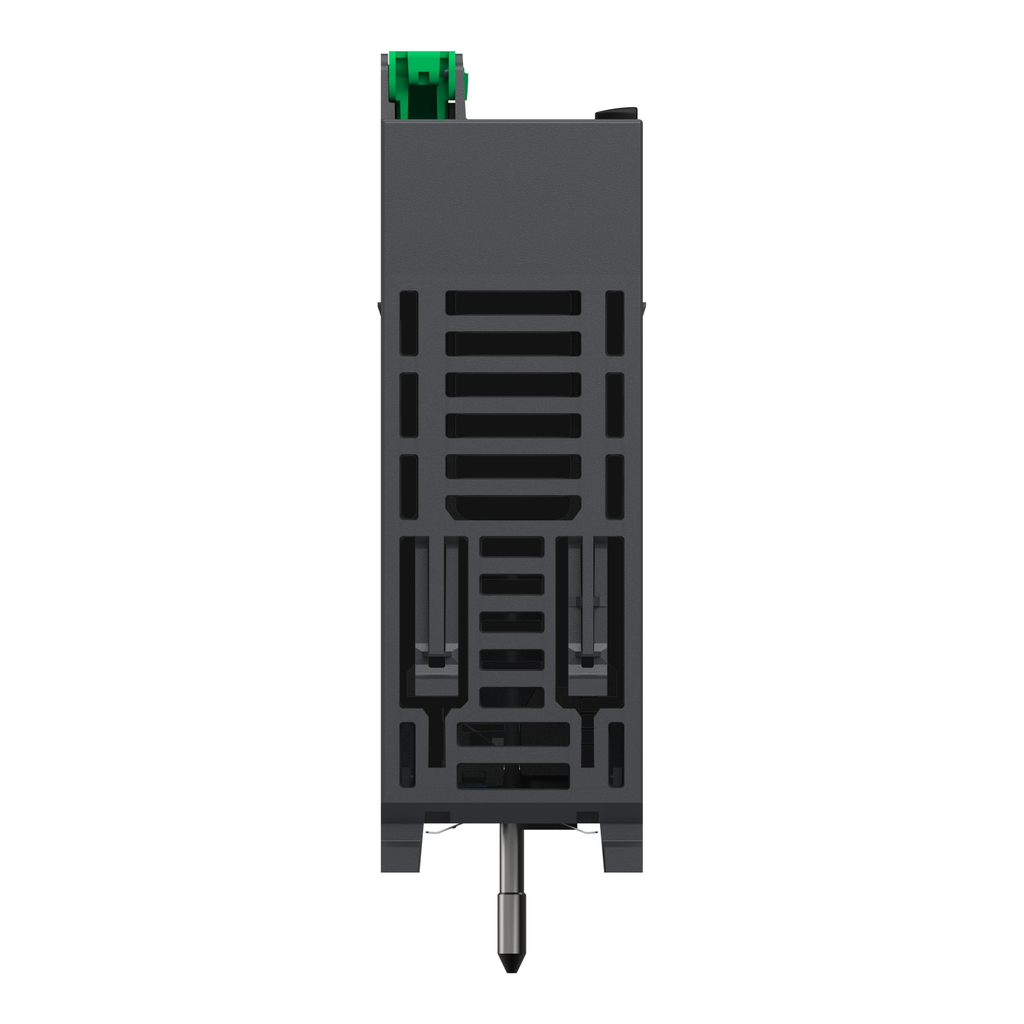

Mayer-DDS-processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet-1
  • Warranty Length: 18 mth
The M340 processor module has a maximum of 1024 discrete and 256 analog I/O (Modbus or Ethernet). 36 application specific channels, product or component type. The processor module can do monitoring, diagnostic counters Modbus, event counters Modbus, is transparent ready, has 4 CANopen racks and 11 slots. It also has 1024 I/O multirack configuration, 704 I/O single rack configuration, analog I/O processor capacity, 256 I/O multirack configuration and 66 I/O single rack configuration. The Modicon M340 offers in a small form factor flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Modicon M340 Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production. M340 PACs have an all in one CPU. It operates at 7 Kinst/ms. By using a multitasking system, it has reflex time. This PAC is programmed with Unity™ Pro software. The M340 has a USB port for programming and HMI. Two additional Ethernet, CANopen® or Modbus™ ports are available as required. The memory can process programming code up to 70 Kinst. Application back up is in a supplied memory card. Additional file storage is available up to 128 MB with FTP access. Additional file storage is available up to 128 MB with FTP access. The M340 range doesn’t require a battery. It has extended temperature (-25°C +70°C) and conformal coating for operation in harsh environments. Protection for SI and OEM know how by using a SD card technology. Replace or hot swap I/O modules without stopping process. Configuration change on the fly (CCOTF) is used. No need to stop the process to expand system. FTD/DTM configuration tools for plug and play device integration. This simplifies configuration, commissioning, and maintenance. The M340 range is used in process industries, renewable energy applications (Solar, Wind power, etc.), water and cement applications, in manufacturing, in infrastructures and on machines.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Module Processor Capacity : 2 Ethernet communication module, 4 AS-Interface module
    • Communication Service : bandwidth management, Ethernet TCP/IP, Data Editor, Ethernet TCP/IP, Modbus TCP messaging, Ethernet TCP/IP, Rack Viewer, Ethernet TCP/IP, SNMP network administrator, Ethernet TCP/IP
  • Physical Attributes
    • Bus Length : 0-1000 m serial link isolated Modbus segment, 0-15 m Modbus point-to-point0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-15 m character mode point-to-point
    • Default Size Of Object Areas : 1024 %MWi internal words located internal data, 256 %KWi constant words located internal data, 512 %Mi located internal bits
  • Complementary Attributes
    • Integrated Connection Type : non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplexnon isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, USB port 12 Mbit/s, Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
    • Maximum Size Of Object Areas : 32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words
    • Maximum Tap Links Length : <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Application Structure : 1 cyclic/periodic master task, 1 periodic fast task, no auxiliary task, 64 event tasks
    • Concept : Transparent Ready, Modbus
    • Control Parameter : one LRC on each frame (ASCII) Modbusone CRC on each frame (RTU) Modbus, one LRC on each frame (ASCII) character mode
    • Execution Time Per Instruction : 0.12 µs Boolean, 0.17 µs double-length words, 0.25 µs single-length words, 1.16 µs floating points
    • Marking : CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC
    • Memory Description : supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096 kB, internal RAM 256 kB data, internal RAM 3584 kB program constants and symbols, supplied memory card (BMXRMS008MP) activation of standard web server, class B10
    • Monitoring : diagnostic counters Modbus, event counters Modbus
    • Number Of Addresses : 0-248 character mode, 0-248 Modbus
    • Number Of Devices : 2 point-to-point character mode, 2 point-to-point Modbus
    • Number Of Devices Per Segment : 0-32 character mode), 0-32 Modbus)
    • Number Of Instructions Per Ms : 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 8.1 Kinst/ms 100 % Boolean
    • Requests : 1 K data bytes per request character mode, 252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus
    • Status Led : 1 LED (Green) activity on Ethernet network (ETH ACT), 1 LED (Green) processor running (RUN), 1 LED (Green) status of Ethernet network (ETH STS), 1 LED (Green) data rate (ETH 100), 1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR), 1 LED (Yellow) activity on Modbus (SER COM)
    • System Overhead : 0.13 ms fast task, 0.7 ms master task
    • Carbon Footprint Of The Distribution Phase A4 : 0.0321683438, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.39590625, 0.4 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.1 kg CO2 eq., 0.0979291406
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 16.75490625
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 102 kg CO2 eq., 101.6741818182
    • Certificate Agency : CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2438
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Control Channels : programmable loops
    • Current Consumption : 95 mA 24 V DC
    • Discrete I O Processor Capacity : 1024 I/O
    • Number Of Application Specific Channel : 36
    • Number Of Racks : 4
    • Port Ethernet : 10BASE-T/100BASE-TX
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : processor module
    • Protective Treatment : TC
    • Range Of Product : Modicon M340 automation platform
    • Returnability : Yes
    • Software Version : v5.9.4
    • Supply : internal power supply via rack
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 119 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2402021EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional-unit Quantity : 1
    • Functional-unit Unit : Unit
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 179.7552
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Recyclability Potential, In % : 32
    • Offer Owner Code : 190786
    • Pn : 1
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] : 10193.625
    • Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 2376.672
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 10193.625
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 118.9550918026
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : processor module
    • Range Of Product : Modicon M340 automation platform
  • ETIM
    • ETIM 8 : EC000236
    • ETIM 9 : EC000236
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, Canada, Costa Rica, France, United States
