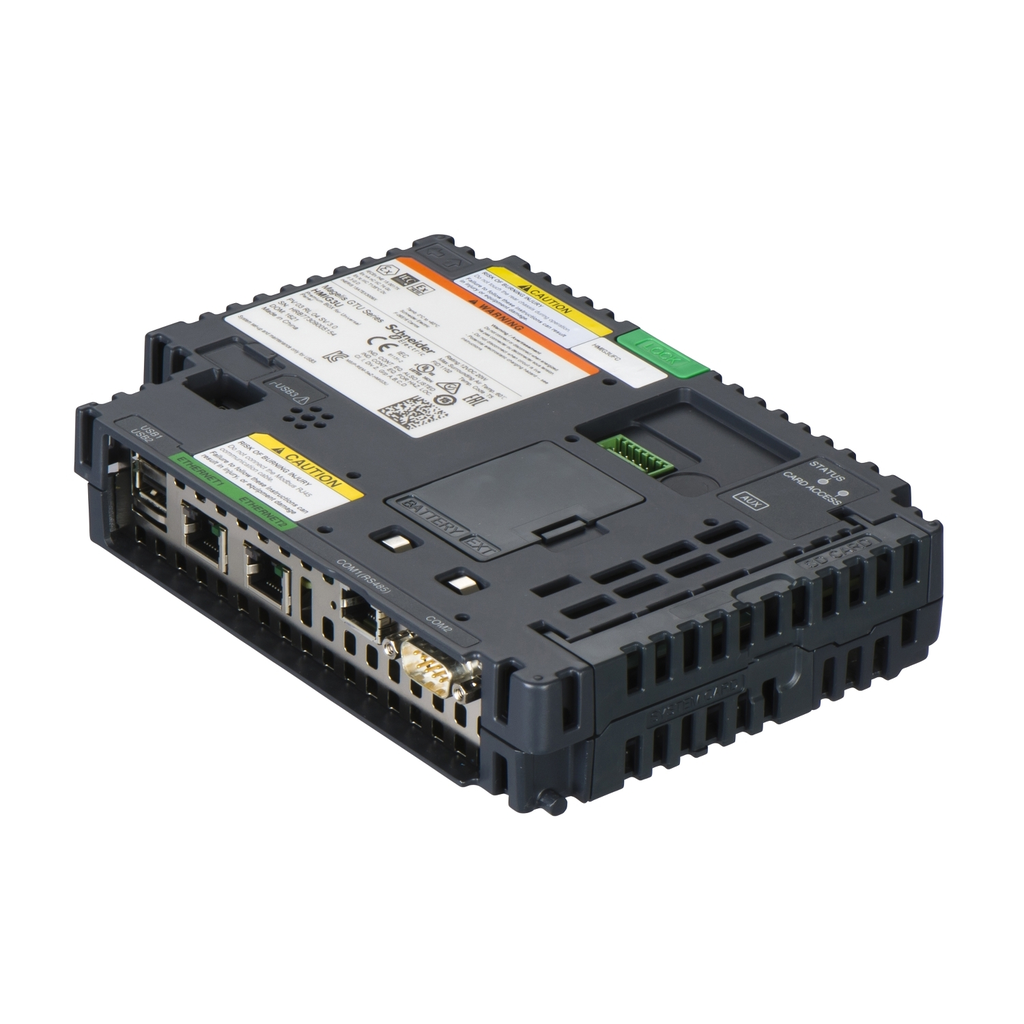

Base unit, Harmony GTU, Premium BOX for Universal Panel

Name: Base unit, Harmony GTU, Premium BOX for Universal Panel
Brand: Mayer Electric Supply
SKU: SQDHMIG3UFC
Price: 1985.63 USD
Availability: OutOfStock

HMIG3U Conformal Coated

SQDHMIG3UFC HMIG3UFC 3606480841620

1985.63 / EA

http://schema.org/OutOfStock

Mayer-DDS-Base unit, Harmony GTU, Premium BOX for Universal Panel-1

Country of Origin: China
Depth: 45 mm
Operating System: Harmony

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Communications & Management Attributes

Communication Port Protocol : Modbus, Uni-Telway, Modbus TCP/IP

Complementary Attributes

Integrated Connection Type : COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/sEthernet TCP/IP 2 RJ45, COM1 serial link RJ45 RS485 110...115200 bit/s, COM1 serial link RJ45 RS485 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s, auxiliary port terminal block, expansion unit fieldbus card, USB 2.0 port 2 USB type A, USB 2.0 port mini B USB
Us Rated Supply Voltage : 12...24 V DC power supply

Important Information Attributes

Persona Type Ids : EU, OM, OM8, PB, SC, SI
Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation Id : COMMERCIAL, INDUSTRIAL
Market Segmentation : Commercial, Industrial
Memory Description : 256 MB RAM internal, 512 KB NVRAM backup memory
Vibration Resistance : 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2, 9.8 m/s² 9-150 Hz) IEC 61131-2
Carbon Footprint Of The Distribution Phase A4 : 0.31709, 0.3 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.68851
Carbon Footprint Of The Installation Phase A5 : 0.31815, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 281 kg CO2 eq., 281
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 010 kg CO2 eq., 1010.4285714285712
Certificate Agency : CE, cULus, ATEX, IEC-Ex, RCM, GL, KC, cUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Return Indicator : N
Stocking Flag : Y
Stock Policy : 2
Device Type : HMI - Graphical display unit
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 7 year(s)
Manufacturing Carbon Footprint : 281
Weee Applicability : Finished product
Weee Scope : In
Weee Product Category : 5
Scope Perimeter : At least in Europe
Eoli Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1403023EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant By Exemption
Rohs Eur Conformity Date : 2514
Rohs Eur Full Compliance Status : Compliant By Exemption
China Rohs In Scope : Yes
China Rohs Label : 4
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Tier Id : 1
Tier : 1
Function Option Id : STANDARD
Function Option : Standard
Product Kit Identifier : N
Data Storage Equipment : 1 GB SD card
Device Short Name : Premium Box
Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen Free Status : Product contains halogen above thresholds
Operating System : Harmony
Port Ethernet : 10BASE-T/100BASE-TX/1000BASE-T
Processor Name : CPU RISC 600 MHz
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : base unit
Range Of Product : Harmony GTU
Returnability : No
Software Package : Vijeo Designer run time
Software Version : v5.9.4
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 1 293 kg CO2 eq.
Type Of Cooling : natural convection
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Silicone Free : No
Warranty In Months : 18
Pep Code : ENVPEP1403023EN
Database Version : 2022-01
Pep Verification Date : 2024-02-02
Pcr Version : PEP-PCR-ed4-2021 09 06
Psr Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review
Data Source : extrapolated product
Functional-unit Description : Harmony GTU base unit during 10 years and maximum use rate at 35W, based on below function:& 10 - Ethernet& 10 - COM port: RS232C/RS422/RS485& 10 - Auxiliary port& 10 - Expansion unit fieldbus card& 10 - USB 2.0 port 3 USB type A & 10 - USB 2.0 port mini B USB& 10 - DVI-D video port DVI-D& 10 - Microphone mini-jack& 10,in accordance with the relevant standards:& 10 - CSA C22.2 No 142& 10 - ANSI/ISA 12-12-01& 10 - UL 508& 10 - Class I division 2 CSA C22.2 No 213& 10 - IEC 61132-2
Functional-unit Quantity : 1
Functional-unit Unit : Unit
Reference Lifetime, In Y : 10
Energy Consumption On Product Lifetime, In Kwh : 2190
Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; ID
Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In % : 57
Offer Owner Code : 190786
Pn : 1
Height Nominal : 131 mm
Width Nominal : 188 mm
Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3] : 1.6987
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 280.67
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -6.6199
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 281
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -6.8154
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 3228.3
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 3.8502
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] : 3.3007
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 21.95
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] : -91.368
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 3678.2
Ecotoxicity (Fresh Water) (Ctue) Distribution [A4] : 1.3004
Ecotoxicity (Fresh Water) (Ctue) Installation [A5] : 2.3383
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 22.323
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] : -455.41
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 866.23
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -11.837
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 75.222
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] : -10.549
Materials For Recycling (Kg) Installation [A5] : 0.18
Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 1.4317
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 66.84
Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 1.0313
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -14.794
Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3] : 2.3827
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 6.7216
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 6.7216
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] : -0.282
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 3336.5
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 3.8503
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 3.5442
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 22.087
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -96.565
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 108.26
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] : -5.1978
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 6.7216
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 6.7216
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -0.282
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 3221.5
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 3.8502
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 3.3007
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 21.95
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -91.086
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 3.3709
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 3.3709
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -3.132
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 104.89
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -2.0658
Water Use (M3 Eq) Manufacturing [A1-a3] : 61.49
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D] : -1.7162

Environment Attributes Main

Take Back : No
Halogene Performance : Product contains halogen above thresholds
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Mercury Free : Yes
Silicon Free : No
Carbon Footprint : 1292.7523214285711
Ambient Air Temperature For Operation : 0-60 °C
Ambient Air Temperature For Storage : -20-60 °C-20-60 °C
Circularity Profile : ENVEOLI1403023EN
Environmental Disclosure : ENVPEP1403023EN
Eu Rohs Directive : Compliant By Exemption
F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen Content Performance : Product contains halogen above thresholds
Operating Altitude : 6561.68 ft (2000 m)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Relative Humidity : 10-90 % non-condensing
Pep Code : ENVPEP1403023EN
Pep Verification Date : 2024-02-02
Pcr Version : PEP-PCR-ed4-2021 09 06
Psr Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review

General Attributes

Product Or Component Type : base unit
Range Of Product : Harmony GTU

ETIM

ETIM 8 : EC001412
ETIM 9 : EC001412

Specifications

Country of Origin : China
Depth : 45 mm

Base unit, Harmony GTU, Premium BOX for Universal Panel

HMIG3U Conformal Coated
