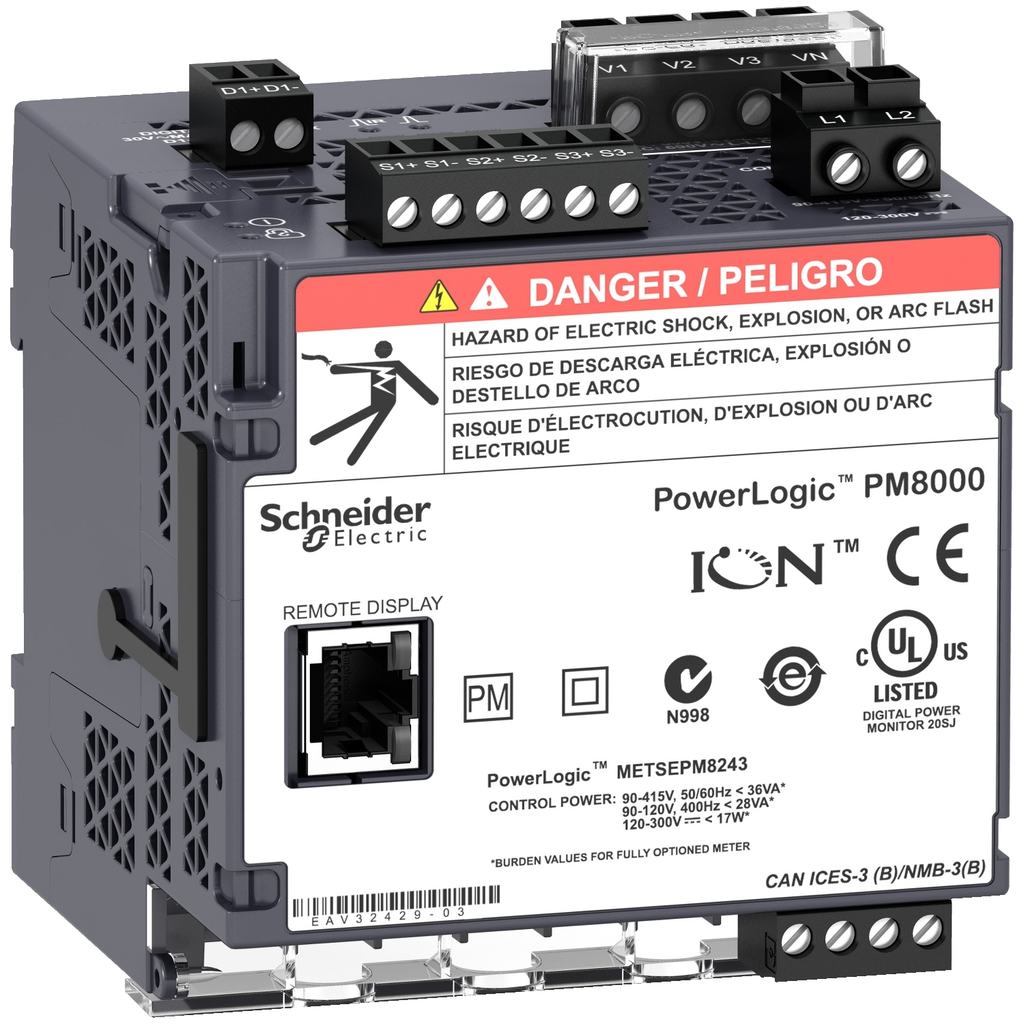

PowerLogic PM8000 - PM8244 DIN rail mount meter + Remote display - int. metering

PowerLogic PM8000 - PM8244 DIN rail mount meter + Remote display - int. metering

SQDMETSEPM8244 METSEPM8244 785901526148
6304.00 / EA
  • Amperage: 10 A
  • Certifications: CE, China RoHS, CULus, N998
  • Depth: 3.57 in, 90.8 mm
  • Height: 3.56 in, 90.5 mm
  • Number of Outputs: 1
  • Standard: IEC 61326-1, IEC 61557-12, IEC 62052-11, IEC 62053-22, IEC 62053-24, IEC 62586-2, IEEE 1588
  • Weight: 18.62 oz, 528 g
  • Width: 3.56 in, 90.5 mm
The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. DIN rail mounting with remote display.
  • Product Description
  • Additional Information
The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. DIN rail mounting with remote display.
  • Specifications
    • Main
      • Range : PowerLogic
      • Product Name : PowerLogic PM8000
      • Device Short Name : PM8244
      • Product Or Component Type : Power meter
    • Complementary
      • Power Quality Analysis : EN 50160 2010 compliance report || IEEE 519 2014 compliance report || IEC 61000-4-30 class S power quality measurement || up to the 63rd harmonic || harmonic distortion || waveform capture || voltage sag and swell detection || programmablity (logic and math functions) || IEC 62586 power quality monitoring
      • Device Application : WAGES metering || Power monitoring
      • Type Of Measurement : Current || Voltage || Frequency || Active and reactive power total || Apparent power total || Power factor total || Active and reactive power per phase, rms || Apparent power per phase, rms || Power factor per phase, rms
      • Supply Voltage : 90...415 V AC 45...65 Hz +/- 10 % || 110...415 V DC +/- 10 %
      • Network Frequency : 50 Hz || 60 Hz
      • In Rated Current : 10 A || 5 A || 1 A
      • Poles Description : 3P || 1P + N || 3P + N
      • Power Consumption In Va : 18 VA 415 V AC
      • Display Type : Remote LCD display
      • Display Resolution : 320 x 240 pixels QVGA
      • Sampling Rate : 256 samples/cycle
      • Measurement Current : 50…10000 mA
      • Analogue Input Type : voltage 5 MOhm) || current 0.3 MOhm)
      • Measurement Voltage : 57…400 V AC 42...69 Hz between phase and neutral || 100…690 V AC 42...69 Hz between phases
      • Frequency Measurement Range : 42…69 Hz
      • Number Of Inputs : 3 digital 30 V AC || 3 digital 60 V DC
      • Measurement Accuracy : Current +/- 0.1 % || Voltage +/- 0.1 % || Active energy +/- 0.2 %
      • Accuracy Class : Class 0.2S active energy IEC 62053-22 || Class 0.2 active energy ANSI C12.20 || Class 0.2 active power IEC 61557-12 || Class 0.5S reactive energy IEC 62053-24 || Class 0.5 power factor IEC 61557-12 || Class 0.2 voltage IEC 61557-12 || Class 0.2 current IEC 61557-12
      • Number Of Outputs : 1 pulse
      • Information Displayed : Voltage || Current || Frequency || Power || Energy consumption || Harmonic distortion
      • Communication Port Protocol : Modbus RTU 115 kbauds - 2-wire || ION 115 kbauds - 2-wire || DNP3 || IEC 61850 || Modbus TCP/IP || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || RSTP 801.1d 2004
      • Communication Port Support : Ethernet || Screw terminal block RS485
      • Communication Network Type : IPv6 (internet protocol)
      • Data Recording : Sequence of event recording || Event logs || Min/max of instantaneous values || Harmonics logs || Alarm logs || GPS synchronisation || Waveform logs || Data logs || Time stamping || Trending/forecasting || Sag and swell logs
      • Memory Capacity : 512 MB
      • Web Services : Customizable home page || File upload/download via FTP || File upload/download via SFTP || Web server || Alarm notification by e-mail || Viewing of captured waveform (FTP) || Viewing of captured waveform (web) || HTTPS server
      • Communication Service : SMTP e-mail notification || RSTP support || NTP time synchronization || DHCP || PTP time synchronization
      • Cybersecurity : Password protection || Syslog protocol support || Port hardening || Robust security logs || Enable/disable communication ports
      • Mounting Mode : Flush-mounted || Clip-on
      • Mounting Support : DIN rail meter device || Framework remote display
      • Provided Equipment : Remote display
      • Installation Category : III
      • Safety Construction : III, 400…690 V IEC 61010-1:ed. 3 || III, 400…690 V EN 61010-1:ed. 3 || III, 347…600 V UL 61010-1:ed. 3 || III, 347…600 V CSA C22.2 No 61010-1:ed. 3
      • Standards : IEC 62053-22 || IEC 62053-24 || IEC 62052-11 || IEC 61557-12 || IEEE 1588 || IEC 62586-2 || IEC 61326-1
      • Product Certifications : CE || CULus || N998 || China RoHS
      • Width : 3.56 in (90.5 mm)
      • Depth : 3.57 in (90.8 mm)
      • Height : 3.56 in (90.5 mm)
      • Product Weight : 18.62 oz (528 g)
    • Environment
      • Electromagnetic Compatibility : Electrostatic discharge IEC 61000-4-2 || Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3 || Electrical fast transient/burst immunity test IEC 61000-4-4 || Surge immunity test IEC 61000-4-5 || Conducted RF disturbances IEC 61000-4-6 || Magnetic field at power frequency IEC 61000-4-8 || Voltage dips and interruptions immunity test IEC 61000-4-11 || Immunity to impulse waves IEC 61000-4-12 || Conducted and radiated emissions EN 55022 || Conducted and radiated emissions EN 55011 || Conducted and radiated emissions FCC part 15 || Conducted and radiated emissions ICES-003 || Conducted RF disturbances 2...150 Hz) CLC/TR 50579 || Surge withstand IEEE C37.90.1
      • IP Degree Of Protection : IP30 IEC 60529
      • Relative Humidity : 5…95 %
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
      • Operating Altitude : 9842.52 ft (3000 m)
    • Ordering And Shipping Details
      • Category : 09797 - POWERLOGIC PM8000 HARDWARE
      • Discount Schedule : PL1
      • GTIN : 00785901526148
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : CA
    • Offer Sustainability
      • EU RoHs Directive : Compliant
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
