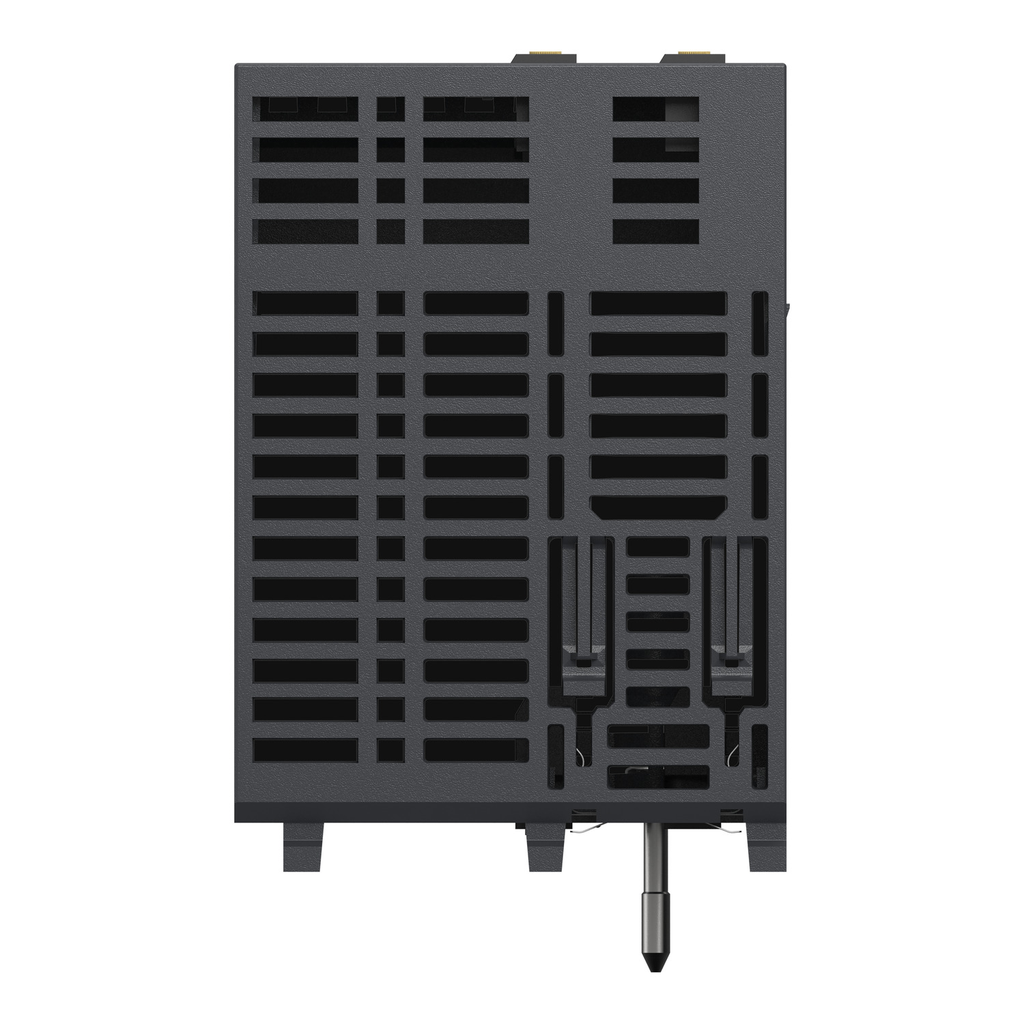

Power supply module X80 - 24..48 V isolated DC - for severe environments

Power supply module X80 - 24..48 V isolated DC - for severe environments

SQDBMXCPS3020H BMXCPS3020H 785901687283
981.00 / EACH
  • Certifications: ATEX, CE, CSA, EAC, IEC-Ex, Merchant Navy, RCM, UL
  • Standard: EN 61000-6-2, EN 61000-6-4, EN 61010-2-201, EN 61131-2
  • Voltage: 24-48 V
  • Weight: 0.34 kg, 0.75 lbs
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.34kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Additional Information
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.34kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Specifications
    • Main
      • Range Of Product : Modicon X80
      • Product Or Component Type : Power supply module
      • Backplane Compatibility : Not compatible with BMEXBP..02
      • Product Specific Application : For severe environments
      • Primary Voltage : 24...48 V isolated
      • Supply Circuit Type : DC
      • Secondary Power : 15 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply || 31.2 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor || 11.3 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply || 23.4 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor
    • Complementary
      • Primary Voltage Limit : 18...62.4 V
      • Input Current : 0.83 A 48 V || 1.65 A 24 V
      • Inrush Current : 30 A 24 V || 60 A 48 V
      • I┬▓T On Activation : 1 A².s 24 V || 3 A².s 48 V
      • It On Activation : 0.2 A.s 24 V || 0.3 A.s 48 V
      • Protection Type : Internal fuse not accessible primary circuit || Overload protection secondary circuit, 24 V sensor power supply || Overvoltage protection secondary circuit, 24 V sensor power supply || Short-circuit protection secondary circuit, 24 V sensor power supply
      • Current At Secondary Voltage : 1.3 A 24 V DC I/O module power supply and processor || 4.5 A 3.3 V DC I/O module logic power supply
      • Power Dissipation In W : 8.5 W
      • Status Led : Rack voltage OK 1 LED Green)
      • Control Type : RESET push-button cold restart
      • Electrical Connection : 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth
      • Cable Distance Between Devices : 32.81 ft (10 m) power supply cable copper 0.00 in² (1.5 mm²) || 49.21 ft (15 m) power supply cable copper 0.00 in² (2.5 mm²)
      • Insulation Resistance : >= 10 MOhm primary/ground || >= 10 MOhm primary/secondary
      • Product Weight : 0.75 lb(US) (0.34 kg)
    • Environment
      • Immunity To Microbreaks : 1 ms
      • Dielectric Strength : 1500 V primary/ground || 1500 V primary/secondary
      • Vibration Resistance : 3 gn
      • Shock Resistance : 30 gn
      • IP Degree Of Protection : IP20
      • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2012/19/EU - WEEE directive
      • Product Certifications : UL || IEC-Ex || CSA || RCM || CE || Merchant Navy || EAC || ATEX
      • Standards : EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201
      • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Relative Humidity : 5…95 % 131 °F (55 °C) without condensation
      • Protective Treatment : Conformal coating
      • Environmental Characteristic : Gas resistant class Gx || Gas resistant class 3C4 || Dust resistant class 3S4 || Sand resistant class 3S4 || Salt resistant level 2 || Mold growth resistant class 3B2 || Fungal spore resistant class 3B2
      • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Ordering And Shipping Details
      • Category : 18160 - MODICON M340
      • Discount Schedule : PC34
      • GTIN : 00785901687283
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : ID
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
