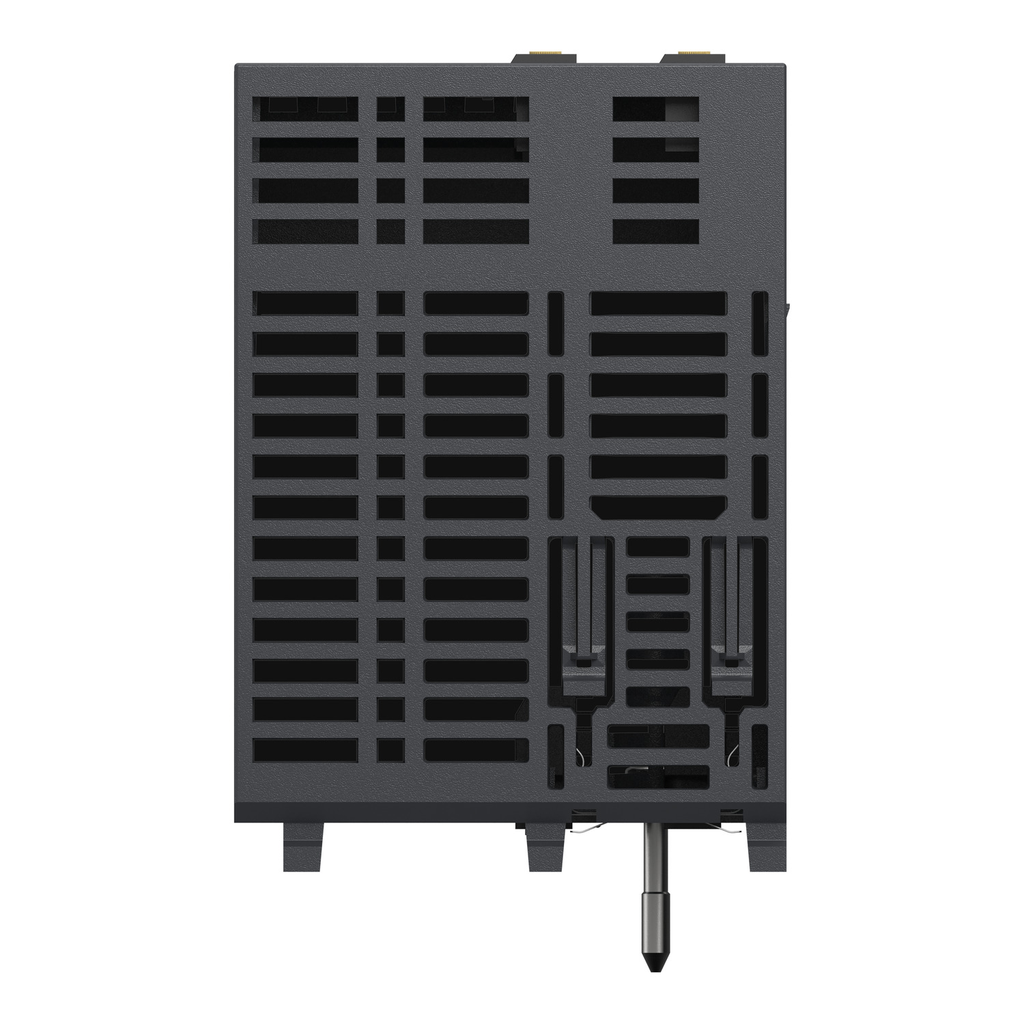

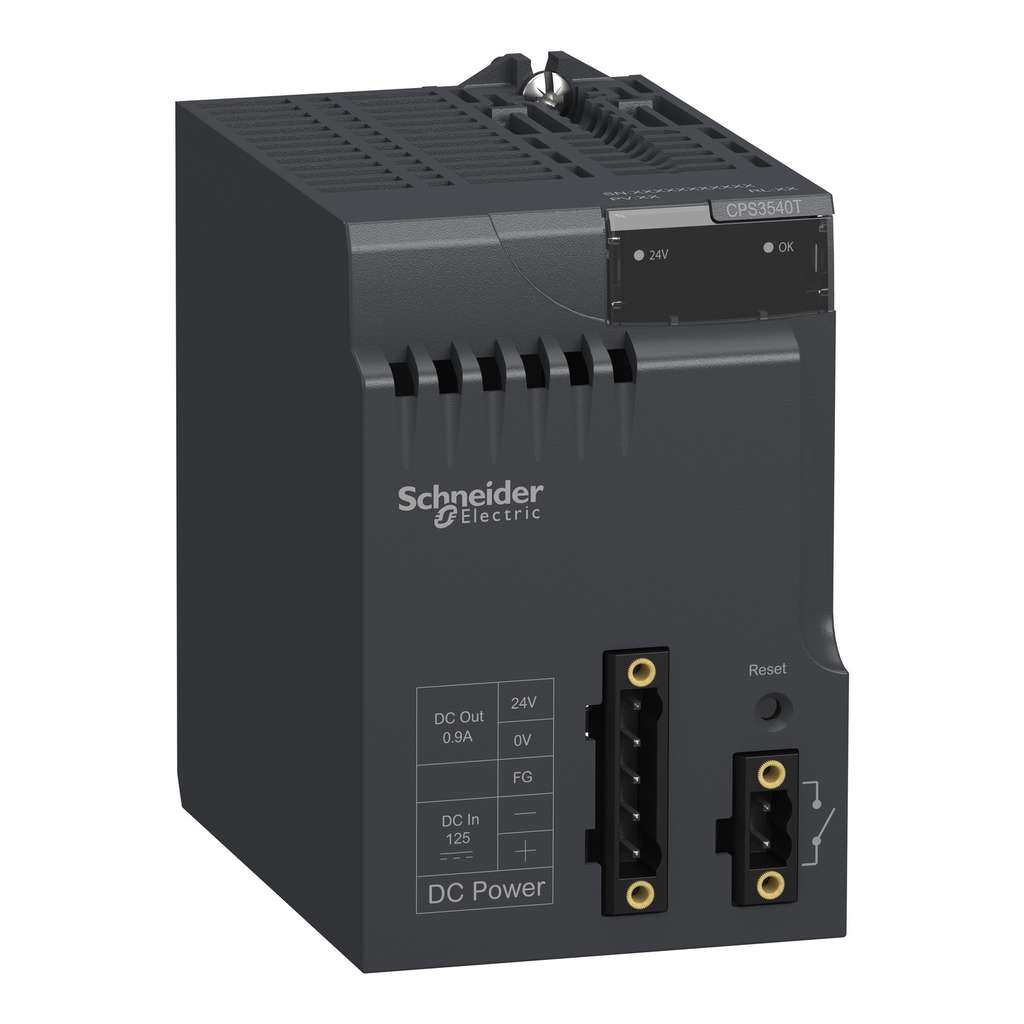

Power supply module X80 - 125 V DC - for extended temperature

Power supply module X80 - 125 V DC - for extended temperature

SQDBMXCPS3540T BMXCPS3540T 785901675853
873.00 / EACH
  • Certifications: ATEX, CE, CSA, EAC, IEC-Ex, Merchant Navy, RCM, UL
  • Standard: EN 61000-6-2, EN 61000-6-4, EN 61010-2-201, EN 61131-2
  • Voltage: 125 V
  • Weight: 0.36 kg, 0.79 lbs
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Additional Information
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Specifications
    • Main
      • Range Of Product : Modicon X80
      • Product Or Component Type : Power supply module
      • Backplane Compatibility : Not compatible with BMEXBP..02
      • Product Specific Application : Extended temperature
      • Primary Voltage : 125 V
      • Supply Circuit Type : DC
      • Secondary Power : 15 W 3.3 V DC I/O module logic power supply || 31.2 W 24 V DC I/O module power supply and processor
    • Complementary
      • Primary Voltage Limit : 100...150 V
      • Input Current : 350 mA 125 V
      • Inrush Current : 30 A 125 V
      • I┬▓T On Activation : 2 A².s 125 V
      • It On Activation : 0.05 A.s 125 V
      • Protection Type : Internal fuse not accessible primary circuit || Overload protection secondary circuit, 24 V sensor power supply || Overvoltage protection secondary circuit, 24 V sensor power supply || Short-circuit protection secondary circuit, 24 V sensor power supply
      • Current At Secondary Voltage : 1.3 A 24 V DC I/O module power supply and processor || 4.5 A 3.3 V DC I/O module logic power supply
      • Power Dissipation In W : 8.5 W
      • Status Led : Rack voltage OK 1 LED Green) || Sensor voltage 1 LED Green)
      • Control Type : RESET push-button cold restart
      • Electrical Connection : 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth, 24 V DC input sensor
      • Insulation Resistance : >= 100 MOhm primary/ground || >= 100 MOhm primary/secondary
      • Product Weight : 0.79 lb(US) (0.36 kg)
    • Environment
      • Immunity To Microbreaks : 1 ms
      • Dielectric Strength : 2000 V primary/secondary I/O module logic power supply || 500 V 24 V sensor output/ground
      • Vibration Resistance : 3 gn
      • Shock Resistance : 30 gn
      • IP Degree Of Protection : IP20
      • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2012/19/EU - WEEE directive
      • Product Certifications : CE || CSA || RCM || Merchant Navy || EAC || UL || IEC-Ex || ATEX
      • Standards : EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201
      • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Relative Humidity : 5…95 % 131 °F (55 °C) without condensation
      • Protective Treatment : Conformal coating
      • Environmental Characteristic : Gas resistant class Gx || Gas resistant class 3C4 || Dust resistant class 3S4 || Sand resistant class 3S4 || Salt resistant level 2 || Mold growth resistant class 3B2 || Fungal spore resistant class 3B2
      • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Ordering And Shipping Details
      • Category : 18160 - MODICON M340
      • Discount Schedule : PC34
      • GTIN : 00785901675853
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : ID
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
