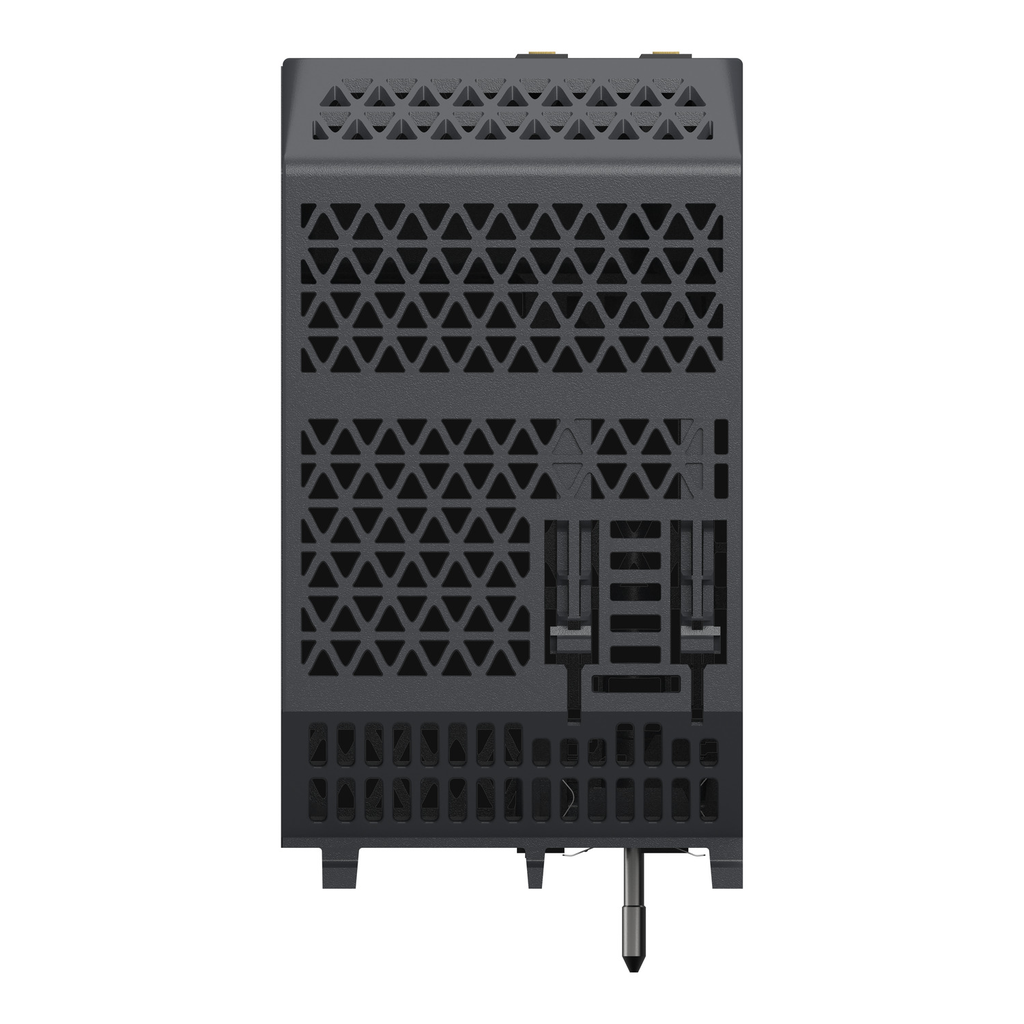

Power supply module X80 - 100..240 V AC

Power supply module X80 - 100..240 V AC

SQDBMXCPS4002 BMXCPS4002 785901004967
0.00 / EA
  • Certifications: CE, CSA, EAC, Merchant Navy, RCM, UL
  • Standard: EN 61000-6-2, EN 61000-6-4, EN 61010-2-201, EN 61131-2
  • Voltage: 100-240 V
  • Weight: 0.51 kg, 1.12 lbs
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Additional Information
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Specifications
    • Main
      • Range Of Product : Modicon X80
      • Product Or Component Type : Power supply module
      • Backplane Compatibility : All backplane
      • Advanced Diagnostics Available Via Network : Temperature sensing || Redundancy test || Uptime duration || Redundancy information || Remaining lifetime
      • Primary Voltage : 100...240 V
      • Supply Circuit Type : AC
      • Secondary Power : 18 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply || 40 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor if 3.3 V not loaded
    • Complementary
      • Primary Voltage Limit : 85...264 V
      • Network Frequency : 50/60 Hz
      • Network Frequency Limits : 47…63 Hz
      • Apparent Power : 0.07 kVA
      • Input Current : 0.52 A 240 V || 1.04 A 115 V
      • Inrush Current : 30 A 120 V || 60 A 240 V
      • I┬▓T On Activation : 1 A².s 120 V || 3 A².s 240 V
      • It On Activation : 0.05 A.s 120 V || 0.07 A.s 240 V
      • Protection Type : Internal fuse not accessible primary circuit || Overload protection secondary circuit || Overvoltage protection secondary circuit || Short-circuit protection secondary circuit
      • Current At Secondary Voltage : 5.5 A 3.3 V DC I/O module logic power supply || 1.67 A 24 V DC I/O module power supply and processor
      • Power Dissipation In W : 8.5 W
      • Status Led : Presence of voltages (OK) 1 LED Green) || Redundancy OK 1 LED Green) || Power supply status 1 LED Green)
      • Control Type : RESET push-button cold restart
      • Electrical Connection : 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth
      • Insulation Resistance : >= 100 MOhm primary/ground || >= 100 MOhm primary/secondary
      • Product Weight : 1.12 lb(US) (0.51 kg)
    • Environment
      • Immunity To Microbreaks : 1 ms
      • Dielectric Strength : 1500 V primary/secondary I/O module logic power supply || 1500 V primary/secondary I/O module power supply and processor || 2300 V primary/secondary sensor power supply || 1500 V primary/ground || 500 V 24 V sensor output/ground
      • Vibration Resistance : 3 gn
      • Shock Resistance : 30 gn
      • IP Degree Of Protection : IP20
      • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2012/19/EU - WEEE directive
      • Product Certifications : CE || RCM || UL || Merchant Navy || CSA || EAC
      • Standards : EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201
      • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
      • Ambient Air Temp For Op : 32…140 °F (0…60 °C)
      • Relative Humidity : 5…95 % 131 °F (55 °C) without condensation
      • Protective Treatment : TC || Conformal coating Humiseal 1A33
      • Environmental Characteristic : 3C3 EN/IEC 60721-3-3 || 3C4 EN/IEC 60721-3-3
      • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Ordering And Shipping Details
      • Category : 18160 - MODICON M340
      • Discount Schedule : PC34
      • GTIN : 00785901004967
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : ID
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
