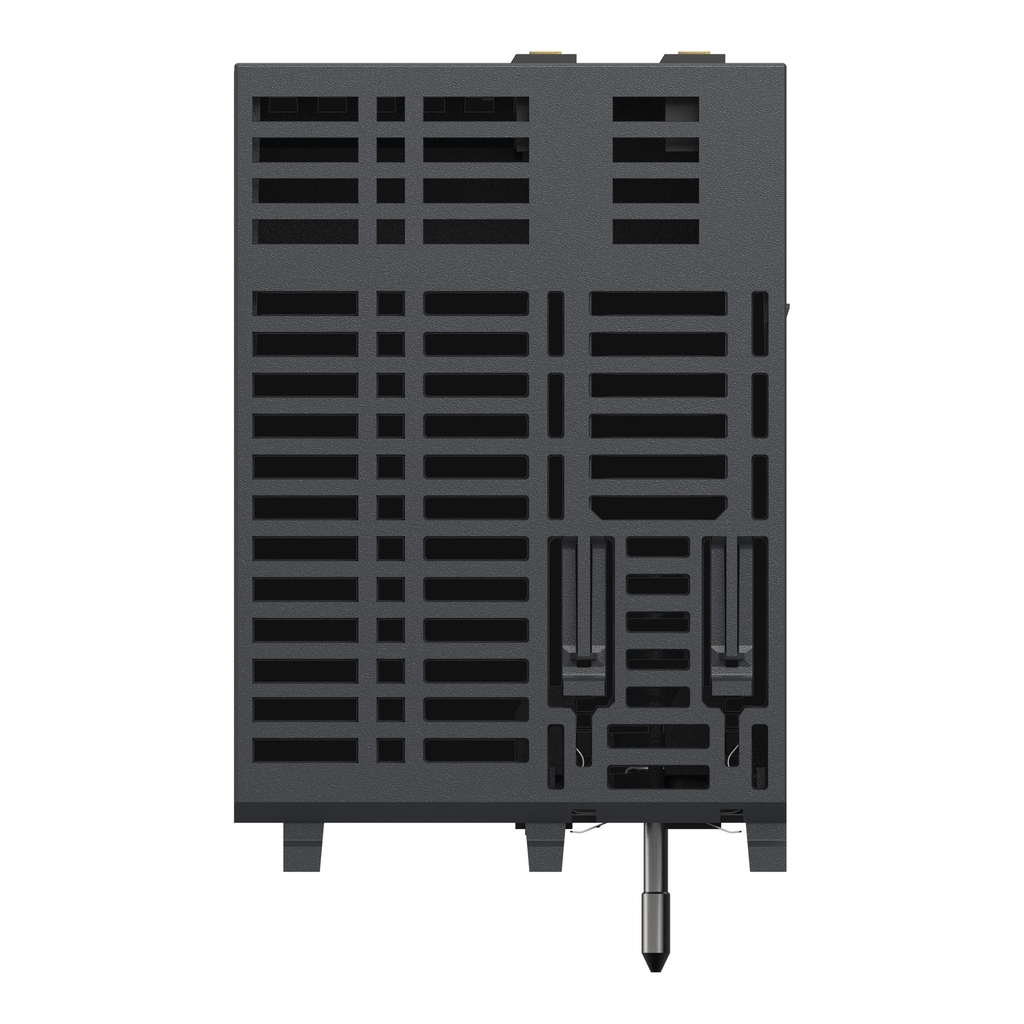

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Environment
• Ambient Air Temperature For Operation : 0-60 °C
• Immunity To Microbreaks : 1 ms
• Shock Resistance : 30 gn
• Vibration Resistance : 3 gn
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Protective Treatment : TC
• Ip Degree Of Protection : IP20
• Dielectric Strength : 1500 V primary/secondary I/O module logic power supply || 1500 V primary/secondary I/O module power supply and processor || 2300 V primary/secondary sensor power supply || 1500 V primary/ground || 500 V 24 V sensor output/ground
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Mtbf Reliability : 4300000 H
• Network Frequency : 50/60 Hz
• Primary Voltage Limit : 85...264 V
• It On Activation : 0.05 A.s 120 V || 0.07 A.s 240 V
• Status Led : 1 LED (Green) rack voltage OK || 1 LED (Green) sensor voltage
• I²T On Activation : 1 A².s 120 V || 3 A².s 240 V
• Input Current : 0.52 A 240 V || 1.04 A 115 V
• Current At Secondary Voltage : 0.9 A 24 V DC sensor power supply || 1.3 A 24 V DC I/O module power supply and processor || 4.5 A 3.3 V DC I/O module logic power supply
• Insulation Resistance : >= 100 MOhm primary/ground || >= 100 MOhm primary/secondary
• Network Frequency Limits : 47-63 Hz
• Net Weight : 0.36 kg
• Control Type : RESET push-button cold restart
• Maximum Power Dissipation In W : 8.5 W
• Apparent Power : 0.12 kVA
• Electrical Connection : 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth, 24 V DC input sensor
• Inrush Current : 30 A 120 V || 60 A 240 V
• Protection Type : internal fuse not accessible primary circuit || overload protection secondary circuit || overvoltage protection secondary circuit || short-circuit protection secondary circuit
• Specifications
• Primary Voltage : 100...240 V
• Range Of Product : Modicon X80
• Product Or Component Type : power supply module
• Secondary Power : 15 W 3.3 V DC I/O module logic power supply || 31.2 W 24 V DC I/O module power supply and processor || 21.6 W 24 V DC sensor power supply
• Supply Circuit Type : AC
• Product Compatibility : not compatible with BMEXBP..02
