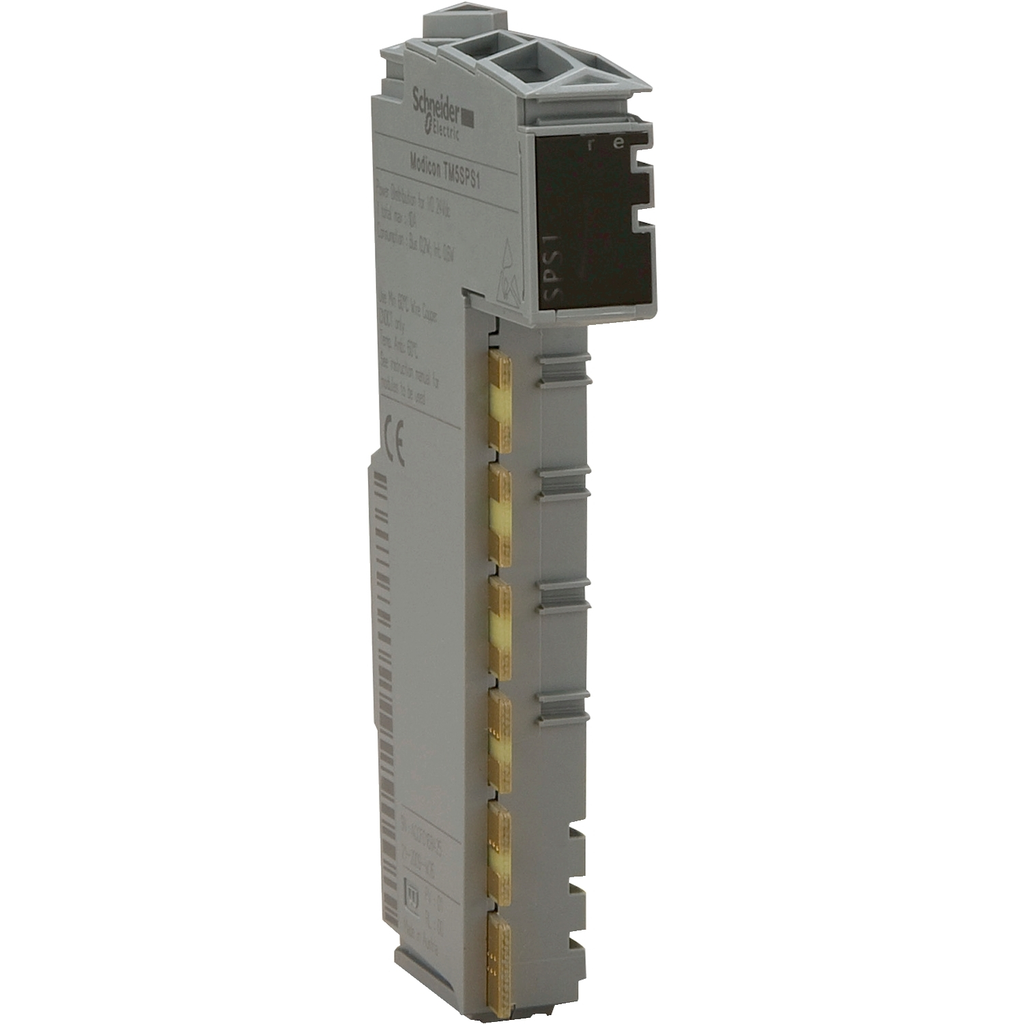

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 0.8W and supplies a 10A current for I/O power segment. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

• Features
• Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
• Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
• Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
• Modicon TM5 is characterized by easy cabling and maintenance
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Housing Color : grey
• Conformance Attributes
• Product Certifications : GOST-R, C-tick, cULus, CSA
• Standards : CSA C22.2 No 142, CSA C22.2 No 213, UL 508, IEC 61131-2
• Complementary Attributes
• Maximum Power Dissipation In W : 0.8 W
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Vibration Resistance : 1 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on DIN rail
• Carbon Footprint Of The Distribution Phase A4 : 0.012254833812909132, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.05583125620426437
• Carbon Footprint Of The Installation Phase A5 : 0.02417209120250885, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.178162357067301
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 32 kg CO2 eq., 32.27070371590814
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511026EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Bearing Track Assembly Possible : true
• Electrical Connection : screw/spring terminal block
• Front Installation Possible : false
• Housing Color : grey
• Marking : CE
• Network Type : DC
• Optical Interface Present : false
• Package Weight Lbs : 35.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : power distribution module
• Rack Assembly Possible : false
• Radio Standard Bluetooth : false
• Radio Standard GPRS : false
• Radio Standard GSM : false
• Radio Standard UMTS : false
• Range Of Product : Modicon TM5
• Returnability : Yes
• Shock Resistance : 15 gn 11 ms
• Short Circuit Protection : 10 A external fuse
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Ethernet Ip : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For TCP IP : false
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 34 kg CO2 eq.
• Typical Current Consumption : 25 mA 24 V DC
• Wall Mounting Direct Mounting Possible : false
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Us Rated Supply Voltage2 : 24 V DC
• Appendant Operation Agent Ex Ia2 : false
• Appendant Operation Agent Ex Ib2 : false
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Certified For Ul Hazardous Location Group A Acetylene2 : false
• Certified For Ul Hazardous Location Group B Hydrogen2 : false
• Certified For Ul Hazardous Location Group C Ethylene2 : false
• Certified For Ul Hazardous Location Group D Propane2 : false
• Certified For Ul Hazardous Location Group E Metal Dusts2 : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust2 : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust2 : false
• DC Supply Voltage : 24-24 V
• Radio Standard Wi Fi 802 11 : false
• Supporting Protocol For Interbus Safety : false
• Medium Desc : Power distribution module, Modicon TM5, for I/O 24 V DC
• Stocking Flag : N
• Product Kit Identifier : N
• Bus Diagnosis Possible : false
• Performance Level According To En Iso 13849 1 : none
• Potential Separation Present : false
• System Accessory : false
• Appendant Operation Agent Ex Ia3 : false
• Appendant Operation Agent Ex Ib3 : false
• Certified For Ul Hazardous Location Group A Acetylene3 : false
• Certified For Ul Hazardous Location Group B Hydrogen3 : false
• Certified For Ul Hazardous Location Group E Metal Dusts3 : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust3 : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust3 : false
• Pep Code : ENVPEP1511026EN
• Database Version : 2024-01
• Pep Verification Date : 2025-12-25
• Pcr Version : PCR-4-ed4-FR-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Austria, AT
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Turkey, TR
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• With Power Supply Module : false
• Us Rated Supply Voltage5 : 24 V DC
• Certified For Ul Hazardous Location Group C Ethylene 4 : false
• Certified For Ul Hazardous Location Group D Propane 4 : false
• Environment Attributes Main
• Take Back : No, Nej
• Ambient Air Temperature For Operation : -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), 55-60 °C with derating factor horizontal installation), -10-50 °C vertical installation)
• Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : logic controller, motion controller
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 33.541124254195125
• Circularity Profile : ENVEOLI1511026EN
• Environmental Disclosure : ENVPEP1511026EN
• IP Degree Of Protection : IP20
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % without condensation
• Pep Code : ENVPEP1511026EN
• Pep Verification Date : 2025-12-25
• Pcr Version : PCR-4-ed4-FR-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : power distribution module
• Range Of Product : Modicon TM5
• Output Attributes
• Power Supply Output Current : 10-10 A I/O power segment
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Current : 10000 mA I/O power segment
• Specifications
• Country of Origin : Italy
• Depth : 75 mm
