Power distribution block, Linergy, enclosed, 335A CU, 270A AL, 600V, 2 line side lug, 8 load side lug, AL lug, rail

POWER DISTR. BLOCK 335A 600V

SQDNSYEBAD13618 NSYEBAD13618 785901630364
136.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-Power distribution block, Linergy, enclosed, 335A CU, 270A AL, 600V, 2 line side lug, 8 load side lug, AL lug, rail-1
  • Depth: 3.14 in
  • Dielectric Strength: 1000 V, 185 mm

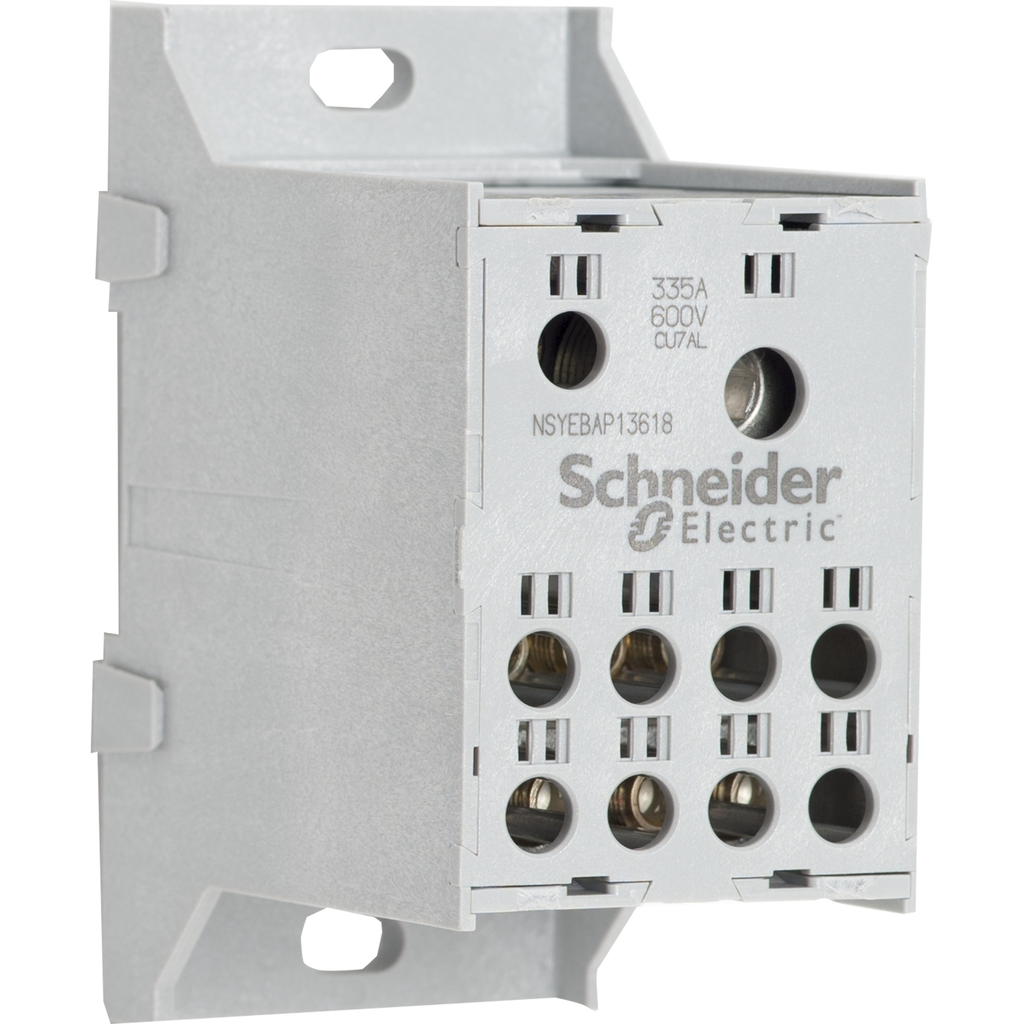

NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 10 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 335A at 600 V when copper wire is used and 270A at 600 V when aluminum wire is used. One of the line side terminals will accept 14 AWG to 3/0 AWG copper wires or 6 AWG to 3/0 AWG aluminium wires. The other line side terminal will accept 6 AWG to 400 kcmil copper wires or 6 AWG to 400 kcmil aluminium wires. The eight load side terminals will accept 14 AWG to 2 AWG copper wires or 6 AWG to 2 AWG aluminium wires. This block can be mounted on 35 mm DIN rail. This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
QTY
  • Features
  • Specifications
  • Features
    • Ideal for distributing power to multiple loads
    • Their versatility and easy wiring makes them ideal terminal block
    • Meets a wide variety of application requirements
    • Offers labor savings with easy wiring requiring a standard screwdriver
    • All blocks are UL component recognized and CSA approved
  • Physical Attributes
    • Wire Stripping Length : line: 1 in, line: 1.44 in, load: 0.63 in for top connection, load: 0.63 in for bottom connection
    • Color Of Enclosure : grey
  • Conformance Attributes
    • Product Certifications : UL recognized E60616 CCN XCFR2, CE, CSA file 70361 class 6228 01
  • Complementary Attributes
    • Line Rated Current : 335-335 A copper, 270-270 A aluminium
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Number Of Cables : line 1 , AWG 6...400 kcmil, aluminium, line 1 , AWG 14...AWG 3/0, copper, line 1 , AWG 6...AWG 3/0, aluminium, line 1 , AWG 6...400 kcmil, copper, load 8 , AWG 14...AWG 2, copper, load 8 , AWG 6...AWG 2, aluminium
    • Number Of Terminals : 1 line, 8 load
    • Tightening Torque : line 375 lb.in, AWG 2/0...400 kcmil, aluminium, line 275 lb.in, AWG 6...AWG 1/0, aluminium, line 80 lb.in, AWG 6...AWG 2, copper, line 40 lb.in, AWG 14...AWG 8, copper, line 120 lb.in, AWG 1...AWG 3/0, aluminium, line 80 lb.in, AWG 6...AWG 2, aluminium, line 375 lb.in, AWG 2/0...400 kcmil, copper, load 80 lb.in, AWG 6...AWG 2, copper, load 40 lb.in, AWG 14...AWG 8, copper, load 80 lb.in, AWG 6...AWG 2, aluminium, line 275 lb.in, AWG 6...AWG 1/0, copper, line 120 lb.in, AWG 1...AWG 3/0, copper
    • Connections Terminals : line lug 375 lbf.in AWG 2/0...400 kcmil copper, load lug 80 lbf.in AWG 6...AWG 2 copper, load lug 40 lbf.in AWG 14...AWG 8 copper, load lug 80 lbf.in AWG 6...AWG 2 aluminium, line lug 275 lbf.in AWG 6...AWG 1/0 copper, line lug 120 lbf.in AWG 1...AWG 3/0 copper
    • Connections Terminals3 : line lug 375 lbf.in AWG 2/0...400 kcmil copper, load lug 80 lbf.in AWG 6...AWG 2 copper, load lug 40 lbf.in AWG 14...AWG 8 copper, load lug 80 lbf.in AWG 6...AWG 2 aluminium, line lug 275 lbf.in AWG 6...AWG 1/0 copper, line lug 375 lbf.in AWG 2/0...400 kcmil aluminium, line lug 275 lbf.in AWG 6...AWG 1/0 aluminium, line lug 120 lbf.in AWG 1...AWG 3/0 copper, line lug 80 lbf.in AWG 6...AWG 2 copper, line lug 40 lbf.in AWG 14...AWG 8 copper, line lug 120 lbf.in AWG 1...AWG 3/0 aluminium, line lug 80 lbf.in AWG 6...AWG 2 aluminium
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Manufacturer : Square D
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Color Of Enclosure : grey
    • Dielectric Strength : 1000 V 185 mm² IEC 60947-7-1
    • Electrical Connection : tin plated aluminium lugs
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free product
    • Material : thermoplastic: block
    • Mounting Support : 35 mm DIN rail
    • Package Weight Lbs : 0.36 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : NSYEB
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ue Rated Operational Voltage2 : 600 V AC/DC
    • Medium Desc : Power distribution block, Linergy, enclosed, 335A CU, 270A AL, 600V, 2 line side lug, 8 load side lug, AL lug, rail
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
    • Ue Rated Operational Voltage5 : 600 V AC/DC
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • Product Compatibility : NSYEBP2 AWG 2), NSYEBP20 AWG 2/0), NSYEBP400 400 kcmil)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-257 °F
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : NSYEB
  • Specifications
    • Depth : 3.14 in
