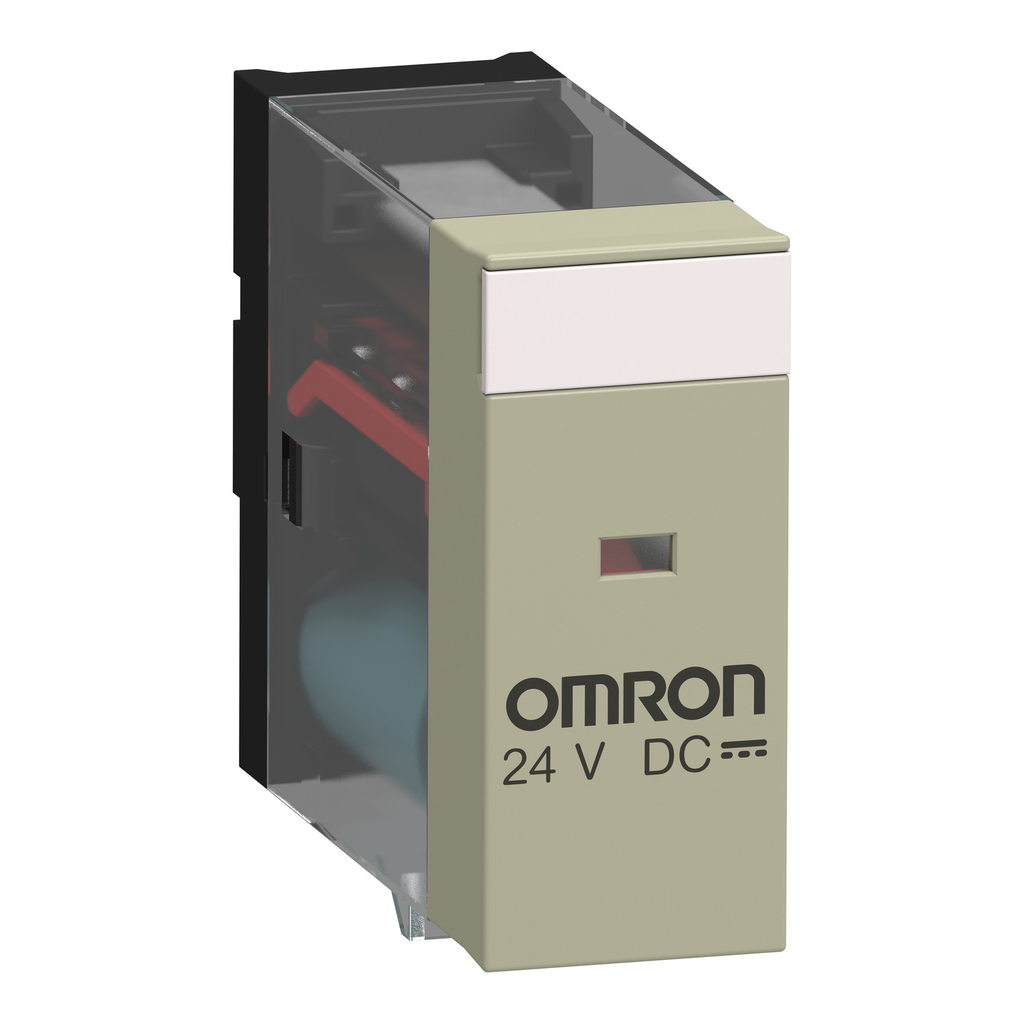

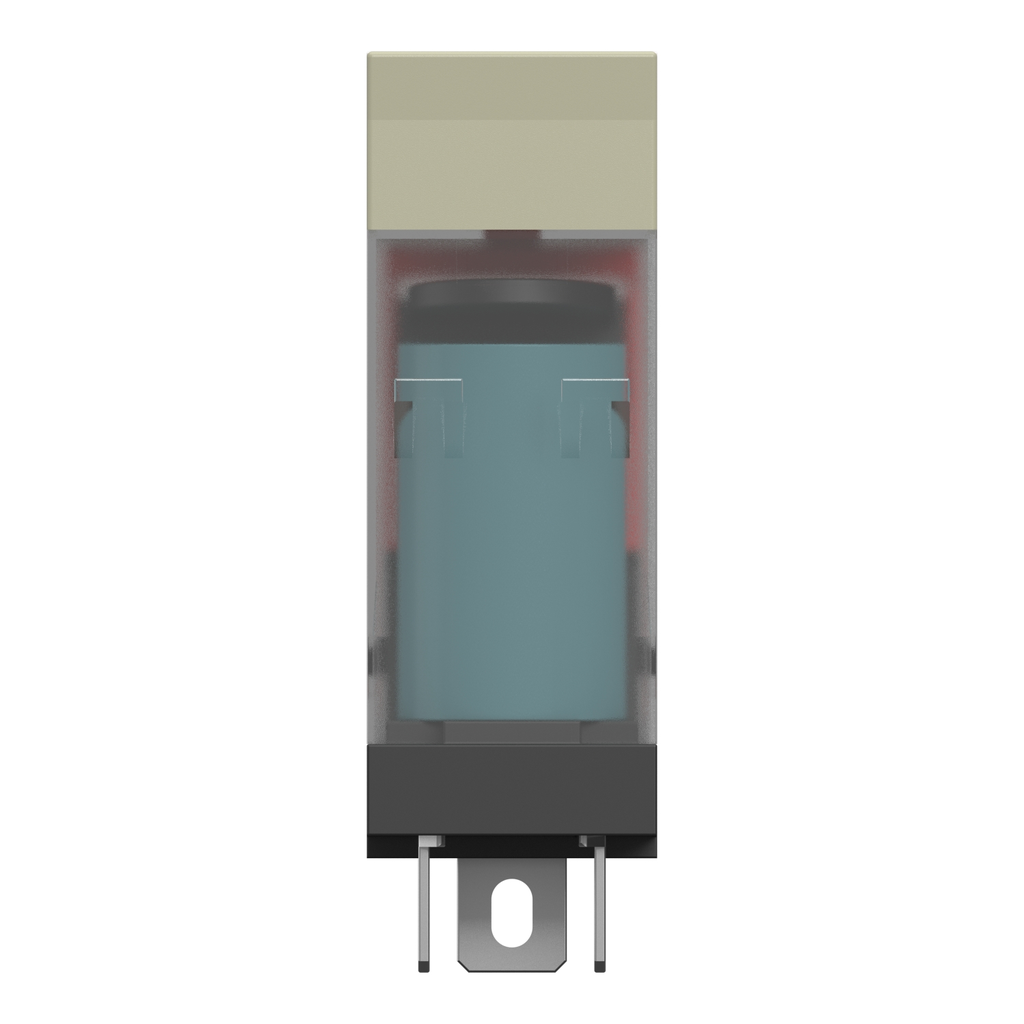

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in electromechanical relay is compatible with Modicon ABE7 connection sub-bases. It has 1 change over contact. It is a solid state relay with a control circuit voltage of 24V DC, a conventional free air thermal current of 10A and a maximum power dissipation per pole is 0.6W. It offers electrical durability of 500000 cycles and mechanical durability of 20 million cycles. The width pitch is 12mm. It weighs 0.017kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P08T330E, ABE7R16T332, ABE7P16T334, ABE7P16T318E, ABE7P16T318, ABE7P16T332, ABE7P16T330, ABE7R16T330, ABE7P16T330E and ABE7P08T330 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Switching Voltage : 130 V DC IEC 60947-5-1, 130 V DC IEC 60947-5-1, 130 V DC IEC 60947-5-1, 264 V AC 50/60 Hz IEC 60947-5-1, 264 V AC 50/60 Hz IEC 60947-5-1, 264 V AC 50/60 Hz IEC 60947-5-1, 264 V AC 50/60 Hz IEC 60947-5-1
• Minimum Switching Current : 100 mA >= 5 V, 100 mA >= 5 V
• UIMP Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1, 2.5 kV IEC 60947-1
• Maximum Power Dissipation Per Pole : 0.6 W
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Associated Fuse Rating : 1 A, fast blow, 1 A, fast blow
• Dielectric Strength : 2000 V IEC 60947-1, 2000 V IEC 60947-1
• Drop Out Current : 3.5 mA 20 °C, 3.5 mA 20 °C
• Drop Out Voltage : 3.6 V 20 °C, 3.6 V 20 °C
• Electrical Durability : 500000 cycles 1400 mA 24 V DC-13 10 ms, 500000 cycles 1400 mA 24 V DC-13 10 ms, 500000 cycles 1400 mA 24 V DC-13 10 ms, 500000 cycles 1400 mA 24 V DC-13 10 ms, 500000 cycles 1400 mA 24 V DC-13 10 ms, 500000 cycles 1700 mA 230 V AC-15, 500000 cycles 1700 mA 230 V AC-15, 500000 cycles 1700 mA 230 V AC-15, 500000 cycles 1700 mA 230 V AC-15, 500000 cycles 3000 mA 230 V AC-12, 500000 cycles 3000 mA 230 V AC-12, 500000 cycles 3000 mA 230 V AC-12, 500000 cycles 3000 mA 230 V AC-12, 500000 cycles 3000 mA 24 V DC-12, 500000 cycles 3000 mA 24 V DC-12, 500000 cycles 3000 mA 24 V DC-12, 500000 cycles 3000 mA 24 V DC-12
• Operating Rate In HZ : 5 Hz no load, 5 Hz no load, 0.5 Hz at Ie, 0.5 Hz at Ie
• Threshold Tripping Voltage : 16.8 V 40 °C, 16.8 V 40 °C
• Bases : ABE7R16T230, ABE7P16T318, ABE7P16T330, ABE7P16T334, ABE7R16T330
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-15
• HTML Description : Advantys Telefast ABE7 Electromechanical RelayControl Circuit Voltage: 24VConventional Free Air Thermal Current: 10AContacts Type and Composition: 1 C/O
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Max Immunity To Microbreaks : 5 ms
• Package Weight Lbs : 20 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in electromechanical relay
• Range Of Product : Advantys Telefast ABE7
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Width Pitch Dimension : 12 mm
• Relationship Type : Compatible relationship
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : plug-in electromechanical relay
• Range Of Product : Advantys Telefast ABE7
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
