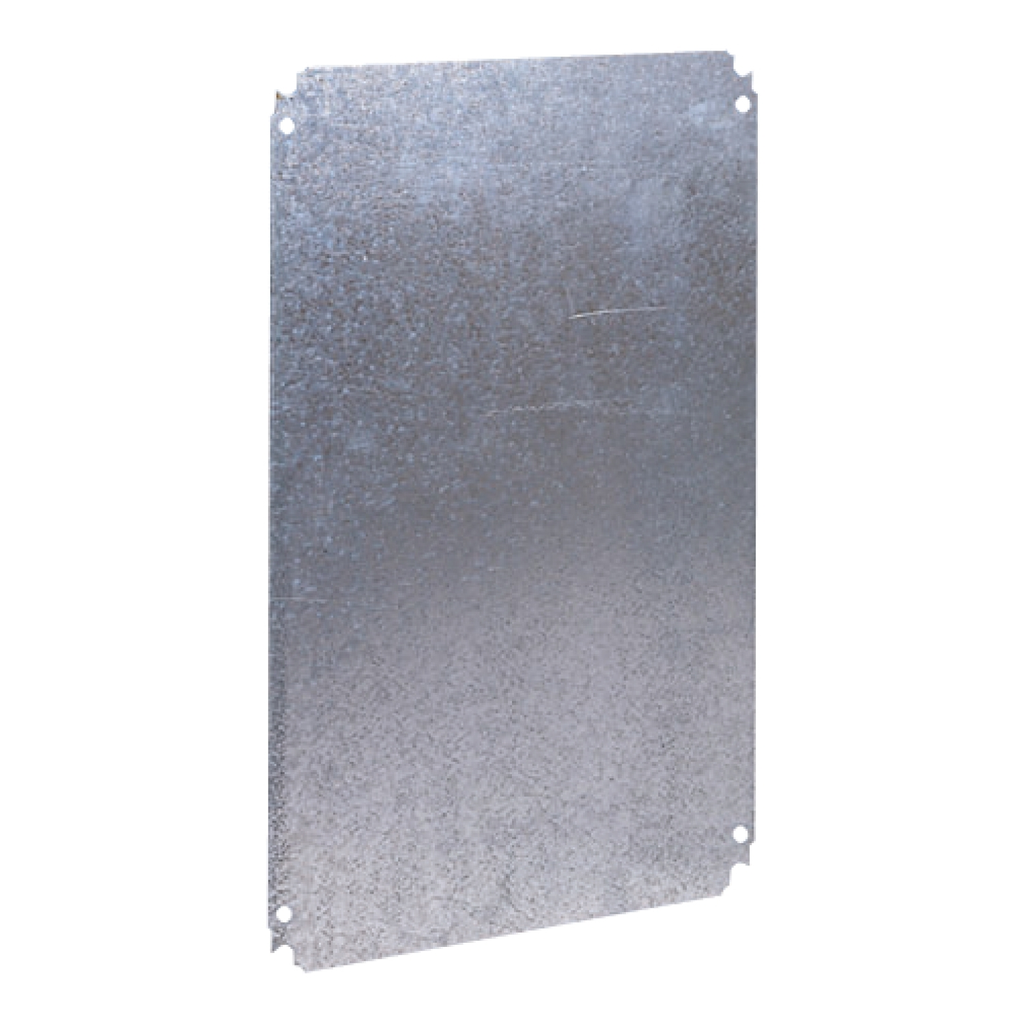

Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel. Set of 1.

• Range Compatibility
• PanelSeT S3D
• PanelSeT CRN
• PanelSeT PLM
• Carbon Footprint Of The Installation Phase A5
• 0.3607653479219122
• 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 32 kg CO2 eq.
• 31.5987990704704
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 60 kg CO2 eq.
• 59.62602824670788
• Fixing Mode
• screwed on backstuds M8
• by fixing element
• Mounting Location
• direct fixing on backstuds
• step slide
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 22.00928727053822
• 22 kg CO2 eq.
• Enclosure Nominal Dimensions
• - H: 800 mm W: 800 mm
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2024-02-10
• Etim 10 : EC000213
• Manufacturing Carbon Footprint : 59.6260282467079
• Distribution Carbon Footprint : 22.0092872705382
• Installation Carbon Footprint : 0.360765347921912
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 31.5987990704704
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : No
• China Rohs Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Material : galvanised steel
• Mounting Plate Description : plain
• Package Weight Lbs : 11.086 kg
• Permanent Permissible Load : 150 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mounting plate
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : Yes
• Sustainable Packaging : No
• Thickness : 2.5 mm
• Total Lifecycle Carbon Footprint : 114 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 113.5948799356384
• Accessory Separate Part Category : mounting accessory
• General Attributes
• Product Or Component Type : mounting plate
• ETIM
• ETIM 8 : EC000213
• ETIM 9 : EC000213
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 113.594879935638
• Environmental Disclosure : ENVPEP2202003EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
• Height : 29.53 in
• Width : 29.53 in
