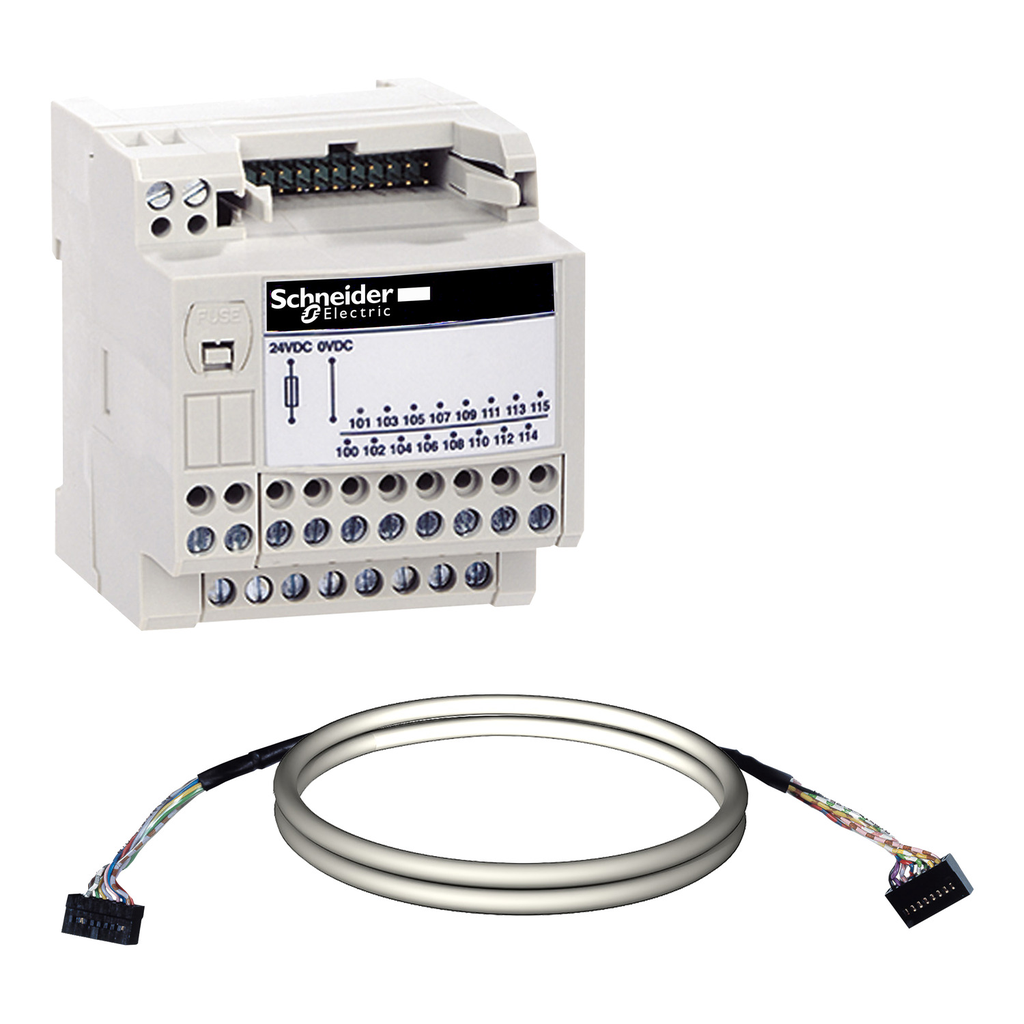

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

• Ambient Air Temperature For Storage
• -40-80 °C IEC 61131-2
• US Rated Supply Voltage
• 19...30 V IEC 61131-2
• Connections Terminals
• screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end
• screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid
• screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end
• screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end
• screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
• IP Degree Of Protection
• IP2X conforming to IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Resistance To Radiated Fields
• 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
• Installation Category
• II IEC 60664-1
• Status Led
• 1 LED (Green) power ON
• 1 LED (amber) APP1
• UI Rated Insulation Voltage
• 2000 V terminals/mounting rails
• Fixing Mode
• by clips (35 mm symmetrical DIN rail)
• by screws (solid plate with fixing kit)
• Vibration Resistance
• 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Resistance To Fast Transients
• 2 kV level 3 IEC 61000-4-4
• Persona Type Ids
• EU
• OM
• OM8
• Resistance To Electrostatic Discharge
• 4 kV contact) level 3 IEC 61000-4-2
• 8 kV air) level 3 IEC 61000-4-2
• Tightening Torque
• 0.6 N.m flat Ø 3.5 mm
• Short Circuit Protection
• 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
• Shock Resistance
• 15 gn 11 ms IEC 60068-2-27
• Resistance To Incandescent Wire
• 750 °C 30 s IEC 60695-2-11
• Ambient Air Temperature For Operation
• -5-60 °C IEC 61131-2

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• HTML Description : Advantys Telefast ABE7 Passive Connection Sub-baseNumber of Channels: 16Connections - Terminals: Screw Type TerminalsRated Insulation Voltage: 2000 V between terminals/mounting railsDegree of Protection: IP2x conforming to IEC 60529
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI121229EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1845
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Number Of Horizontal Rows : 2
• Number Of Terminal Per Channel : 1
• Package Weight Lbs : 317.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : passive discrete I/O sub-base
• Range Of Product : Modicon ABE7
• Returnability : No
• Sub Base Type : low cost sub-base
• Supply Circuit Type : DC
• Sustainable Packaging : No
• Voltage Drop On Power Supply Fuse : 0.3 V
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP121229EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Installation Material : ABE7TES160
