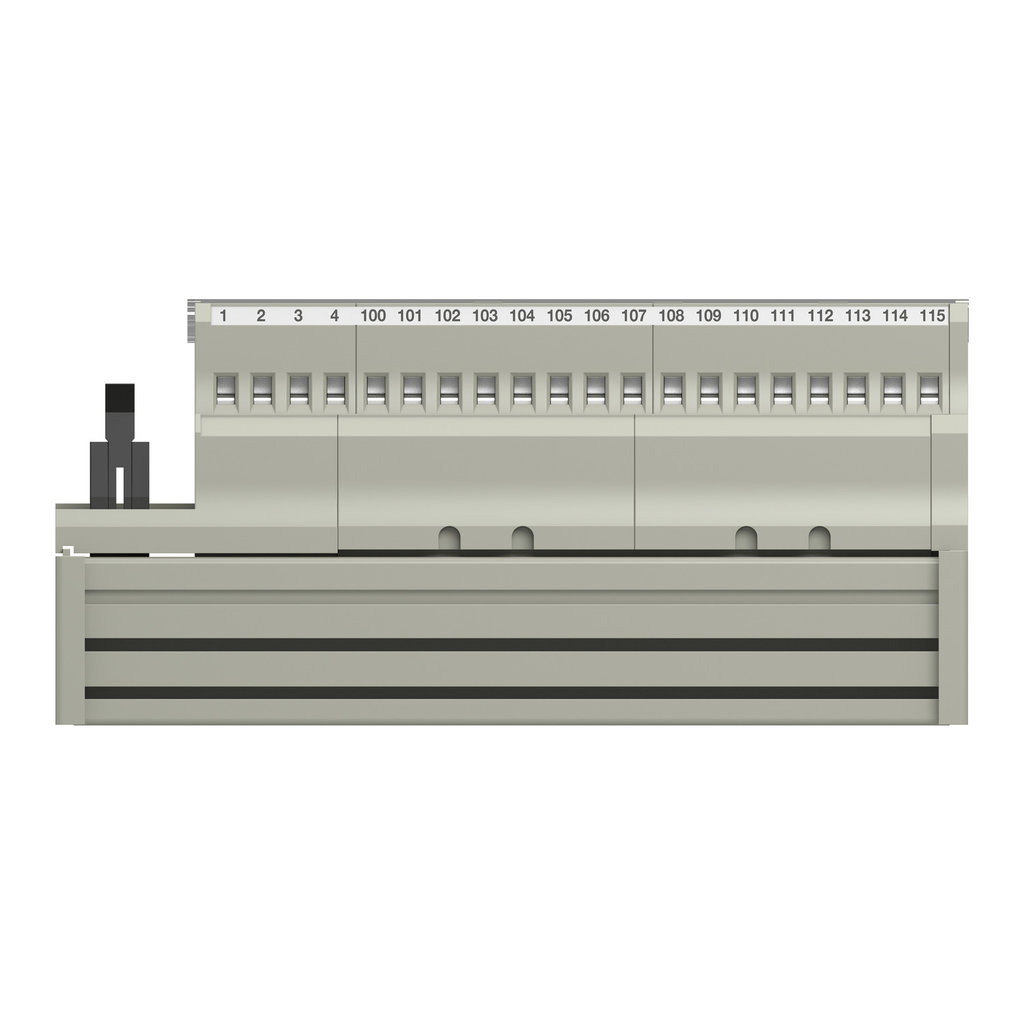

Passive connection sub-base ABE7 - 16 inputs or outputs - Led

Passive connection sub-base ABE7 - 16 inputs or outputs - Led

SQDABE7H16R11 ABE7H16R11 785901544944
185.00 / EACH
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL
  • Country of Origin: Latvia
  • Number of Channels: 16
  • Number of Pins: 20
  • Warranty Length: 18 mth
  • Weight: 0.274 kg, 0.60 lb
  • Width: 125 mm, 4.92 in
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.274kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
  • Product Description
  • Specifications
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.274kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
  • Ordering And Shipping Details
    • Country Of Origin : LV
    • Category : 22375 - INTERFACE MODULE(ABA,R,S)
    • Discount Schedule : CP2
    • GTIN : 00785901544944
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
  • Main
    • Range Of Product : Modicon ABE7
    • Product Or Component Type : Passive discrete I/O sub-base
    • Number Of Channels : 16
    • Sub-Base Type : I/O sub-base
    • Connections - Terminals : Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
    • Us Rated Supply Voltage : 19...30 V IEC 61131-2
    • Nb Of Terminal Per Channel : 1
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • REACh Free Of SVHC : Yes
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Width : 4.92 in (125 mm)
    • Supply Voltage Type : DC
    • Short-Circuit Protection : 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
    • Ui Rated Insulation Voltage : 2000 V
    • Connector Type : HE-10
    • Number Of Horizontal Rows : 1
    • Installation Category : II IEC 60664-1
    • Polarity Distribution : No
    • Tightening Torque : 5.31 lbf.in (0.6 N.m) flat Ø 3.5 mm
    • Vltg Drop On Pwr Supply Fuse : 0.3 V
    • Status Led : Channel status 1 LED per channel Green) || Power ON 1 LED Green)
    • Pin Number : 20 pins
    • Product Weight : 0.60 lb(US) (0.274 kg)
    • Supply Current : 1.8 A
    • Fixing Mode : By clips 35 mm symmetrical DIN rail) || By screws solid plate with fixing kit)
    • Current Per Output Common : 1.8 A
    • Current Per Channel : 0.5 A
  • Environment
    • Vibration Resistance : 2 gn 10…150 Hz)IEC 60068-2-6
    • Resistance To Fast Transients : 2 kV level 3 IEC 61000-4-4
    • Ambient Air Temp For Op : 23…140 °F (-5…60 °C) IEC 61131-2
    • IP Degree Of Protection : IP2x IEC 60529
    • Rtc To Incandescent Wire : 1382 °F (750 °C) IEC 60695-2-11
    • Product Certifications : DNV || BV || UL || GL || CSA || LROS (Lloyds register of shipping)
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Resistance To Radiated Fields : 9.14 V/m (10 V/m) 26000000…1000000000 Hz)IEC 61000-4-3 level 3
    • Resist Electrostatic Dischrg : 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C) IEC 61131-2
