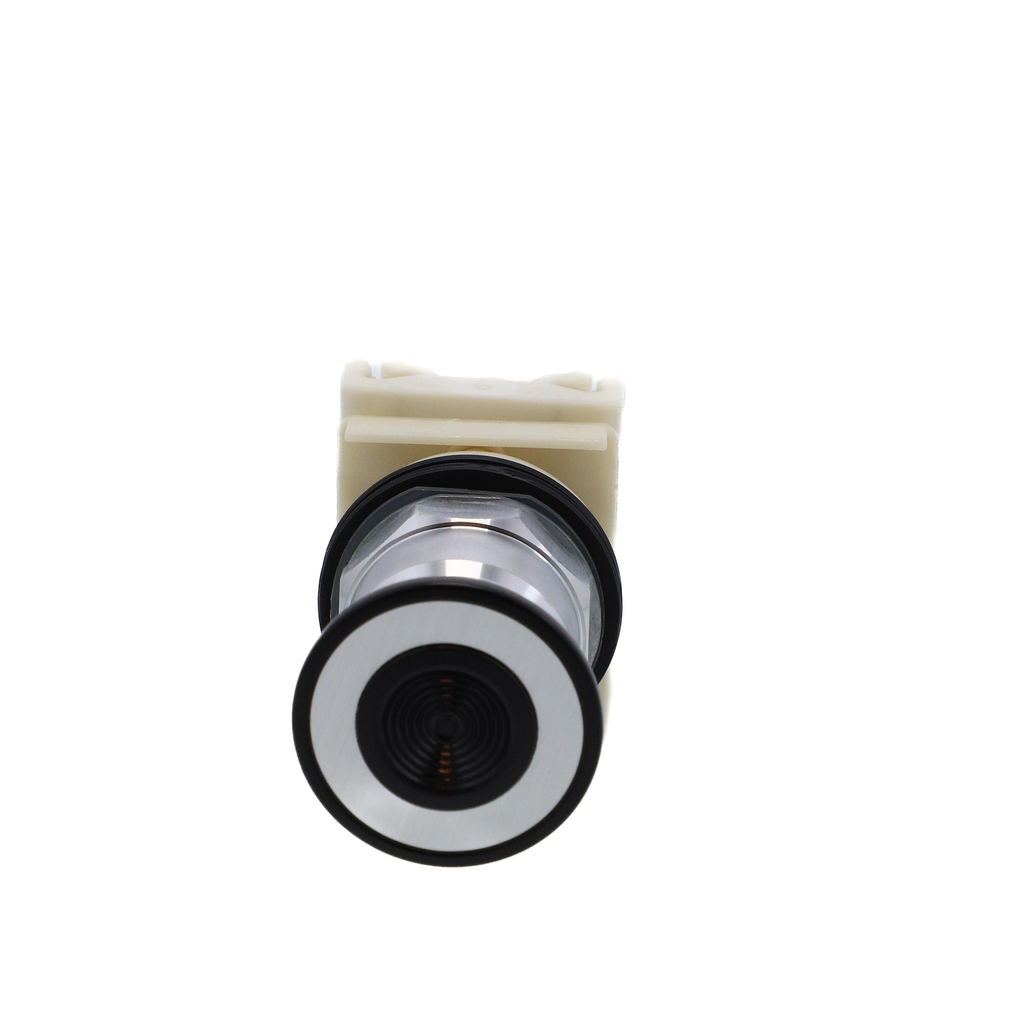

This head for spring return push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
- Specifications
- Operator Additional Information : screw-on plastic
- Range Of Product : Harmony 9001K
- Operator Profile : flush
- Product Or Component Type : head for illuminated push-button
- Device Short Name : 9001K
- Complementary
- [Us] Rated Supply Voltage : 110...120 V
- Contacts Type And Composition : without contact block
- Bezel Material : metal
- Operator Position Information : 3 positions
- Mounting Diameter : 30 mm
- Type Of Operator : spring return
- Light Block Supply : via integral transformer
- Operator Profile : mushroom Ø 41 mm
- Type Of Operator : pull : spring return, center : stay put, push : spring return
- Shape Of Signaling Unit Head : round
- Cap/Operator Or Lens Colour : green
- Offer Sustainability
- China Rohs Regulation : X
- Circularity Profile : N/A
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP121006EN
- Sustainable Offer Status : Green Premium product
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
