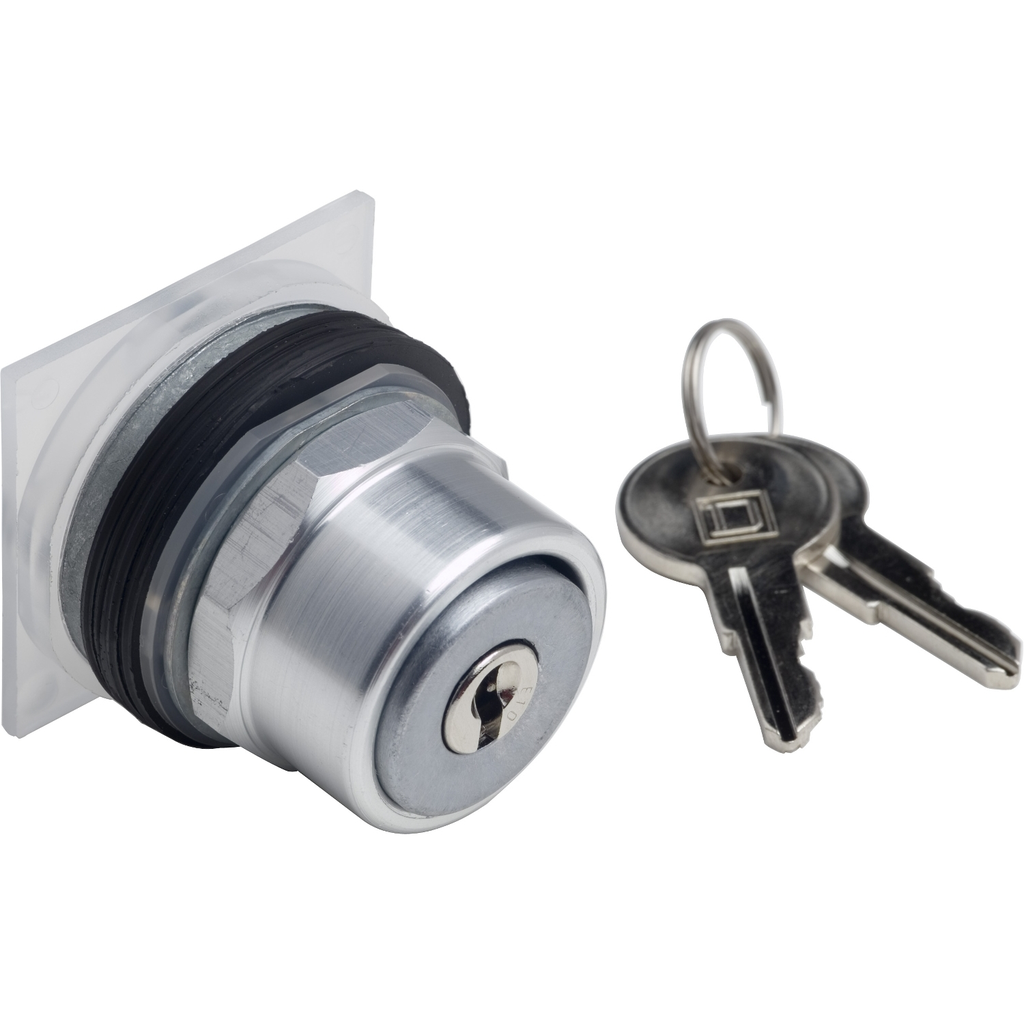

Head for key operated pushbutton, Harmony 9001K, metal, key switch, 30mm, key E10, extended position, stay put

SQD 9001KR131 PUSHBUTTON OPERA

SQD9001KR131 9001KR131 785901260493
138.65 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Warranty Length: 18 mth
This flush push-button with full guard provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
QTY
  • Product Description
  • Specifications
This flush push-button with full guard provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
  • Complementary
    • Contacts Type And Composition : without contact block
    • Key Number : E10
    • Bezel Material : metal
    • Operator Position Information : extended position
    • Mounting Diameter : 30 mm
    • Type Of Operator : spring return
    • Operator Profile : key switch
    • Type Of Operator : stay put
    • Shape Of Signaling Unit Head : round
  • Specifications
    • Range Of Product : Harmony 9001K
    • Operator Profile : flush
    • Product Or Component Type : head for key-operated pushbutton
    • Device Short Name : 9001K
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Contractual warranty
    • Warranty : 18 months
