Illuminated push-button head, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 2 positions, push-pull, LED green, 120V

PUSHBUTTON OPERATOR 30MM TYPE

SQD9001KR9P38LGG 9001KR9P38LGG 785901058076
291.29 / EACH
http://schema.org/OutOfStock

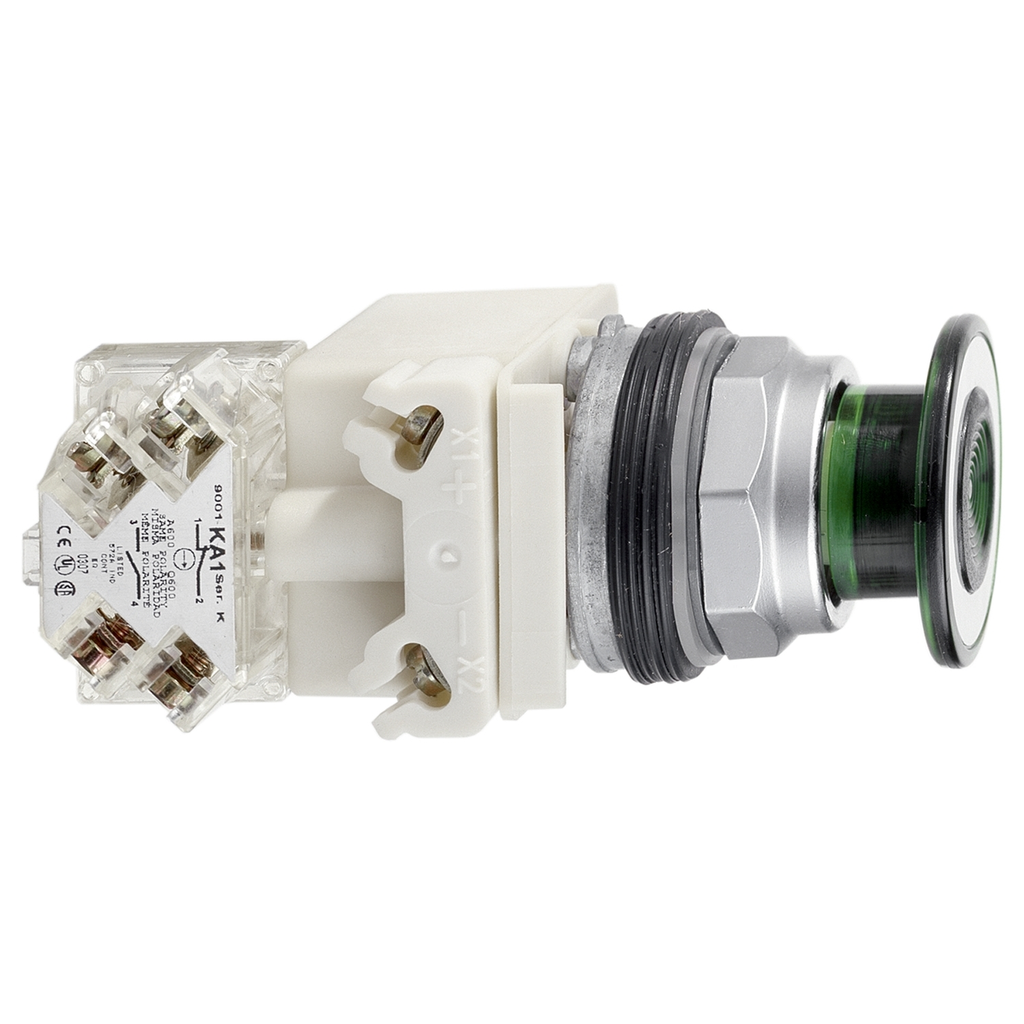

Mayer-DDS-Illuminated push-button head, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 2 positions, push-pull, LED green, 120V-1
  • Bezel Material: Metal
  • Warranty Length: 18 mth
This Harmony 9001K product, is an illuminated mushroom head for metal pushbutton, with an incandescent BA 9s bulb. It is supplied with 120 V. It has 2 positions and operates with a push-pull mechanism. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. This metal pushbutton features a 41mm diameter green unmarked mushroom head. It complies with UL 508 and NEMA certifications, and many standards such as EN/IEC 60947-5-1, JIS C 852, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, and CSA C22.2 No 14. A dedicated contact block needs to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K product, is an illuminated mushroom head for metal pushbutton, with an incandescent BA 9s bulb. It is supplied with 120 V. It has 2 positions and operates with a push-pull mechanism. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. This metal pushbutton features a 41mm diameter green unmarked mushroom head. It complies with UL 508 and NEMA certifications, and many standards such as EN/IEC 60947-5-1, JIS C 852, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, and CSA C22.2 No 14. A dedicated contact block needs to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • US Rated Supply Voltage : 120 V AC/DC, 120 V AC/DC, 120 V AC/DC, 120 V AC/DC
  • Important Information Attributes
    • Electrical Shock Protection Class : class II conforming to IEC 60536, class II conforming to IEC 60536
    • Operator Profile : green mushroom Ø 41 mm, unmarked, green mushroom Ø 41 mm, unmarked, green mushroom Ø 41 mm, unmarked
    • Overvoltage Category : class II conforming to IEC 60536, class II conforming to IEC 60536
    • Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Light Block Supply : direct
    • Light Source : incandescent
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 226.796 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : stay put
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
